Warn M8274-S 12v 10000lb High Mount Winch with Synthetic Rope

by Warn
SKU M8274-70-106175
Save $400.00 Save $400.00
Original price $5,999.00
Original price $5,999.00 - Original price $5,999.00
Original price $5,999.00
Current price $5,599.00
$5,599.00 - $5,599.00
Current price $5,599.00
4x4 Down Under Buy Now Pay Later Options
    WHY SHOP WITH US?
  • Fast Shipping with Free Insurance
  • Australian Owned and Operated
  • Expert Before & After Sales Service
  • Easy Returns & Full Warranty Support

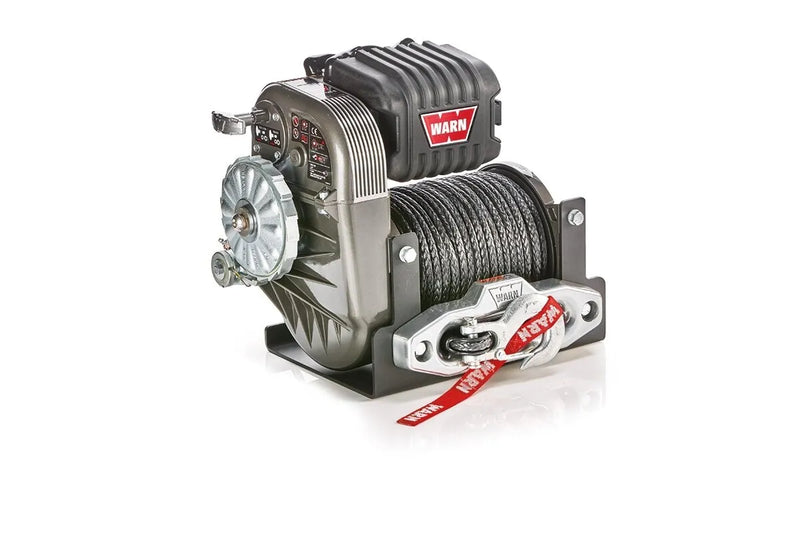

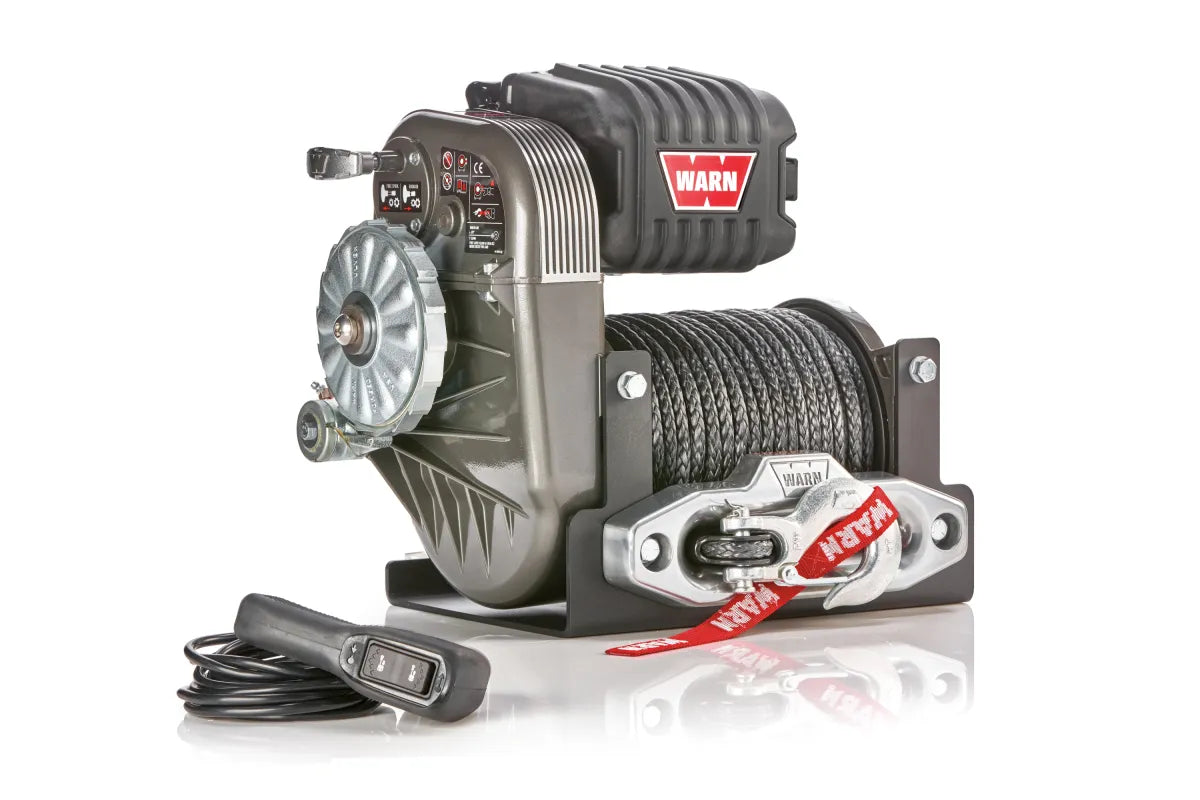

M8274-S High Mount 10,000lb 12v Winch with Spydura Synthetic Rope by Warn

Fastest line speed. Longest synthetic rope. Legendary performance.

One of the fastest winches on the market, the M8274 has a reputation that truly precedes it. This is the latest generation M8274, which means Warn took their most iconic winch and added more performance and more features. It is still the fastest of any WARN winch and has the longest rope length (45m/150ft), but now with even more power courtesy of a 6hp motor, a 10,000 lb. capacity, contactor control, and available Spydura synthetic rope. The legend continues.

The M8274 maintains all the things buyers love about the product: speed, durability, and its famous shape, but they’ve added more performance and more features. It comes with 45 meters of 3/8” diameter lightweight, easy-to-handle Spydura synthetic rope.

  • Rugged spur-gear drive train and unique upright design
  • Automatic disc braking system delivers smooth operation with superior heat dissipation

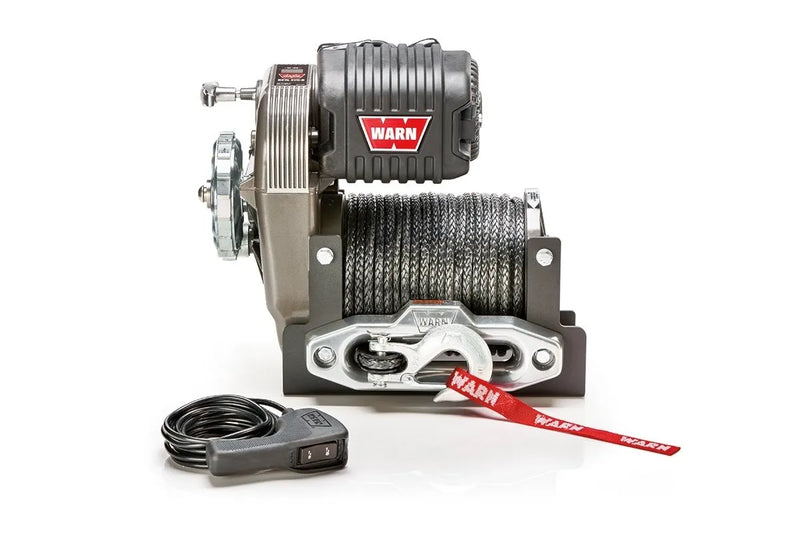

  • Roller fairlead, remote control, free spool clutch, and battery cables are included.

FEATURES

  • High-output 6 HP motor for increased 10,000 lb. pulling capacity (up from 8,000 lbs.)—ideal for today’s larger, heavier vehicles
  • IP68 waterproof Albright electrical contactor for the ultimate in reliability and control
  • Restyled high-strength polymer control pack housing for a modern twist on classic styling
  • Ergonomic stainless steel clutch T-handle is easier to use than before
  • Two Oilite® bushings installed on pinion gear assembly for improved durability in extreme recovery conditions
  • Bolt-and-washer assembly replaces retaining ring on brake shaft
  • Made in the USA in Clackamas, Oregon

Warn M8274-S Winch Specifications

Part Number: M8274-70-106175
Rated Line Pull: 10,000 lbs. (4536 kg) single-line
Motor: 12V DC, 6HP Series Wound
Electrical Control: Contactor
Remote control: Remote switch, 12’ (3.7m) lead
Geartrain: 3-stage Spur Gear
Gear ratio: 134:1
Clutch (freespooling): Sliding motor pinion gear
Brake: Automatic disc type

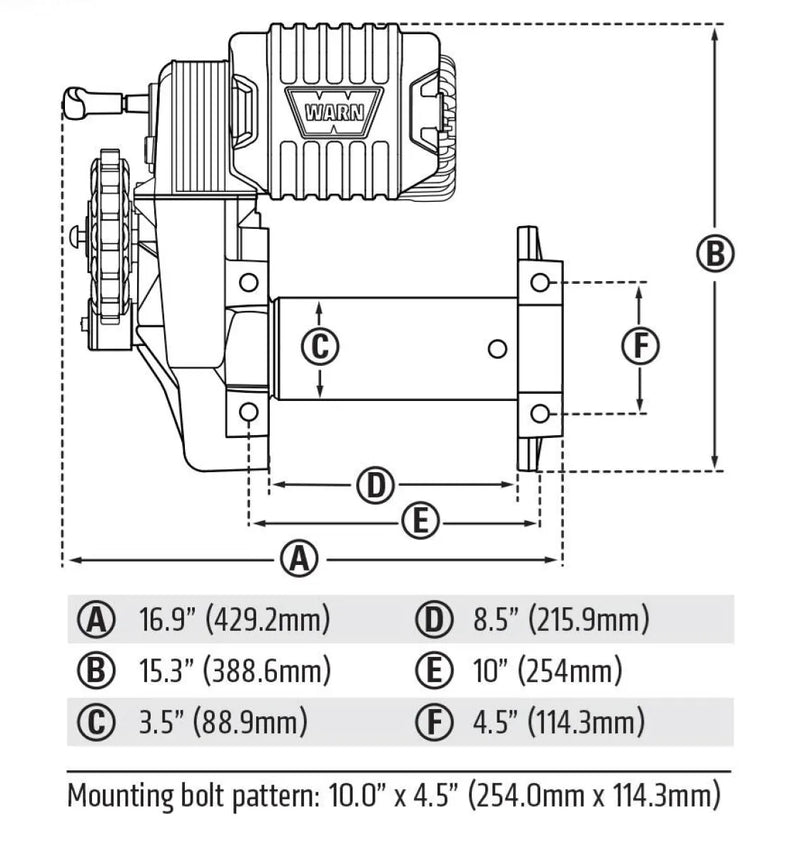

Drum Diameter/Length: 3.5”/8.5” (9cm/22cm)
Mounting Bolt Pattern: 254mm x 114.3mm
Synthetic rope: 9.5mm x 45M (3/8″ x 150′)
Fairlead: Forged Hawse Fairlead
Recommended battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 in. (1.83m)
Finish: Powder coat with clear coat
Weight: 90lb (40.8kg)
Warranty: Limited Lifetime Mechanical Warranty with 7 Year Electrical Warranty)
