Warn 2000DC 12V Utility Winch with 10.7M Steel Cable | 2,000lb

by Warn
SKU DC2000-92000
Original price $0
Original price $335.00 - Original price $335.00
Original price
Current price $335.00
$335.00 - $335.00
Current price $335.00
Please enter your postcode.
Please check postcode.

Getting available shipping rates...

No rates found. Please contact us for a quote.
4x4 Down Under Buy Now Pay Later Options
    WHY SHOP WITH US?
  • Fast Shipping with Free Insurance
  • Australian Owned and Operated
  • Expert Before & After Sales Service
  • Easy Returns & Full Warranty Support

The 2000DC - A compact utility 2,000lb winch packed with full-sized features by Warn

Although this winch might be smaller in size, it’s big on value. The WARN 2000 DC Utility Winch has all of the features you’ll want, and its small size allows it to be mounted in tight spots. Designed to pull lighter loads, this winch will help you move more material in less time.

2000 DC SPECIFICATIONS

  • Part Number: PN 92000
  • Rated Line Pull: 2,000 lbs. / 907 kgs
  • Motor: Permanent Magnet
  • Switch Type: Remote Control
  • Brake: Self-locking gear train (Rated Load Holding)
  • Wire Rope: 3/16" X 35' (10.7 m)
  • HP: 1.6 HP 3.0"
  • Power: 12 volt DC
  • Gear Train: Split Ring Gear
  • Clutch: Knob, pull and turn
  • Drum Diameter: 1-1/4 in. (3.18 cm)
  • Fairlead: Hawse
  • Hole Pattern: 2 Holes on 3.1" (7.87 cm) center
  • Gear Ratio: 153:1
  • Electrical Leads: 2 - 6' (1.8 m)
  • Weight: 18 lbs. (8.2 kg.)
  • Warranty: 1 year limited

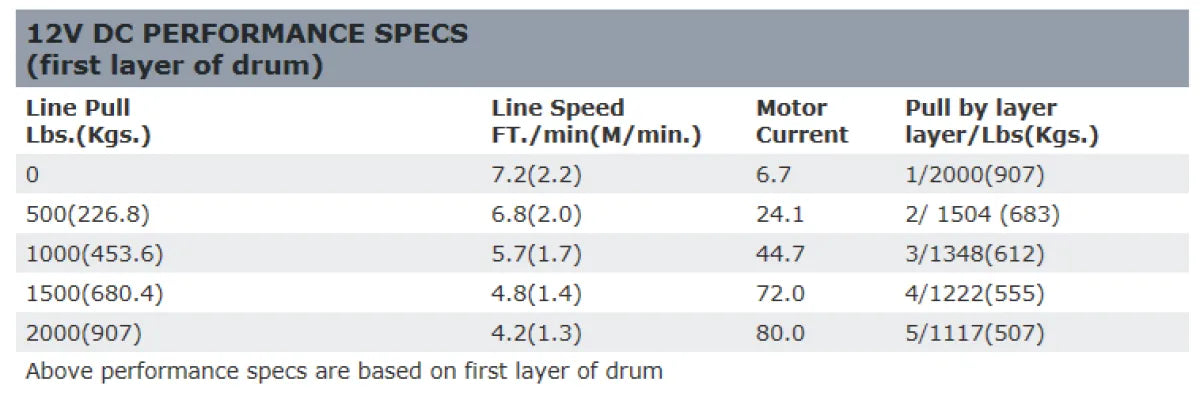

12V DC PERFORMANCE SPECIFICATIONS (FIRST LAYER OF DRUM)

Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 7.2(2.2) 6.7 1/2000(907)
500(226.8) 6.8(2.0) 24.1 2/ 1504 (683)
1000(453.6) 5.7(1.7) 44.7 3/1348(612)
1500(680.4) 4.8(1.4) 72.0 4/1222(555)
2000(907) 4.2(1.3) 80.0 5/1117(507)

Above performance specs are based on first layer of drum.
