Safari 4x4 Snorkel Kit for Mitsubishi Triton (07/2006 - 04/2015) | SS661HF

SKU SS661HF
Original price $629.00 - Original price $629.00
Original price
$629.00
$629.00 - $629.00
Current price $629.00
4x4 Down Under Buy Now Pay Later Options
    WHY SHOP WITH US?
  • Fast Shipping with Free Insurance
  • Australian Owned and Operated
  • Expert Before & After Sales Service
  • Easy Returns & Full Warranty Support

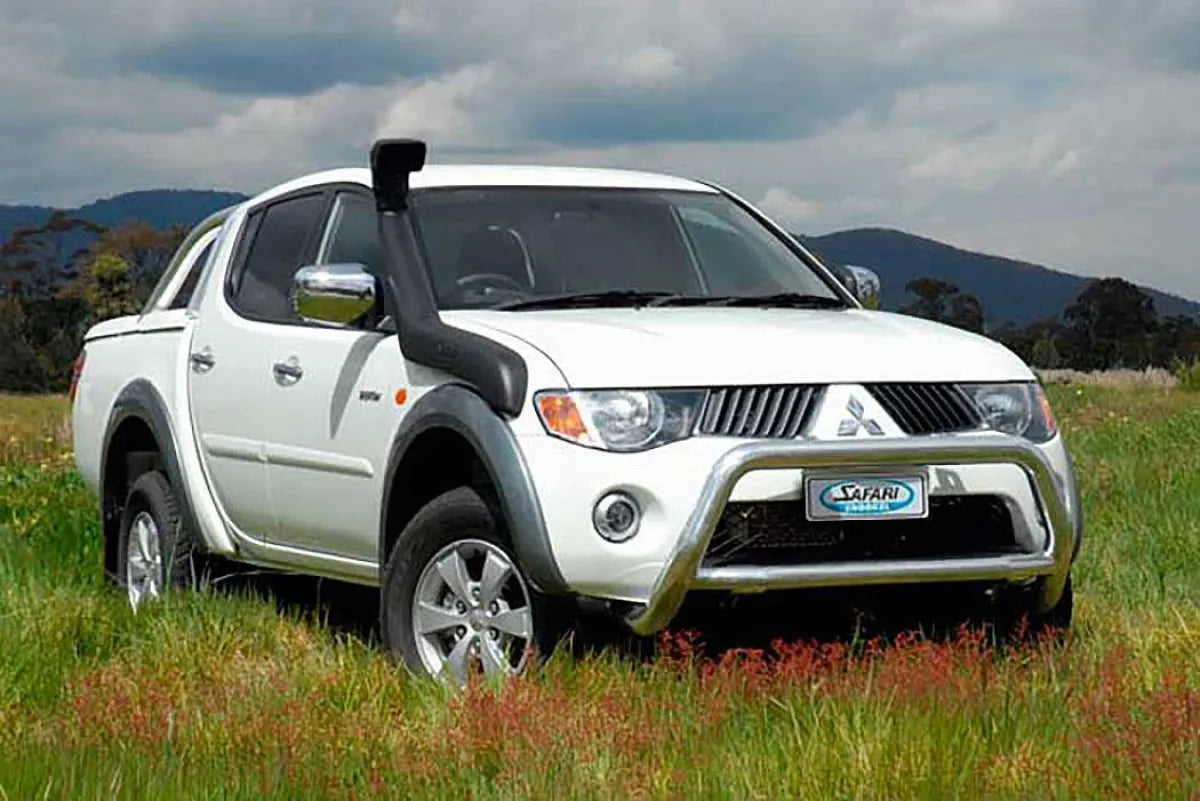

Safari Snorkel Kit Designed for Mitsubishi Triton (07/2006 - 04/2015)

The SS661HF Mitsubishi Triton 4x4 Snorkel Kit is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of ML 3.2L Diesel and MN 2.5L Diesel engines.

With the huge air flow demands of each engine in the Mitsubishi ML 3.2L Diesel Triton, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel Mitsubishi Triton design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Mitsubishi Triton 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Mitsubishi Triton snorkel breezes through the toughest off-road conditions on the planet.

FEATURES

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your ML 3.2L Diesel & MN 2.5L Diesel engines
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Mitsubishi Triton 4WD Snorkel fitting guide with an accurate template for assisting with installation.
Safari V-Spec snorkels are the traditional Safari Snorkel range.
  • Manufactured in Australia from Safari’s own Industrial Spec UV Stabilised Polyethylene
  • They look identical to the current versions of the Safari Snorkel
  • They have a Life Time warranty*
  • They primarily suit current model vehicles.
Safari Snorkel Kit - V-SPEC. ML & MN series. Only fits 4M41 / 4D56 engines.



SAFARI 4X4 SNORKEL KIT INSTALLATION GUIDE

Specifications

  • Fits vehicle year to: 2015
  • Fits vehicle year to month: 04
  • Fits vehicle year from: 2006
  • Fits vehicle year from month: 07
  • Model: SS661HF
  • Material type: UV Stabilised Polyethylene
  • Style: V-SPEC
  • Fitment side: Drivers Side
  • Fitting time approx: 3 Hr

VEHICLES

Make Model Series Year From Year To Body Engine Engine Capacity Variant Drivetrain Cylinders
MITSUBISHI TRITON ML 2006 2015 Cab Chassis 4M41 3.2L GLX Manual 4
MITSUBISHI TRITON ML 2006 2015 Ute 4M41 3.2L GLX, GLX-R/VR, GLS Manual 4
MITSUBISHI TRITON ML; MN 2006 2015 Ute 4M41 3.2L DI-D 4
MITSUBISHI TRITON ML; MN 2006 2015 Cab Chassis 4M41 3.2L DI-D 4
MITSUBISHI TRITON ML 2006 2015 Ute 4M41 3.2L GLX, GLX-R, GLS Auto 4
MITSUBISHI TRITON ML 2006 2015 Cab Chassis 4M41 3.2L GLX Auto/Manual 4
MITSUBISHI TRITON ML 2006 2015 Ute 4M41 3.2L GLX, GLX-R/VR Manual 4
MITSUBISHI TRITON ML 2006 2015 Ute 4M41 3.2L GLX, GLX-R, GLS Auto 4
MITSUBISHI TRITON MN 2006 2015 Ute 4D56T 2.5L GL-R, GLX-R, ACTIV Manual 4
MITSUBISHI TRITON MN 2006 2015 Ute 4D56T 2.5L GL-R, ACTIV Auto 4
MITSUBISHI TRITON MN 2006 2015 Ute 4D56T 2.5L GLS, GLX-R Auto 4
MITSUBISHI TRITON MN 2006 2015 Ute 4D56T 2.5L GLX Manual 4
MITSUBISHI TRITON MN 2006 2015 Cab Chassis 4D56T 2.5L GL, GLX 4
MITSUBISHI TRITON MN 2006 2015 Cab Chassis 4D56T 2.5L GL, GLX 4

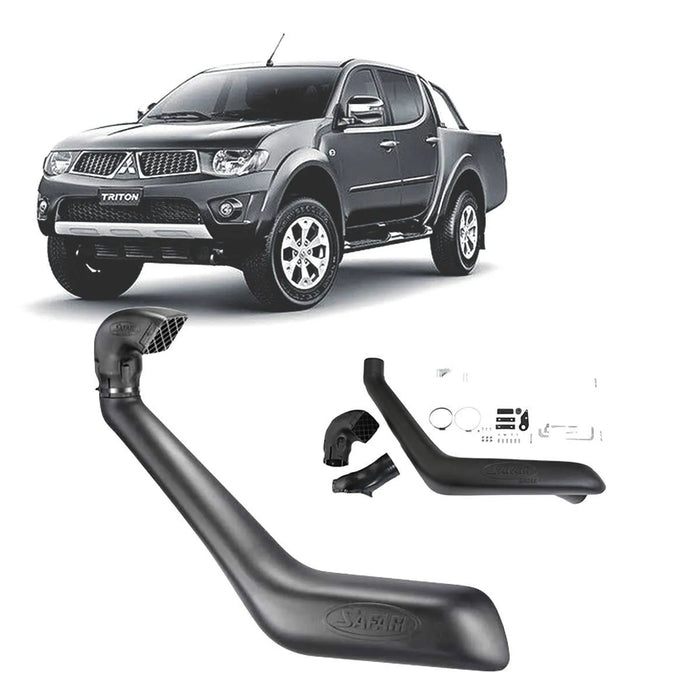

PARTS LIST

Mitsubishi Triton 4WD Snorkel for ML 3.2L Diesel Models - Safari Automotive Mitsubishi Triton 4x4 Snorkel Part Number SS661HF

ITEM PART NO.
DESCRIPTION
QTY
1 525-133-000 BODY - SNORKEL (SS660HF) 1
2 000-135-800 3 ½" AIR RAM ASSEMBLY 1
3 525-032-000 BRACKET - UPPER MOUNTING 1
4 000-002-100 BOLT - HEX - 6mm x 1.0 x 14mm (SEMS) 3
5 000-951 SCREW - S/T - 4.2mm x 13mm 3
6 000-960 INSERT - PLASTIC 3
7 000-110 STUD - S/S - 8mm x 1.25 x 25mm O/L 8
8 000-352 WASHER - BODY - 8mm x 45mm - S/S 4
9 000-311-300 WASHER - BODY - 8.5mm x 32mm - S/S 4
10 000-205-300 NUT - NYLOC - 8mm x 1.25 - S/S 8
11 525-024-200 HOSE - AIR ENTRY 1
12 525-023-200 ADAPTOR - AIR CLEANER 1
13 000-958-300 POP RIVET - 4.8mm x 12mm 3
14 000-909 CLAMP - HOSE - 80/100mm 2
15 525-098-200 BOTTLE - RADIATOR OVERFLOW - PLASTIC 1
16 525-098-300 CAP - OVERFLOW BOTTLE - 38mm ID - WHITE 1
17 525-096-000 BRACKET - OVERFLOW BOTTLE MOUNTING 2
18 000-1018-300 BOLT - B/H - 5mm x 0.8 x 8mm - S/S 2
19 000-951-500 SCREW - S/T - 4.8mm x 16mm 2
20 000-917-100 CLAMP - SPRING - 5/16" 1
21 000-530 ADAPTOR - HOSE - 8mm/8mm 1
22 000-838-035 HOSE - RADIATOR OVERFLOW EXTENSION 1
23 000-987-100 CABLE TIE - 2.5mm x 100mm 3
24 000-914/B CLAMP - HOSE - SIZE 56 (BLACK) 1
25 525-017-000 TEMPLATE - SNORKEL BODY 1
