Runva EWV12000 Ultimate 12V Winch with Synthetic Rope

by Runva
SKU EWV1200012VD
Original price $0
Original price $969.00 - Original price $969.00
Original price
Current price $969.00
$969.00 - $969.00
Current price $969.00
loading
Free Metro Shipping! 🚚
Please enter your postcode.
Please check postcode.

Getting available shipping rates...

No rates found. Please contact us for a quote.
4x4 Down Under Buy Now Pay Later Options
    WHY SHOP WITH US?
  • Fast Shipping with Free Insurance
  • Australian Owned and Operated
  • Expert Before & After Sales Service
  • Easy Returns & Full Warranty Support

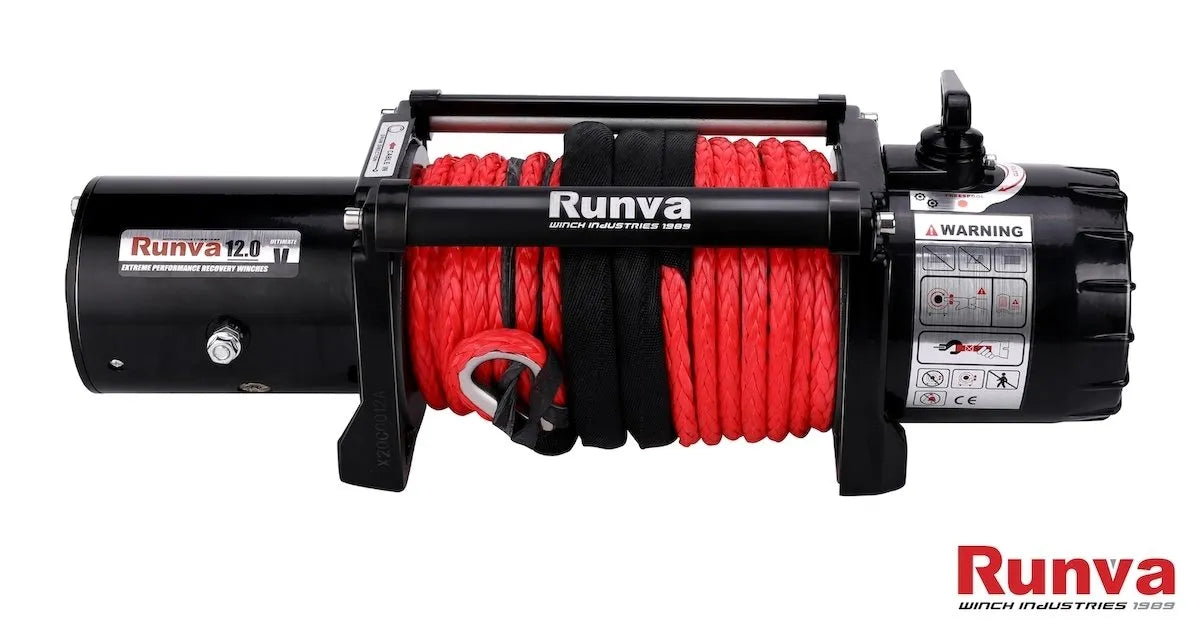

EWV12000 ULTIMATE 12V 12,000lb 4x4 Winch with Synthetic Rope by Runva

Runva's EWV12000 Ultimate 12v 12000lb (5,443kg) Winch is the latest Australian winch release from the iconic brand that brought you the 11XP and 13XP Premium models.

As most know the Runva brand is synonymous in the 4WD community with reliability, power and quality. The EWV12000 is no different. Following in the footsteps of its predecessors it comes with precision engineered mechanics, including an integrated gearbox and braking system, and over five tons of line pull capacity.

Fully IP67 Rated - Dust, Dirt & Waterproof

The entire EWV12000 winch is IP67 rated, meaning it's almost entirely dust, dirt and water proof. Read more about IP ratings in the FAQ tab.

Extreme Braking Power

The EWV12000 gearbox features Runva's highly advanced Ratchet braking system, which excels in efficiency and brake reliability. This cutting-edge technology is identical to the brake utilised in Runva's vertical lifting winch. And unlike traditional brake systems that rely on brake pads that can wear out over time, Runva's brake is designed to provide unparalleled longevity.

Due to its compact design, the EWV12000 Ultimate is the ideal winch for most 4WD vehicles as it will fit into almost any winch bar.

This winch kit includes everything required for a standard winch installation (instructions included).

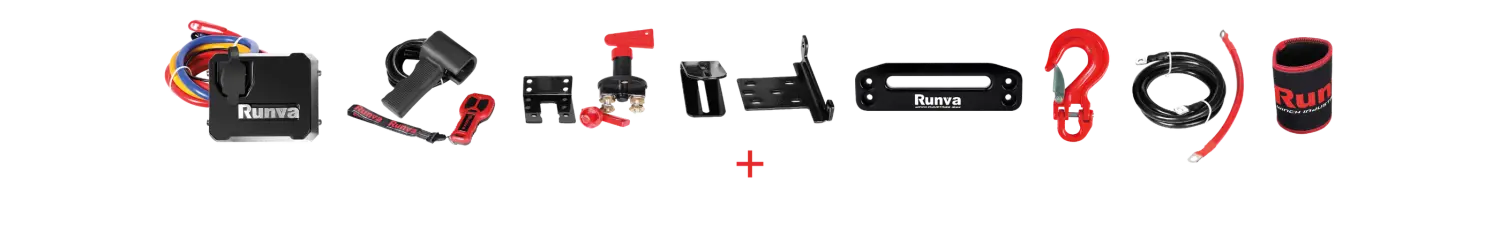

What's Included

  • Winch With Synthetic Rope
  • Control Box With Power Cables + Multiple Brackets For Easy Fitting
  • Handheld + Wireless Remotes
  • Large Recovery Hook
  • 2-in-1 Hawse Fairlead (Offset + Standard)
  • Power Isolator Switch + Bracket + Power Cable
  • Mounting Bolts

Runva EWV12000 Specifications

  • Rated line pull: 12,000lb (5,443kg)
  • Motor: (12v) 4.0kw/5.4hp
  • Gear Train: full steel 3 stage planetary
  • Gear Ratio: 253:1
  • Clutch Type: sliding ring gear
  • Clutch Handle Position: gearbox can be rotated
  • Brake: automatic ratchet load holding in the gearbox
  • Cable Type: synthetic rope
  • Cable Size: 10mm x 25m
  • Drum Size: 63mm x 223mm
  • Mounting Bolt Pattern: 254mm x 114.3mm

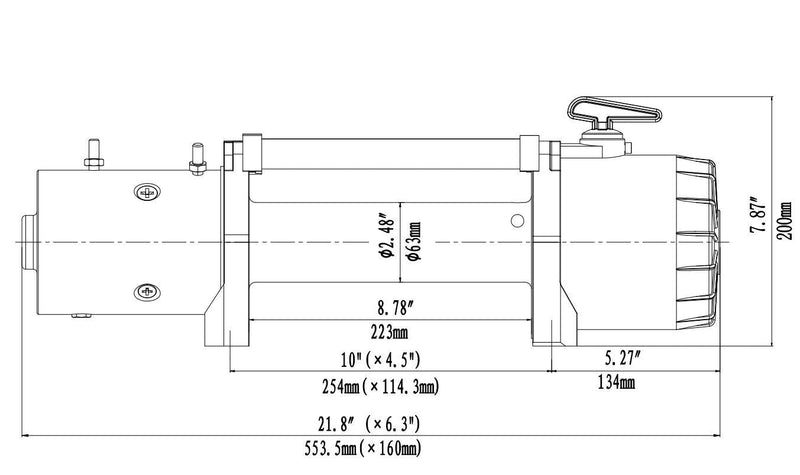

  • Overall Dimensions: 553mm x 160mm x 200mm
  • Remote Control: heavy duty handheld + wireless
  • Battery Leads: 2x 1.8m heavy duty leads
  • Net Weight: 31.4kg
  • Gross Weight: 33.4kg (includes packaging)
  • Shipping Weight: 35.2kg
  • Finish: black powder coat
  • Warranty: limited 5 year electrical and lifetime mechanical warranty

Ideal for most heavy duty 4X4 applications.

Runva EWV12000 Performance

LINE PULL LB (KG) LINE SPEED FT/MIN (M/MIN) MOTOR CURRENT (AMP) LAYER OF CABLE RATED LINE PULL LB (KG) TOTAL ROPE ON DRUM FT (M)
  12V DC 24V DC 12V DC 24V DC
0 29.5 (9.0) 36 (11.0) 60 45 1 12,000 (5,443) 16.1 (4.9)
3,000 (1,361) 13.1 (4.0) 14.8 (4.5) 150 90 2 9,563 (4,338) 36.4 (11.1)
5,000 (2,268) 11.5 (3.5) 12.5 (3.8) 200 120 3 7,948 (3,605) 60.0 (18.3)
9,000 (4,082) 6.2 (1.9) 9.5 (2.9) 310 190 4 6,800 (3,084) 83.7 (25.0)
12,000 (5,443) 4.9 (1.5) 7.9 (2.4) 380 250

NOTE: THE MAXIMUM LINE PULL CAPACITY IS BASED ON THE FIRST LAYER OF CABLE/ROPE.
