Runva EWL9500 12V Winch with Synthetic Rope

by Runva
SKU EWL950012VD
Save $76.00 Save $76.00
Original price $815.00
Original price $815.00 - Original price $815.00
Original price $815.00
Current price $739.00
$739.00 - $739.00
Current price $739.00
loading
Free Metro Shipping! 🚚
4x4 Down Under Buy Now Pay Later Options
    WHY SHOP WITH US?
  • Fast Shipping with Free Insurance
  • Australian Owned and Operated
  • Expert Before & After Sales Service
  • Easy Returns & Full Warranty Support

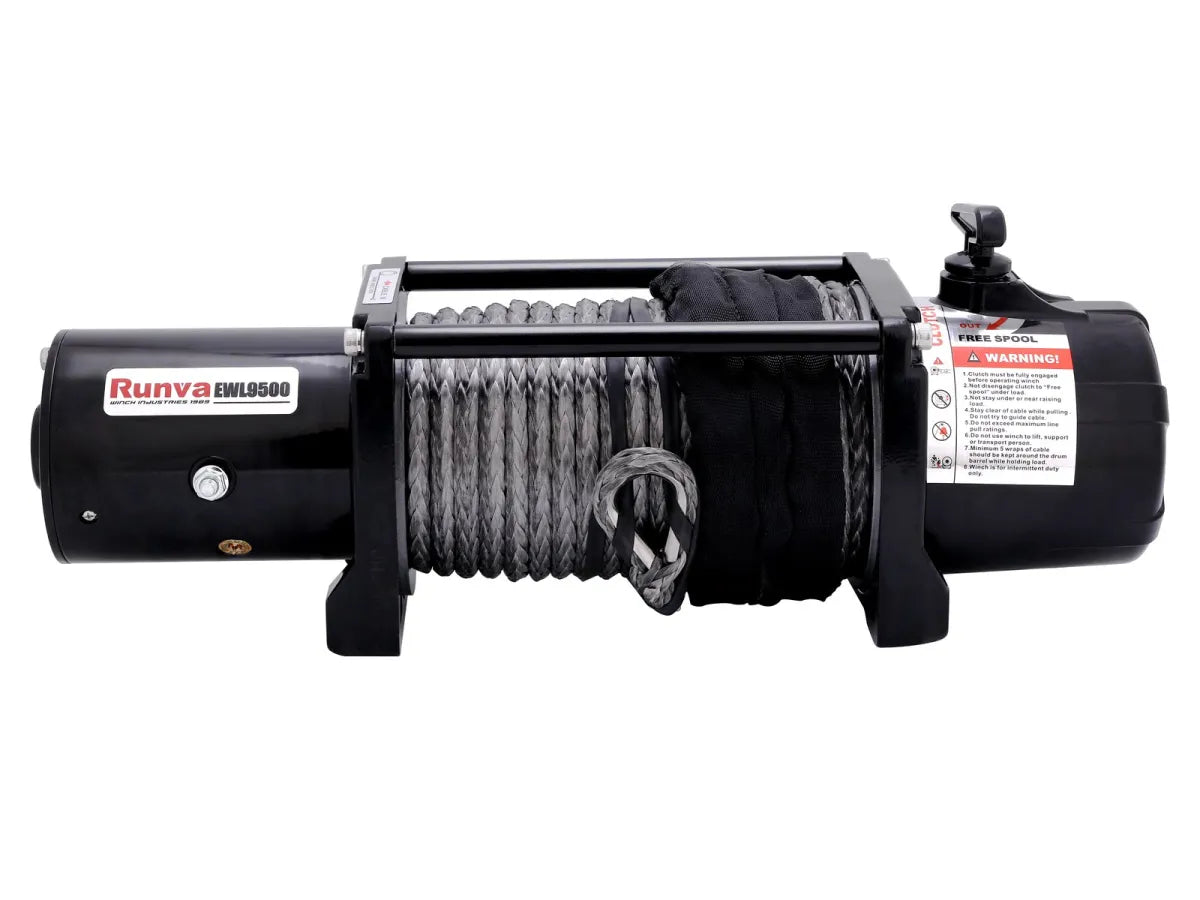

The New EWL9500 12V 9500lb 4x4 Winch with Dyneema Synthetic Rope by Runva

The new Runva EWL9500 12V 4x4 Winch with Dyneema Synthetic Rope is the latest introduction to their awesome range of high quality recovery equipment.

Nothing ruins a decent off road excursion quite like getting stuck without a winch. Make sure you and your vehicle can get out of any bog or over any obstacle with the new Runva EWL9500 12v 4x4x Winch.

This Runva 9500lb (4309kg) 12v winch is the ideal piece of recovery 4x4 equipment for the entry-level outdoor explorer looking for a reliable, affordable and trustworthy winch for their off road vehicle.

The EWL9500 has a screw cone brake system for automated braking. The three-stage, full-steel planetary gearbox has a durable, effective sliding ring gear clutch providing reliable and effective operation.

Runva Winches have a reputation in the market for high-quality products that are reliable and won't let you down. Their winch manufacturing experience spans more than 30 years and they have distributors across more than 50 countries globally.

Runva's warranty support is also excellent. This winch includes a comprehensive 5 year warranty across all electrical components and a limited lifetime warranty across the mechanical components.

Features

  • Free spooling clutch
  • Full metal internal and external design
  • 100% Waterproof competition grade Solenoid
  • 25M Ultra strong Dyneema rope (up to 8 times stronger than steel cable)
  • Winch power in and out via remote
  • Heavy duty series wound motor
  • Powerful winch for heavy loads
  • Limited Lifetime Warranty (5 Years Electrical, Lifetime Mechanical)

This EWL9500 Winch Kit Includes

  • Complete EWL9500 (9500lb/4309kg) Winch with Dyneema Synthetic Rope
  • Control Box with Power Cables + Brackets for Easy Fitting
  • Handheld + Wireless Remotes
  • Large Red Recovery Hook
  • 2-in-1 Aluminium Hawse Fairlead (for standard and offset fitment)
  • Power Isolator Switch + Bracket + Power Cable
  • Mounting Bolts

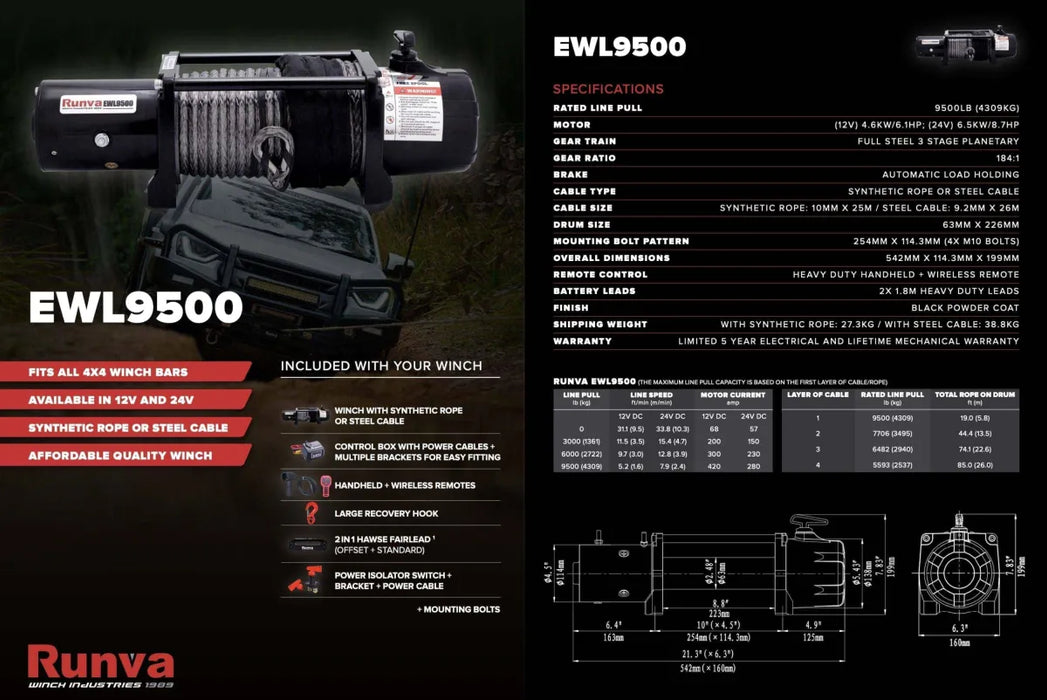

Runva EWL9500 Winch Specifications

  • Rated Line Pull 9500Lb (4309kg)
  • Motor Series Wound (12V) 4.6KW/6.1HP
  • Gear Train Full Steel 3 Stage Planetary
  • Gear Ratio 184:1
  • Brake Automatic Load Holding
  • Cable Type Dyneema Synthetic Rope
  • Cable Size 10MM X 25M
  • Drum Size 63MM X 226MM
  • Mounting Bolt Pattern 254MM X 114.3MM X 199MM

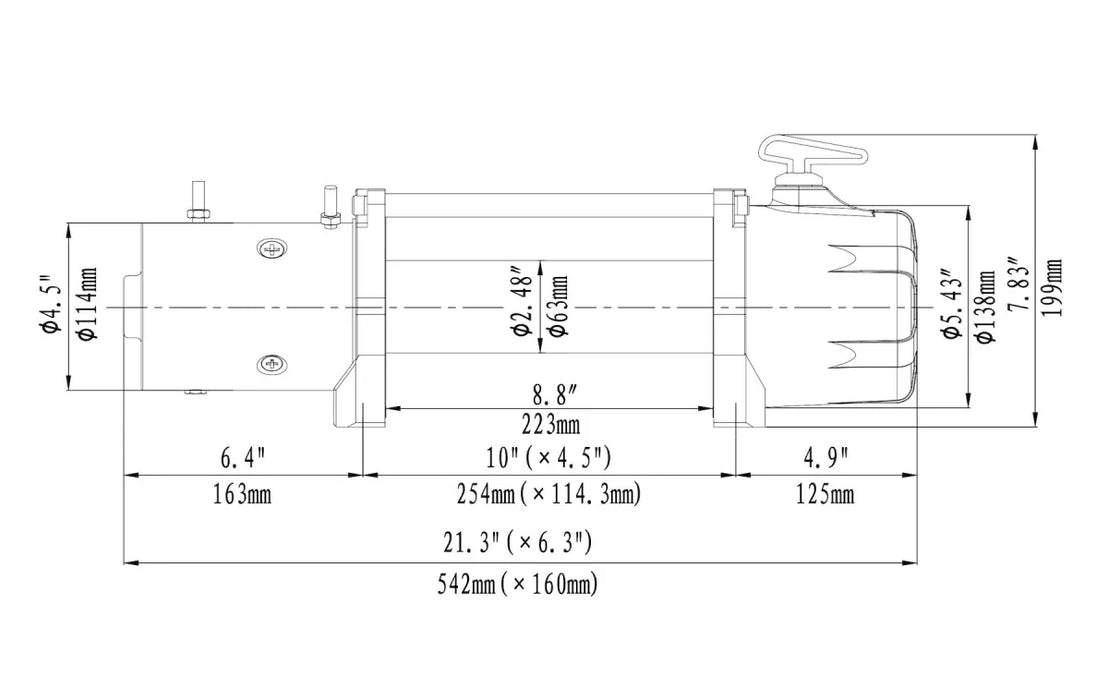

  • Overall Dimensions 542MM X 114.3MM X 199MM
  • 2x Remote Controls 3.7M Heavy Duty Handheld + Wireless Remote
  • Battery Leads 2 X 1.8M Heavy Duty Leads
  • Finish Black Powder Coat
  • Shipping Weight 27.3kg
  • Warranty Limited 5 Year Electrical and Lifetime Mechanical Warranty

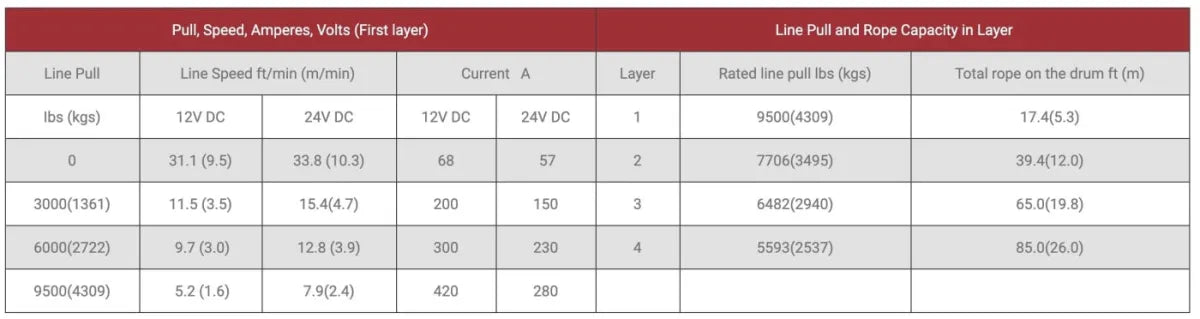

Runva EWL9500 Winch Performance

LINE PULL LB (KG) LINE SPEED FT/MIN (M/MIN) MOTOR CURRENT (AMP) LAYER OF CABLE RATED LINE PULL LB (KG) TOTAL ROPE ON DRUM FT (M)
  12V DC 24V DC 12V DC 24V DC
0 31.1 (9.5) 33.8 (10.3) 68 57 1 9,500 (4,309) 19.0 (5.8)
3,000 (1,361) 11.5 (3.5) 15.4 (4.7) 200 150 2 7,706 (3,495) 44.4 (13.5)
6,000 (2,722) 9.7 (3.0) 12.8 (3.9) 300 230 3 6,482 (2,940) 74.1 (22.6)
9,500 (4,309) 5.2 (1.6) 7.9 (2.4) 420 280 4 5,593 (2,537) 85.0 (26.0)

(THE MAXIMUM LINE PULL CAPACITY IS BASED ON THE FIRST LAYER OF CABLE/ROPE)
