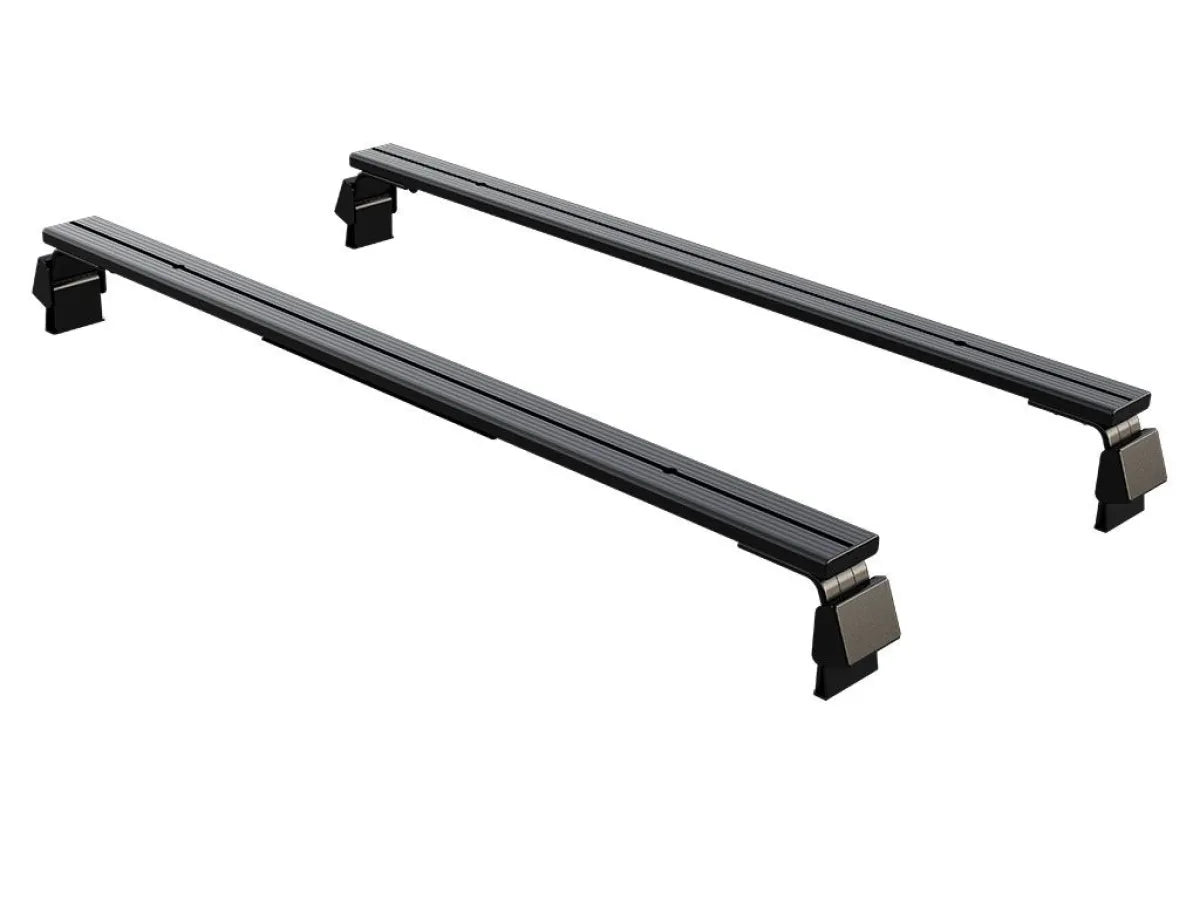

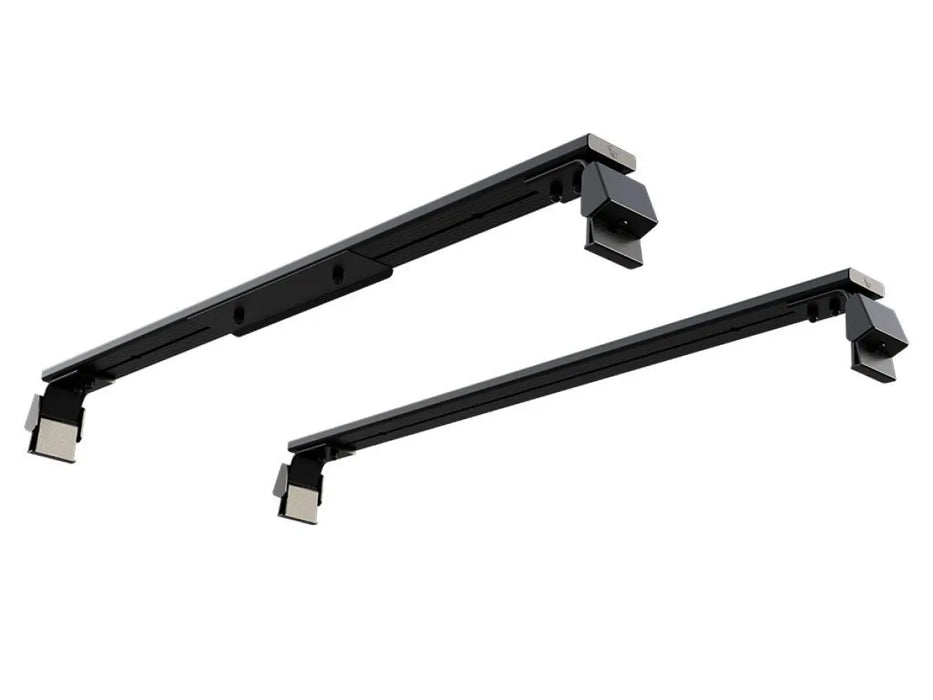

2018 to Current Suzuki Jimny Load Bar Kit by Front Runner
A set of Gutter Mounted Load Bars used to transport gear on the roof of your vehicle when there’s no need for a full Front Runner Roof Rack. This low profile, smaller footprint solution includes 4 130mm Gutter Mount legs, 2 1345mm Load Bars, 1 10mm Roof Load Bar Wind Deflector and fitting instructions - all the components necessary to mount the Front Runner Load Bars to a vehicle with gutters.
You may not have the need for a full roof rack and find that you can get by using a set of Front Runner load bars.
Can be used to mount a Front Runner Roof Top Tent or other accessories where a low profile and smaller footprint is preferred.
The Load Bars are mounted directly to the rain gutters using Gutter Mounted Legs.
Uses the same strong, corrosion free aluminium slats found in Front Runner Slimline II Racks.
The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.
The Load Bars and Gutter Mount Legs can be used in the future as components to build a complete Front Runner Roof Rack.
Made from stainless steel and a durable, weather resistant black powder-coated aluminium.
Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle.
Specifications
Consisting of:
- 2 x LASS102 - No 2 Leg 130mm (Pair) - by Front Runner
- 1 x LBSK015 - Roof Load Bar Pair 1345mm(W) - by Front Runner
- 1 x WDLB001 - Load Bar Wind Deflector / 10mm - by Front Runner
Material used:
- Black epoxy powder-coated T6 aluminium
-
3CR12 Stainless Steel
Approximate Installed Weight: 7kg
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
- Width 205mm (8")
- Length 600mm (24")
- Height 75mm (3")
Shipping Weight:
Weight 8.3kg
