Pro S Series Rapid Anchor Winch Bundle with 83m/108m/218m Rope Chain from Viper
Suit vessel length: 5.7m +

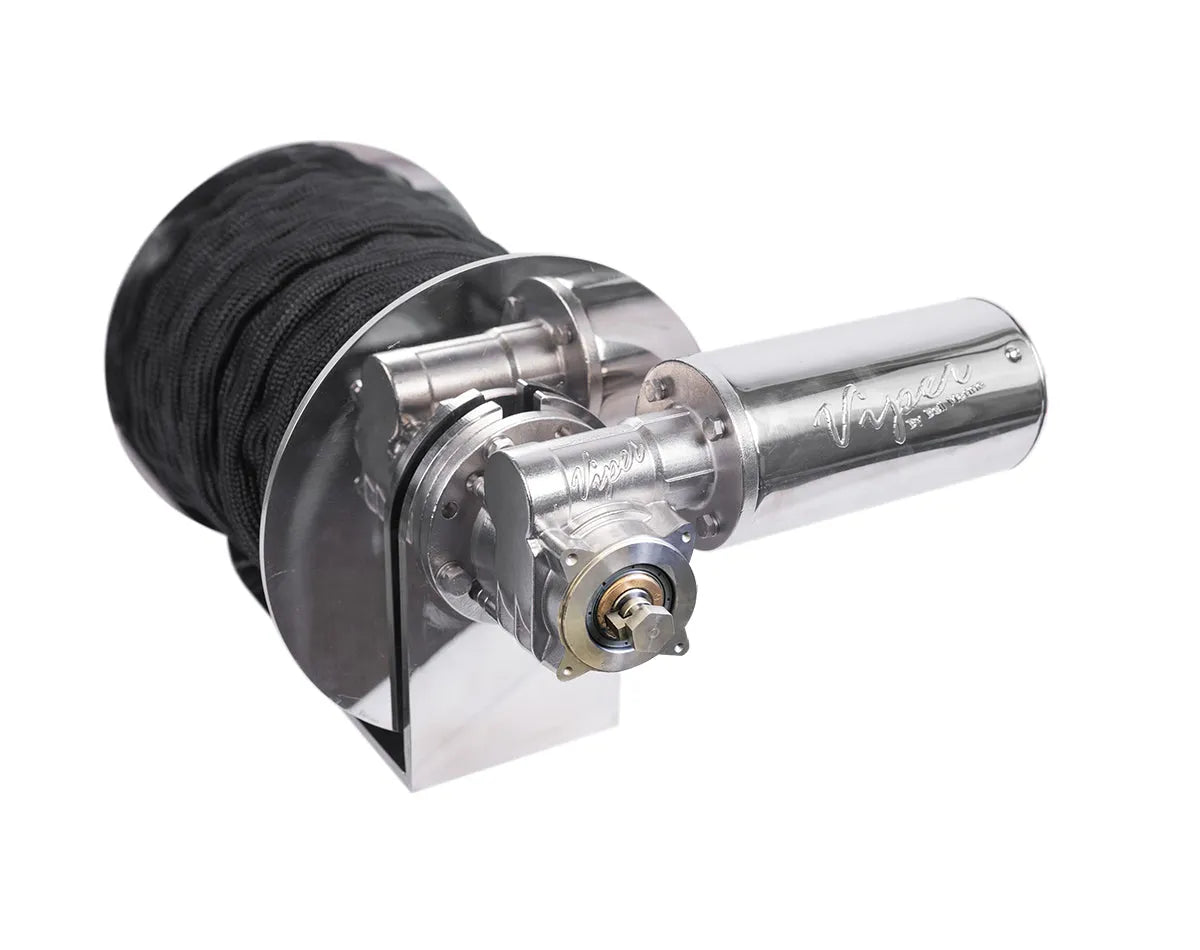

The Viper S Series Anchor Winch features an all-stainless steel construction with a fall rate of 50 meters per minute and retrieval rate of over 45 meters per minute to ensure you get onto your GPS mark, first time, every time!
The Viper 1000W submersible electric motor (hand polished marine 316 grade stainless steel) and the powerful 316-grade stainless steel worm drive gear box has been pressure tested and sealed, making the Viper winches some of the best selling anchor winches in Australia.
With unsurpassed Viper reliability, it has more torque than a conventional drum winch, 3 support bearings hugging a 28mm one piece solid shaft and a 90 degree welded housing bracket which closes up the gap between your drum (preventing rope jams) and does not require any additional guards.
With a life time warranty against water intrusion, and a bullet proof 5-year Viper performance warranty, you can’t go past a Viper.
Supplied with everything you need to install it, including a 5mm stainless steel sandwich plate, all required stainless steel bolts/screws/nylocs/washers, 2 face plates depending on your dash space and even your rope chain and even swivel are included. All you have to add is your own cabling or tinned copper marine wiring looms (see related products), and you'll never have to break your back pulling up your anchor and chain again!
Please note: 1m of 3B&S cables is already attached to the motor and leak tested, so there is no need to remove end caps that are not sealed properly!
Features
- 28mm solid stainless steel shaft with 3 support bearings
- 1000W submersible stainless steel electric motor
- 8mm marine grade 316-grade stainless steel plate, hand polished to a mirror finish
- 316-grade stainless steel marine worm drive gear box
- 360 Degree motor rotation with 16 different positions
- Max fall rate: 50m per minute
- Max retrieval rate: 45m per minute
- Suit vessel length: 5.7m +
- Weight: 17 kgs (winch only)

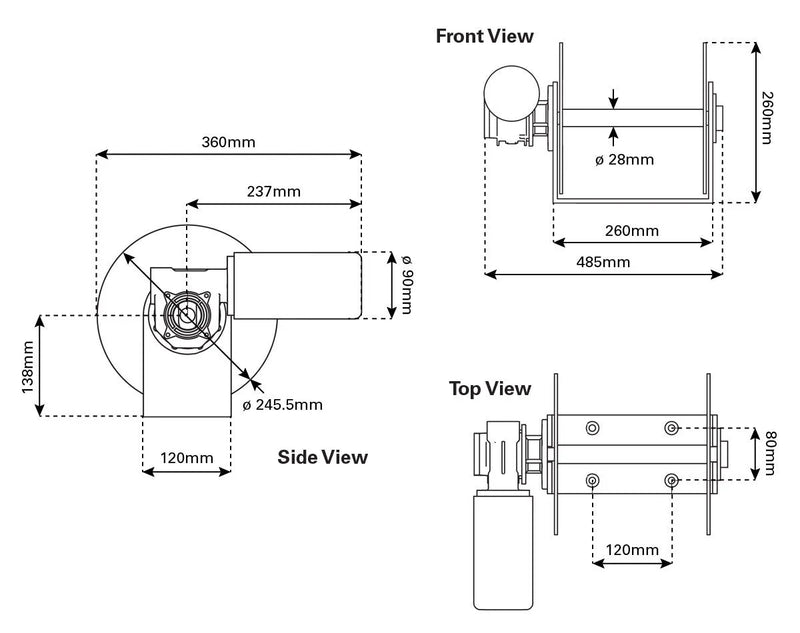

- Well clearance required: 395mm (W) x 410mm (D) x 260mm (H)
- Motor water protection rating: IP68
- 5 Year Manufacturer Warranty

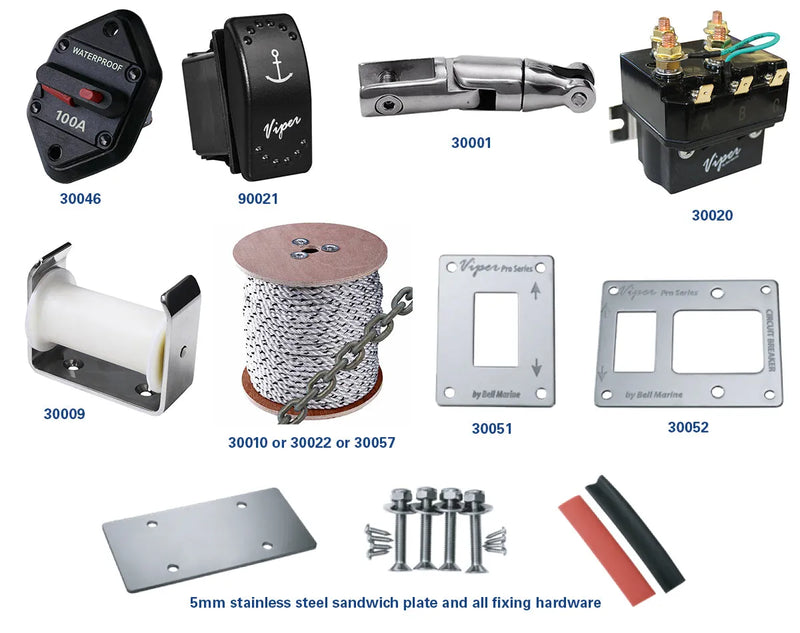

Bundle Inclusion
- 1x Viper Pro S-series 1000 Rapid Winch
- Choice of rope kits
- 75m x 8mm 3 Strand Premium rope
- 100m x 6mm Double Braid rope
- 200m x 5mm 12 Plait Uhmwpe Hi Spec 3000 rope
-
Hi-Spec rope kit also includes: 10m x 8mm 3 Strand Polyester shock cord spiced at both ends
- 8m x 6mm Galvanised short link anchor chain
- 1x Viper pro series anchor swivel - small
- 1x Viper deluxe anchor roller - small
- 1m 3 B&S power leads and joining connectors - pressure tested and sealed
- 200amp reversing solenoid
- LED illuminated marine rocker switch
- Viper laser etched led illuminated switch cover
- 100 amp flush mount circuit breaker with rubber seal
- Single LED switch stainless steel face plate
- Combo LED switch & circuit breaker S/S face plate
- 5mm stainless steel sandwich plate
- All fixing hardware
- Installation notes and wiring diagram
Specifications
| JPW SKU |
Rope |
Shock Cord |
Chain |
Breaking Strain |
| JPW12857 |
75m x 8mm (3 Strand Nylon Premium) |
- none - |
8m x 6mm (Galvanised Short Link) |
1,000 kg |
| JPW12859 |
100m x 6mm (Double Braid Premium) |
- none - |
8m x 6mm (Galvanised Short Link) |
1,000 kg |
| JPW12861 |
200m x 5mm (Hi-Spec 3000)
|
10m x 8mm (3 Strand Polyester) |
8m x 6mm (Galvanised Short Link)
|
2,050 kg |
