Safari ARMAX Snorkel Kit to suit Toyota Landcruiser (01/1990 - 10/2007) | SS70HP

SKU SS70HP
Save $51.00 Save $51.00
Original price $630.00
Original price $630.00 - Original price $630.00
Original price $630.00
Current price $579.00
$579.00 - $579.00
Current price $579.00
4x4 Down Under Buy Now Pay Later Options
    WHY SHOP WITH US?
  • Fast Shipping with Free Insurance
  • Australian Owned and Operated
  • Expert Before & After Sales Service
  • Easy Returns & Full Warranty Support

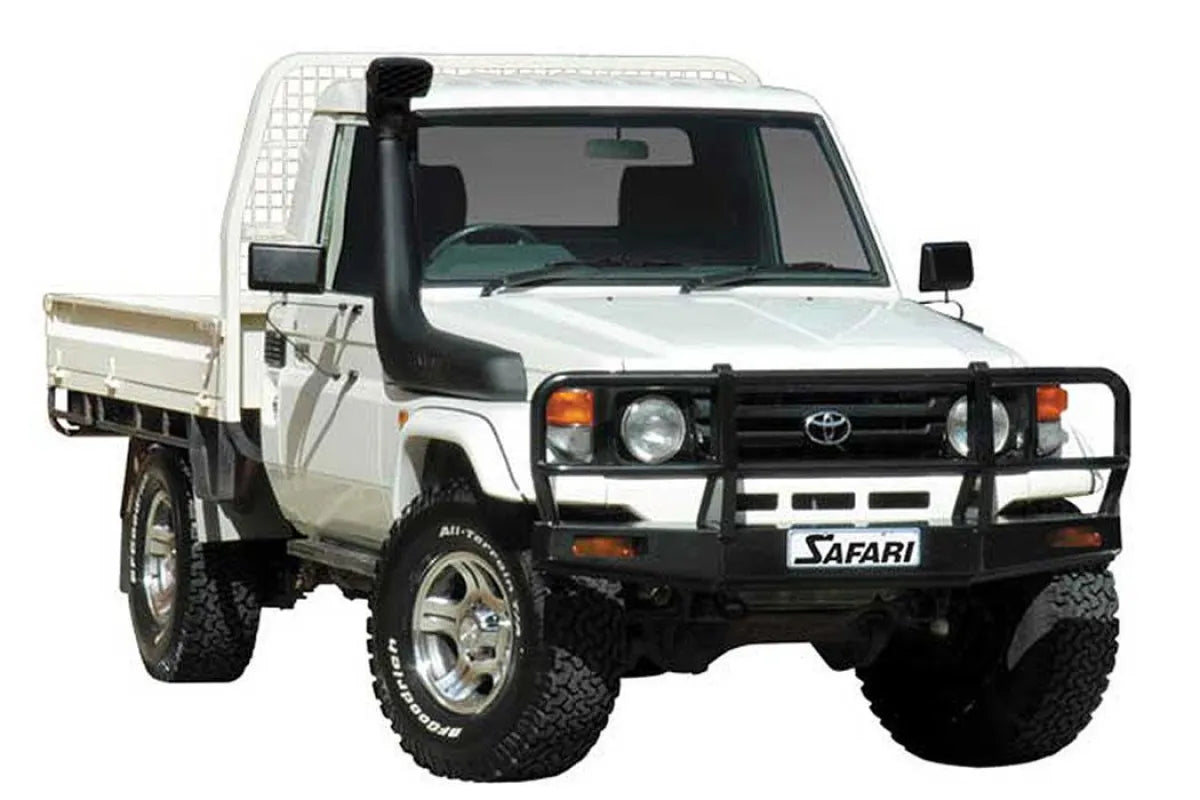

This Safari Snorkel Kit is Designed to suit Toyota Landcruiser (01/1990 - 10/2007)

The SS70HP Safari Snorkel suitable for Toyota 70 Series Land Cruiser 4x4 is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 01/1985-03/2007 Onwards Diesel 1HZ & 1HD-FTE engines.

With the huge air flow demands of each engine in the Toyota 01/1985-03/2007 Onwards 1HZ & 1HD-FTE Diesel 70 Series Land Cruiser, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Snorkel suitable for Toyota 70 Series Land Cruiser 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the snorkel breezes through the toughest off-road conditions on the planet.
These snorkels are all new designs, tested on a custom-built flow bench, to flow 25% to 70% more air than the stock air cleaner housing flows from the vehicle manufacturer, whilst still providing a watertight raised air intake.

The Air Ram is designed to remove the maximum volume of water from the incoming air stream, while delivering the maximum airflow to your vehicle’s engine.

By rotating the air ram to face away from the prevailing wind/direction of motion, the air ram delivers additional protection from the elements.

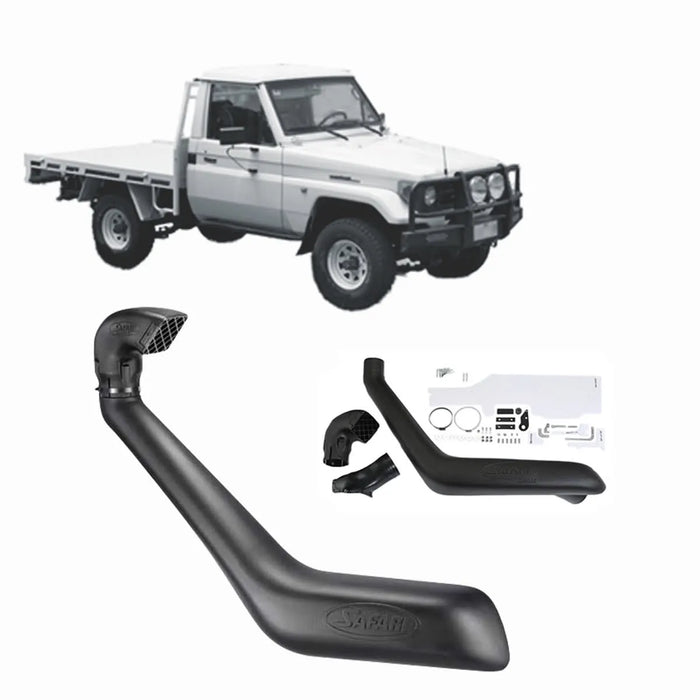

Safari Snorkel Kit - ARMAX. 70 Series with factory snorkel (narrow nose). Only fits 1HZ / 1HD-FTE engines.

Safari Armax Toyota Landcruiser 4x4 Snorkel Features

  • Safari’s own Industrial Spec UV Stabilised Polyethylene
  • Safari’s rounded style Air Ram; however with minimum 4” (101.6mm) neck and an optimised air flow, low restriction grill
  • Design and flow tested by Safari's in house engineers for maximum performance
  • Australian designed, moulded and manufactured
  • Specifically designed to replace the factory snorkel that is proven to not be watertight.
  • Increased airflow for your 01/1985-03/2007 Onwards 4.2L 1HZ & 1HD-FTE Diesel engines
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Snorkel fitting guide suitable for Toyota 70 Series Land Cruiser 4WD with an accurate template for installation.
  • Lifetime Warranty

Specifications

  • Material Type: UV Stabilised Polyethylene
  • Fitment Side: Drivers Side
  • Style: ARMAX
  • Model: SS70HP
  • Fitting Time Approx: 3 Hr

SS70HP Compatible Vehicle

Make Model Series Year From Year To Body Notes Engine Engine Capacity Variant Transmission Cylinders
TOYOTA LANDCRUISER 78 Series 1999 2001 TROOP CARRIER 1H-Z 4.2L HZJ78R MANUAL 6
TOYOTA LANDCRUISER 79 Series 1999 2007 SINGLE CAB 1H-Z 4.2L HZJ79R 6
TOYOTA LANDCRUISER 73 Series 1990 1999 HARD TOP 1H-Z 4.2L HZJ73R MANUAL 6
TOYOTA LANDCRUISER 79 Series 2001 2007 SINGLE CAB 1HD-FTE 4.2L HDJ79R MANUAL 6
TOYOTA LANDCRUISER 75 Series 1990 1999 UTE 1H-Z 4.2L HZJ75R MANUAL 6
TOYOTA LANDCRUISER 78 Series 1990 2007 TROOP CARRIER 1H-Z 4.2L HZJ78R 6
TOYOTA LANDCRUISER 78 Series 1999 2007 TROOP CARRIER 1H-Z 4.2L HZJ78R 6
TOYOTA LANDCRUISER 78 Series 2001 2007 TROOP CARRIER 1HD-FTE 4.2L HDJ78R MANUAL 6
TOYOTA LANDCRUISER 75 Series 1990 1999 HARD TOP 1H-Z 4.2L HZJ75R 6
TOYOTA LANDCRUISER 70 Series 1991 1992 HARD TOP 1H-Z 4.2L HZJ70R MANUAL 6
TOYOTA LANDCRUISER 70 Series 1991 1992 HARD TOP 1H-Z 4.2L HZJ70R MANUAL 6
TOYOTA LANDCRUISER 78 Series 2001 2007 TROOP CARRIER 1HD-FTE 4.2L HDJ78R MANUAL 6
TOYOTA LANDCRUISER 78 Series 2001 2007 WAGON 1HD-FT 4.2L HDJ78R 6
TOYOTA LANDCRUISER 75 Series 1990 1999 UTE 1H-Z 4.2L HZJ75R 6
TOYOTA LANDCRUISER 79 Series 2001 2007 SINGLE CAB 1HD-FTE 4.2L HDJ79R 6
TOYOTA LANDCRUISER 75 Series 1990 1999 HARD TOP 1H-Z 4.2L HZJ75R MANUAL 6
TOYOTA LANDCRUISER 79 Series 1999 2007 SINGLE CAB 1H-Z 4.2L HZJ79R MANUAL 6
TOYOTA LANDCRUISER 79 Series 1990 2007 SINGLE CAB 1H-Z 4.2L HZJ79R 6
TOYOTA LANDCRUISER 79 Series 2001 2007 SINGLE CAB 1HD-FTE 4.2L HDJ79R MANUAL 6
TOYOTA LANDCRUISER 78 Series 1999 2007 TROOP CARRIER 1H-Z 4.2L HZJ78R MANUAL 6



SAFARI 4X4 SNORKEL INSTALLATION GUIDE TOYOTA LANDCRUISER | SS70HP
