Safari ARMAX Snorkel Kit for Toyota Hilux Oct 2015 ON | SS123HP

SKU SS123HP
Original price $589.00 - Original price $589.00
Original price
$589.00
$589.00 - $589.00
Current price $589.00
4x4 Down Under Buy Now Pay Later Options
    WHY SHOP WITH US?
  • Fast Shipping with Free Insurance
  • Australian Owned and Operated
  • Expert Before & After Sales Service
  • Easy Returns & Full Warranty Support

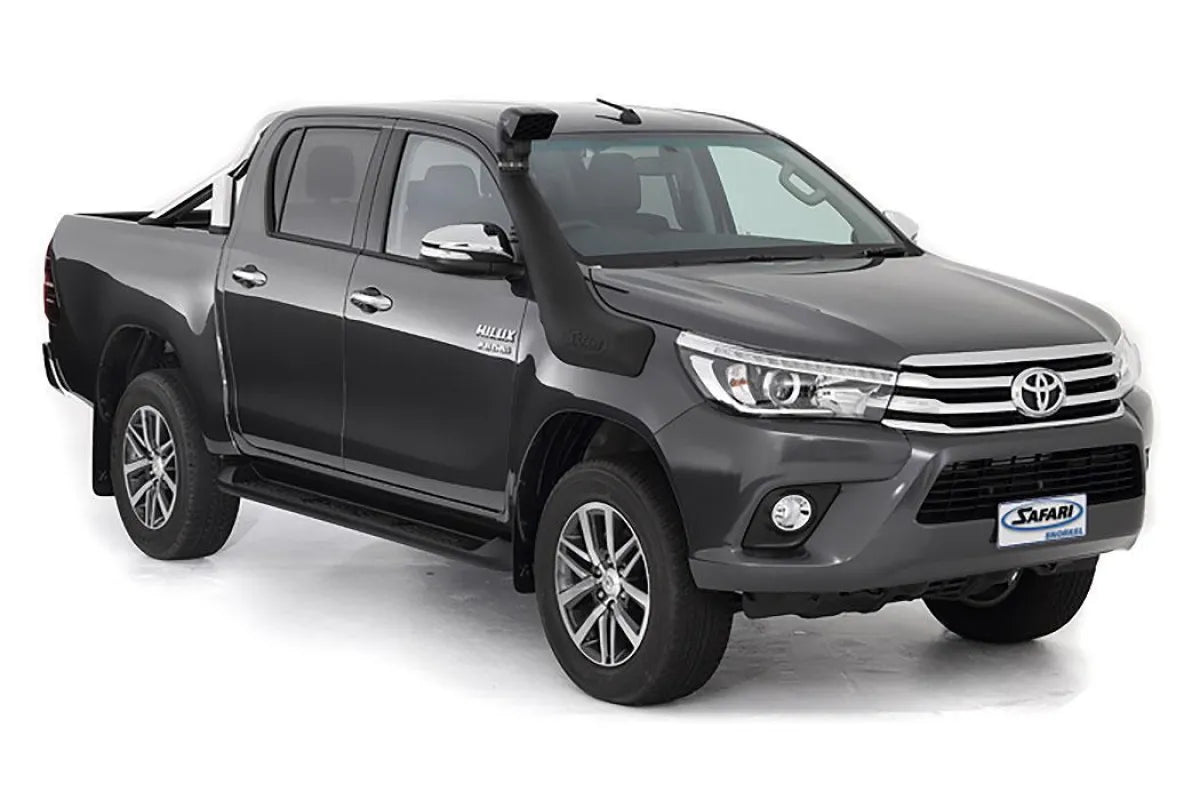

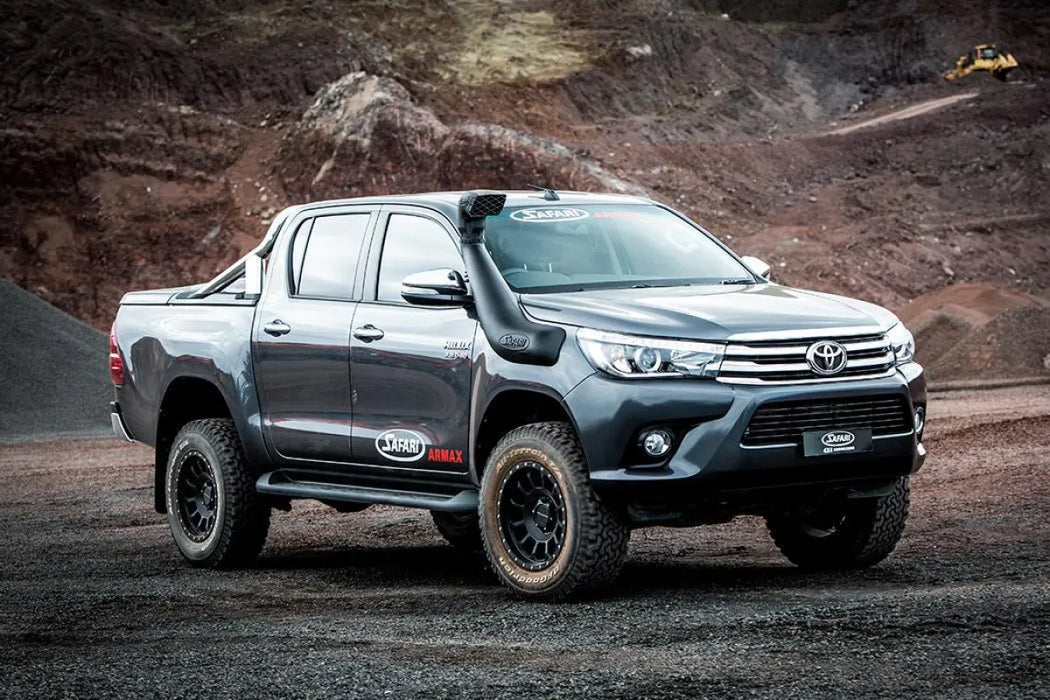

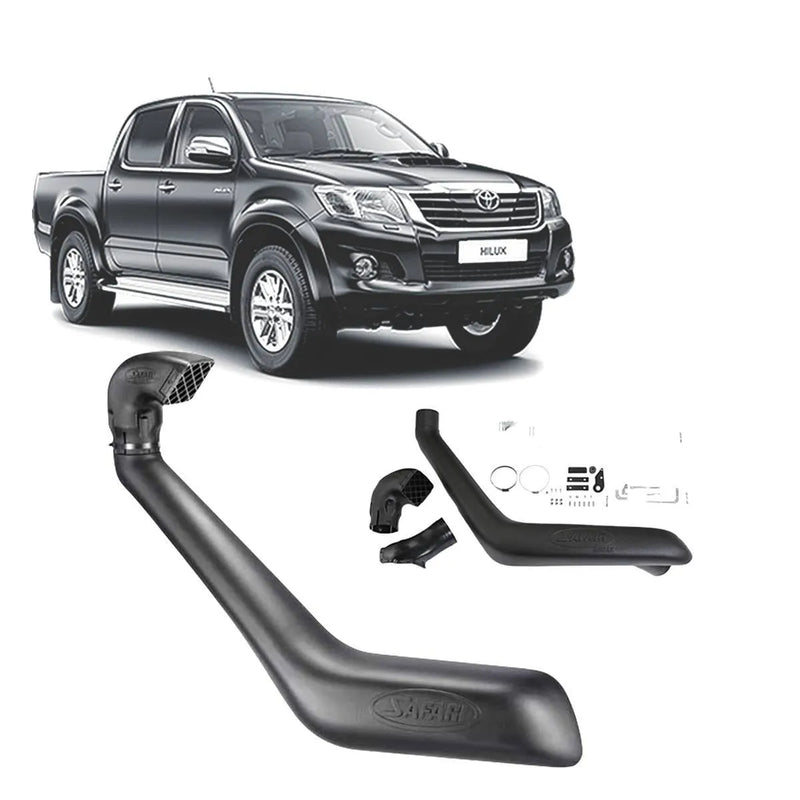

Safari 4x4 Snorkel Kit Designed for Toyota Hilux (Oct 2015 ON)

*Wide Body models Only
The SS123HP Toyota 126 Series Hilux 4x4 Snorkel is designed to deliver up to 50% more air than the OE air intake for Toyota Hilux engines.

With the popularity of performance upgrades using engine management and larger exhausts, Safari 4x4 Engineering took the decision to design a snorkel system that not only raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner, but also would be able to deliver the necessary volume of air into the engine, therefore maximising the performance enhancements potential.

Huge air flow is but one aspect of the ultimate in snorkel Toyota Hilux design. The Safari ARMAX snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari ARMAX air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

Safari Armax 126 Series Toyota Hilux 4x4 Snorkel Features

  • Up to 50% increased airflow for your 126 Series Hilux engine
  • Safari’s rounded style Air Ram; however with minimum 4” (101.6mm) neck and an optimised air flow, low restriction grill
  • Australian designed, moulded and manufactured
  • Design and flow tested by our in house engineers for maximum performance
  • Development and verification in conjunction with other soon to be released ARMAX™ performance enhancement products.
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Toyota LandCruiser 4WD Snorkel fitting guide with an accurate template for installation.
  • Lifetime warranty

The Safari ARMAX™ Snorkels feature:

  • Safari’s own Industrial Spec UV Stabilised Polyethylene
  • Safari’s rounded style Air Ram; however with minimum 4” (101.6mm) neck and an optimised air flow, low restriction grill
  • A Life Time warranty
  • Design and flow tested by our in house engineers for maximum performance
  • Development and verification in conjunction with other soon to be released ARMAX™ performance enhancement products.
These snorkels are all new designs, tested on a custom built flow bench, to flow 25% to 70% more air than the stock air cleaner housing flows from the vehicle manufacturer, whilst still providing a watertight raised air intake.

INSTALLATION GUIDE FOR SAFARI 4X4 SS123HP SNORKEL FOR TOYOTA HILUX

Specifications

  • Fits vehicle year to: Present
  • Fits vehicle year from month: 07
  • Fits vehicle year from: 2015
  • Style: ARMAX
  • Fitment side: Drivers Side
  • Fitting time approx: 3 Hr
  • Material type: UV Stabilised Polyethylene

VEHICLES

Make Model Series Year From Year To Body Notes Engine Engine Capacity Variant Transmission Cylinders
TOYOTA HILUX GUN123 2015 Cab Chassis 1GD-FTV 2.8L SR 4
TOYOTA HILUX GUN126R 2015 Ute 1GD-FTV 2.8L SR 4
TOYOTA HILUX GUN122R 2015 Ute 2GD-FTV 2.4L Workmate 4
TOYOTA HILUX GUN136R 2015 Ute 1GD-FTV 2.8L SR Hi-Rider 4
TOYOTA HILUX GGN125R 2015 2017 Ute 1GR-FE 4.0L SR Automatic 6
TOYOTA HILUX GGN120R 2015 2017 Ute 1GR-FE 4.0L SR Automatic 6
TOYOTA HILUX GGN125R 2015 2017 Ute 1GR-FE 4.0L SR5 Automatic 6
TOYOTA HILUX GUN136R 2015 Ute 1GD-FTV 2.8L SR5 Hi-Rider 4
TOYOTA HILUX GUN125R 2015 Ute 2GD-FTV 2.4L Workmate 4
TOYOTA HILUX GUN125R 2015 Cab Chassis 2GD-FTV 2.4L Workmate 4
TOYOTA HILUX GUN122R 2015 Cab Chassis 2GD-FTV 2.4L Workmate 4
TOYOTA HILUX GUN126R 2015 Cab Chassis 1GD-FTV 2.8L SR 4
TOYOTA HILUX GUN126R 2015 Ute 1GD-FTV 2.8L SR5 4
