SAFARI 4X4 SNORKEL INSTALLATION GUIDE - SS731HF
Make | Model | Series | Year From | Year To | Body | Engine | Engine Capacity | Variant | Drivetrain | Cylinders |
---|---|---|---|---|---|---|---|---|---|---|
NISSAN | NAVARA | D40 | 2010 | 2015 | Ute | YD25DDTi | 2.5L | dCi | 4 | |
NISSAN | NAVARA | D40 | 2010 | 2015 | Cab Chassis | YD25DDTi | 2.5L | dCi | 4 | |
NISSAN | NAVARA | D40 | 2010 | 2015 | Ute | YD25DDTI | 2.5L | ST-X | Auto/Manual | 4 |
NISSAN | NAVARA | D40 | 2010 | 2015 | Ute | YD25DDTI | 2.5L | ST, ST-X | Auto/Manual | 4 |
NISSAN | PATHFINDER | R51 | 2010 | 2015 | Wagon | YD25DDTi | 2.5L | dCi | 4 | |
NISSAN | PATHFINDER | R51 | 2010 | 2015 | Wagon | YD25DDTI | 2.5L | Auto/Manual | 4 |

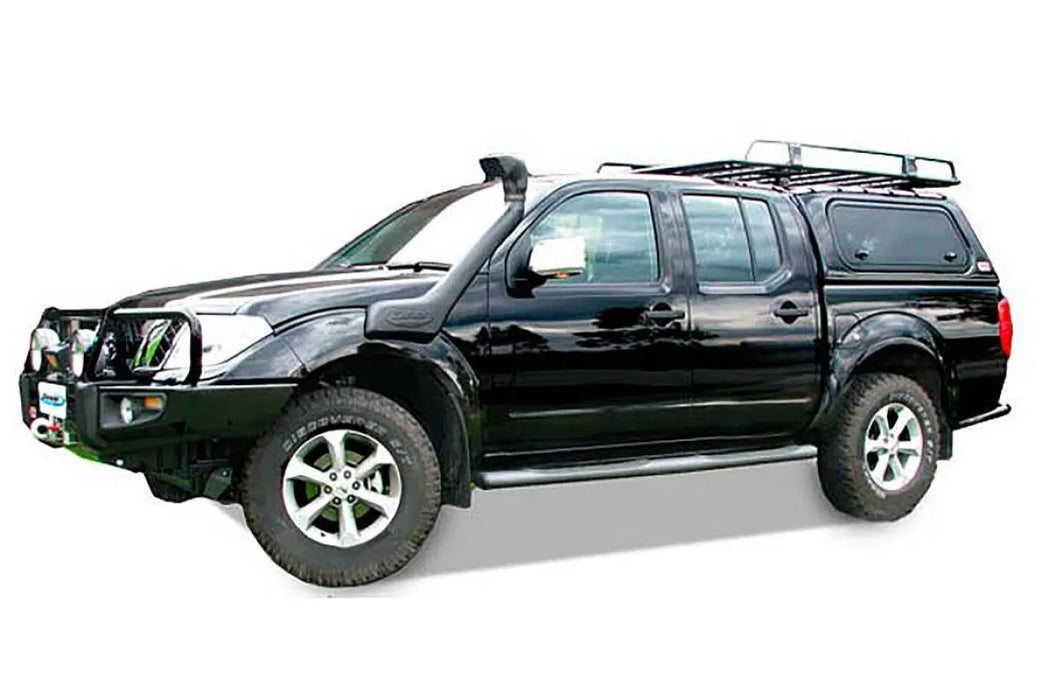

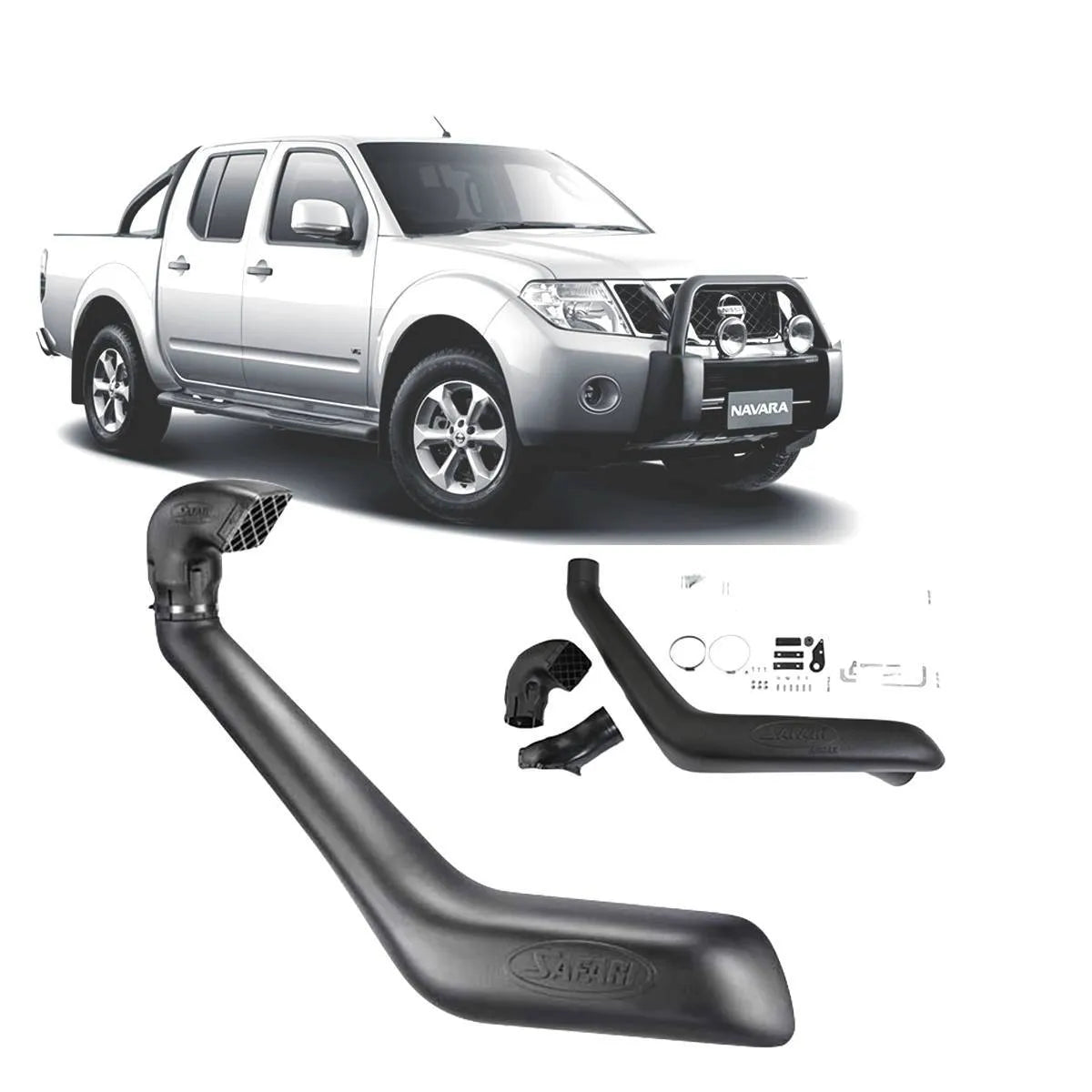

Nissan Navara 4WD Snorkel for D40 ST/ST-X 2010 Onwards VIN: VSK 2.5L Diesell Models - Safari Automotive Nissan Navara 4x4 Snorkel Part Number SS731HF
*Does not suit RX 4x2 and 4x4 models
ITEM | PART NO. |
DESCRIPTION |
QTY |
---|---|---|---|
1 | 430-133-000 | BODY - SNORKEL (SS730HF) | 1 |
2 | 000-135-800 | 3 ½" AIR RAM ASSEMBLY | 1 |
3 | 430-032-000 | BRACKET - UPPER MOUNTING | 1 |
4 | 000-002-100 | BOLT - HEX - 6mm x 1.0 x 14mm (SEMS) | 3 |
5 | 000-951-300 | SCREW - S/T - 4.2mm x 16mm - S/S | 3 |
6 | 000-960 | INSERT - PLASTIC | 3 |
7 | 000-110 | STUD - 8mm x 1.25 x 25mm - S/S | 4 |
8 | 000-311-300 | WASHER - BODY - 8mm x 30mm - S/S | 4 |
9 | 000-205-300 | NUT - NYLOC - 8mm x 1.25mm - S/S | 4 |
10 | 430-024-300 | HOSE - AIR ENTRY | 1 |
11 | 430-025-300 | PLATE - HOSE SUPPORT | 1 |
12 | 430-017-300 | TEMPLATE – AIR INLET DUCT | 1 |
13 | 000-958-200 | POP RIVET - 4mm x 16mm | 10 |
14 | 000-300-350 | WASHER - BODY 4mm x 12mm | 4 |
15 | 000-972-119 | GROMMET - RUBBER 19mm | 1 |
16 | 000-909 | CLAMP - HOSE - 80/100mm | 1 |
17 | 000-914/B | CLAMP - HOSE SIZE 56 (BLACK) | 1 |
18 | 430-016-000 | GASKET - FOAM BODY (SELF ADHESIVE) | 1 |
19 | 430-017-000 | TEMPLATE - GUARD PANEL | 1 |
The guys at 4x4 Down Under were very good, product arrived as described and shipping was prompt, with no damage to to the box.
Purchase process was smooth, definitely get more stuff from them
Great product and Aussie made. Faultless instructions and simple to fit if you follow them.
G'day Warren. Thank you for the great review! You can't go wrong with Safari. If you need anything else don't hesitate to reach out.
Ordered the Safari Snorkel for my Pathfinder and it arrived two days later. The Snorkel is excellent quality and fairly easy to fit (although it took a little longer than the instructions estimated).
Thanks for the great feedback John!
We're Australians, and we like to support our fellow Australians, which is why all our products are sourced locally from the official Australian distributors. Nothing is imported directly and we don't stock any grey imports. This also means that all manufacturer warranties are fully honored by the brands themselves.
