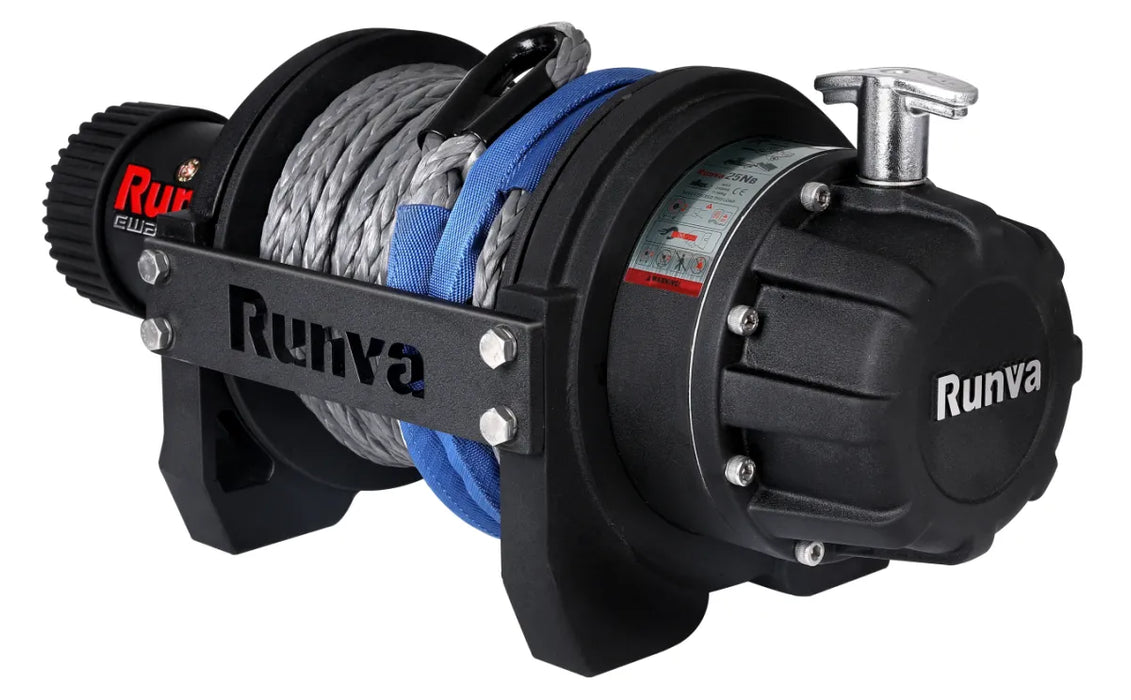

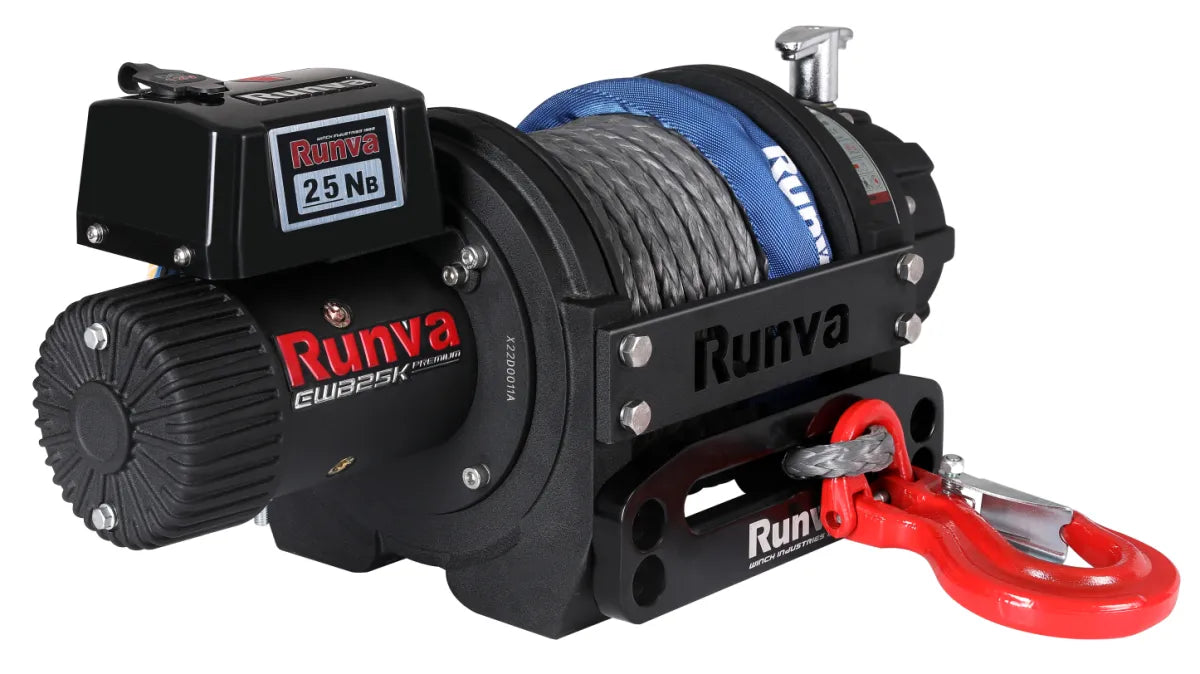

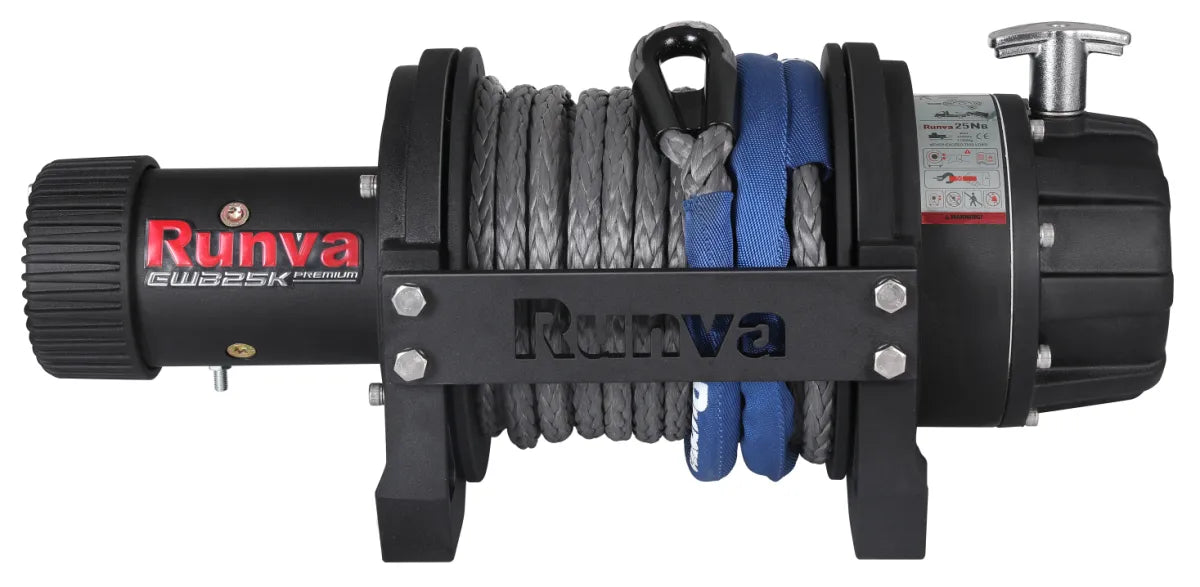

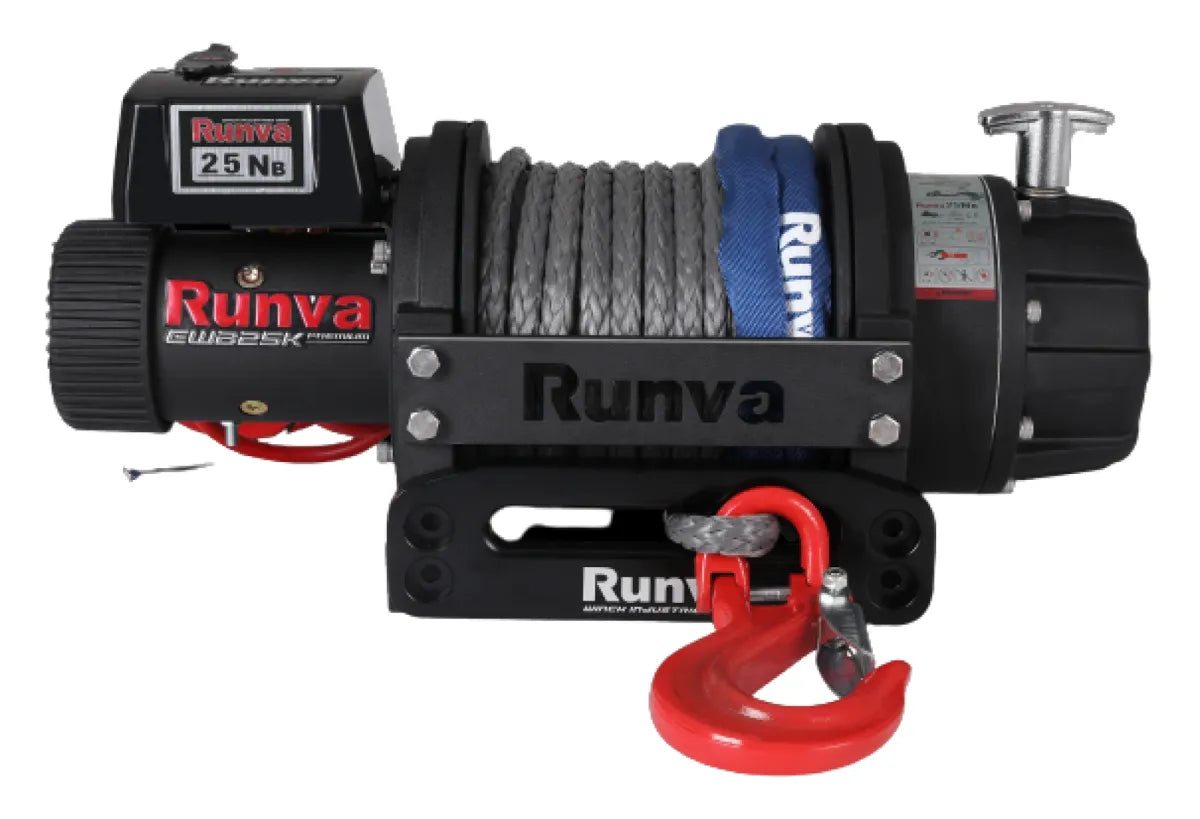

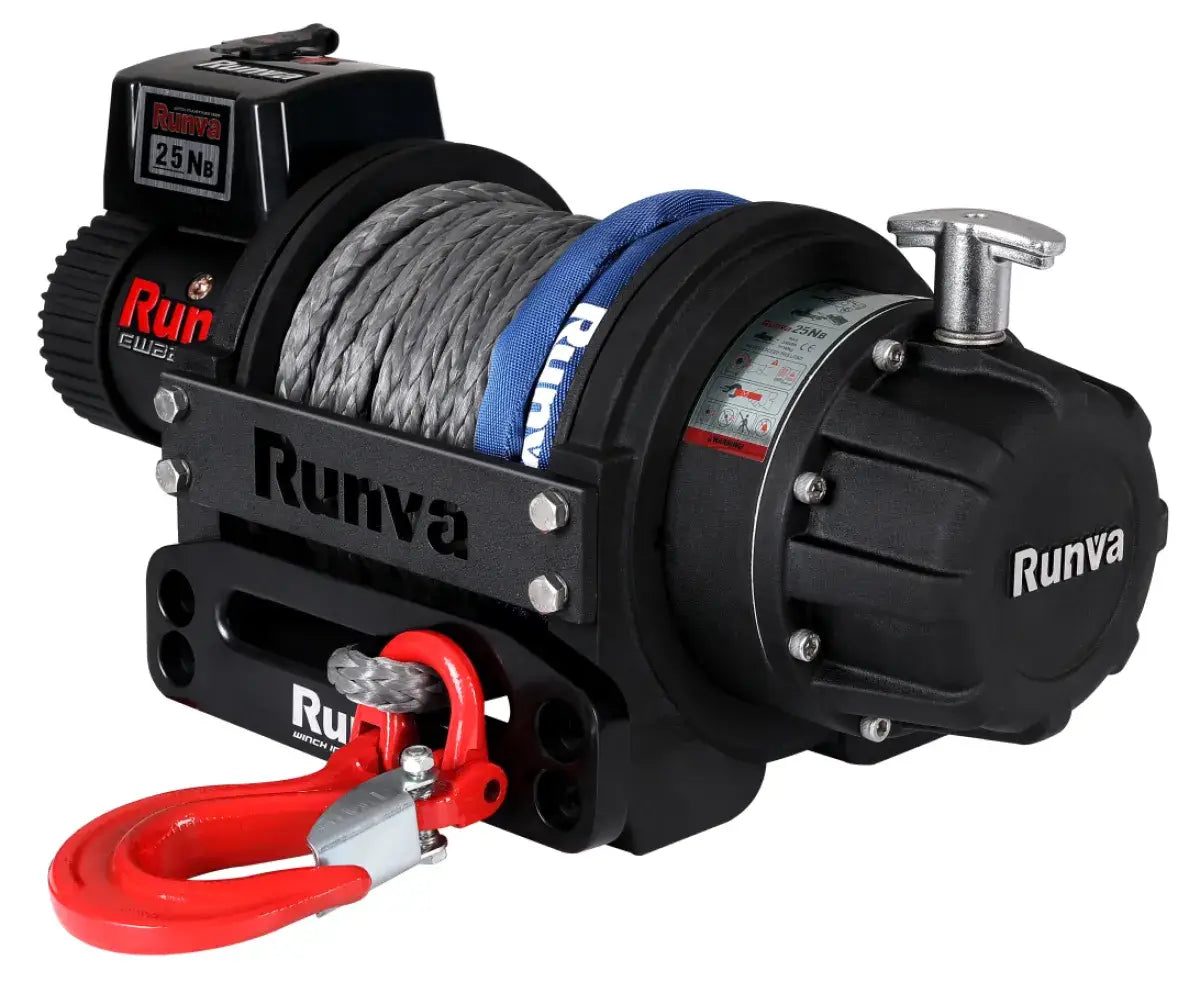

25000lb Premium 12V/24V Winch with Synthetic Rope by Runva | EWB25000
The Runva EWB25000 25,000lb Premium 24v Electric Winch is their largest electric winch featuring a MASSIVE 25,000LB (or 11.3 TONS) of line pull. If you need a commercial grade winch with some SERIOUS pulling power – look no further. For a winch that will work in even the most difficult and heavy recoveries, Runva is the brand of choice.
Designed for recreational and commercial applications. The gearbox is a three stage planetary setup with a super tough 450:1 gear ratio that can handle the toughest of recoveries. With a fast no-load line speed of up to 9.3M/Min*, this winch will get the job done quickly and with little effort.
Features
- Massive 25,000lb line pull capacity
- IP67 ingress protected
- Ratchet style brake in gearbox
- Extreme duty – suitable for commercial applications
- Available in 12v and 24v

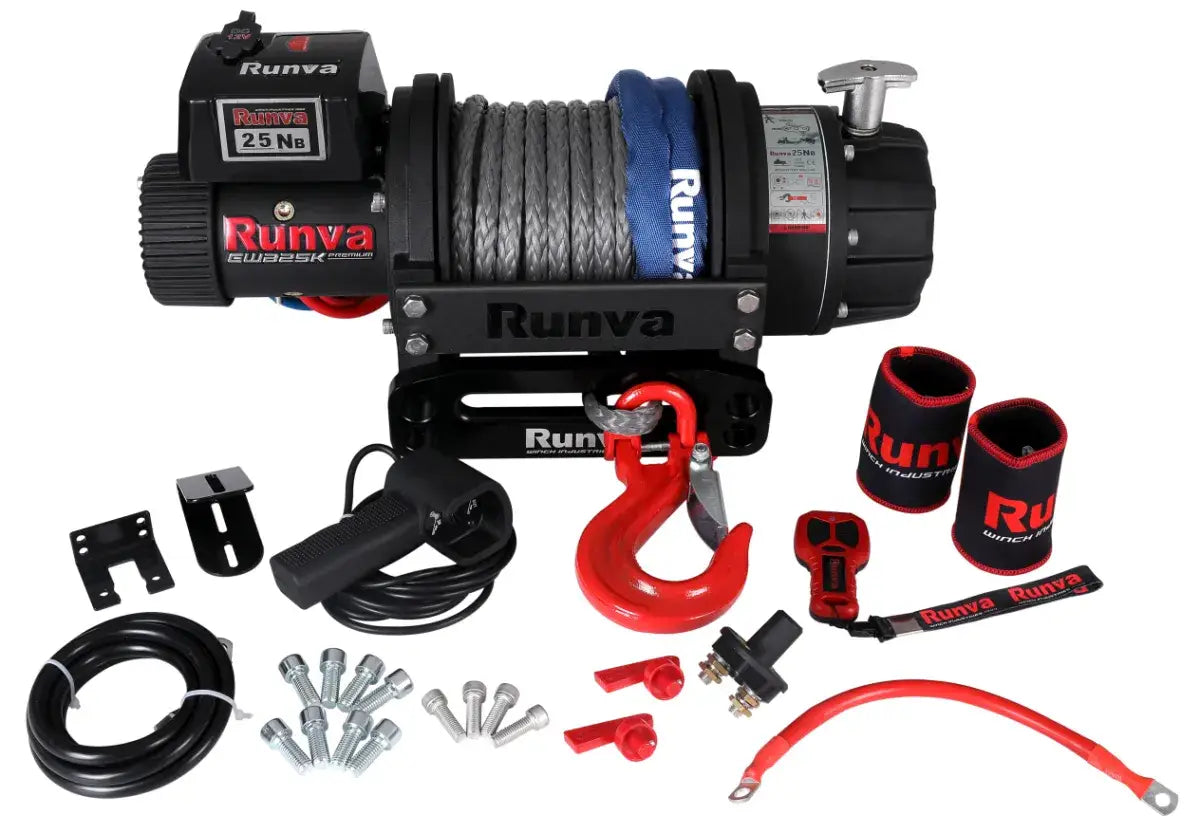

- 2x Remotes Included - 1 wired and 1 wireless
- Steel cable option available
- Air freespool clutch available
- One seriously strong winch
This model has all of Runva's Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is their most advanced Ratchet system which is located in the gearbox allowing for super efficient operation, and able to hold without fail when you stop winching (same brake as featured in their vertical lifting winch). And unlike other more traditional braking systems which use brake pads, this will not wear out.

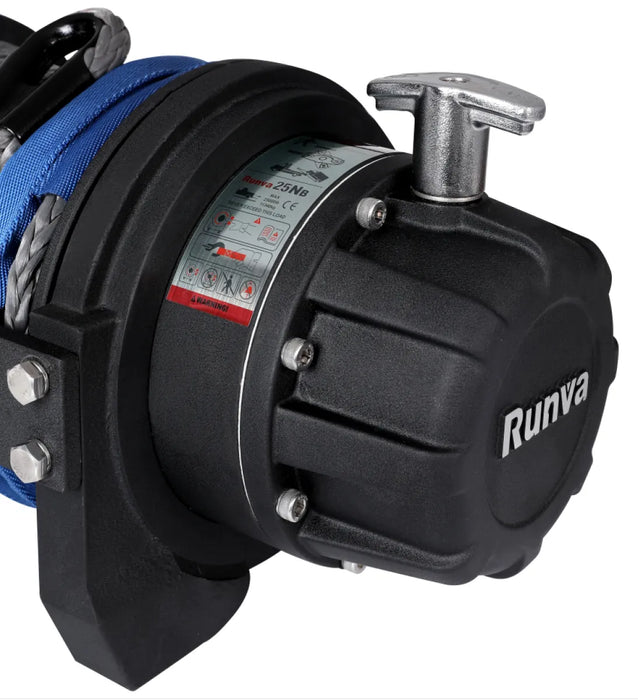

The clutch is easily engaged/disengaged via the Rotary Clutch system. The EWB25000 Premium is also fully compatible with Runva's optional extra Runva Air Clutch for easy in-cab control. An optional extra cable tensioner can also be supplied for commercial applications.
If you are looking for a heavy duty winch, for either recreational or commercial applications, the EWB25000 Premium is the winch for you. This model is perfect for your expedition Unimog, Iveco Daily, Tow Truck, marine or military applications (plus many other applications).
Specifications
- Rated Line Pull: 25,000lb (11,340kg)
- Motor: (12v) 5.5KW/7.4hp; (24V) 6.1kw/8.2hp
- Gear Train: Full Steel 3 Stage Planetary
- Gear Ratio: 450:1
- Clutch Type: Stainless Steel Rotary Clutch
- Clutch Handle Position: Gearbox can be rotated
- Brake: Automatic ratchet load holding in gearbox
- Cable Type: Aircraft Grade Steel Cable
- Cable Size: 13.8mm X 26.5m
- Drum Size: 120mm X 198mm

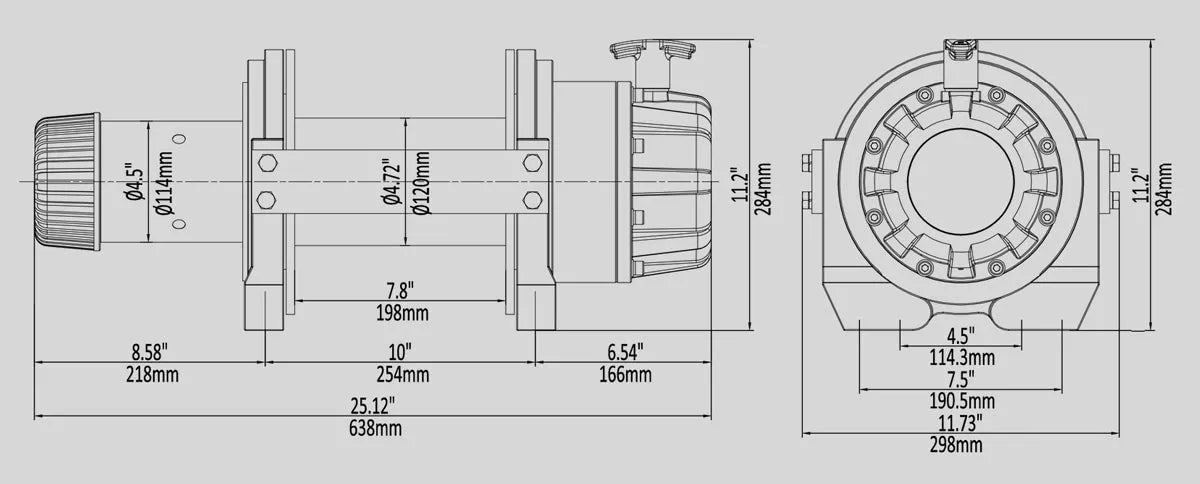

- Mounting Bolt Pattern: 254mm X 114.3mm; 254mm X 190.5mm (8X M12 bolts)

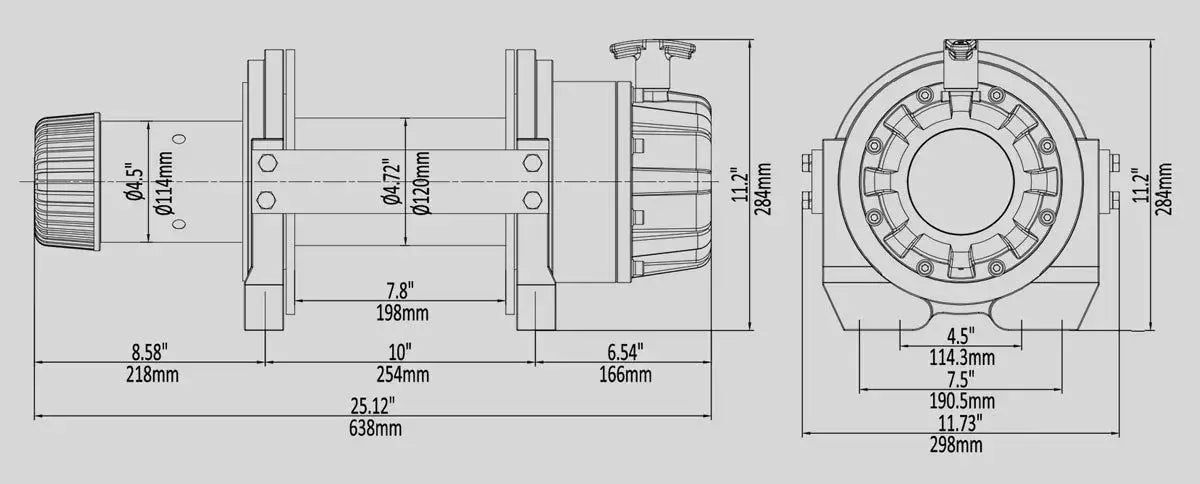

- Overall Dimensions: 638mm X 298mm X 300mm

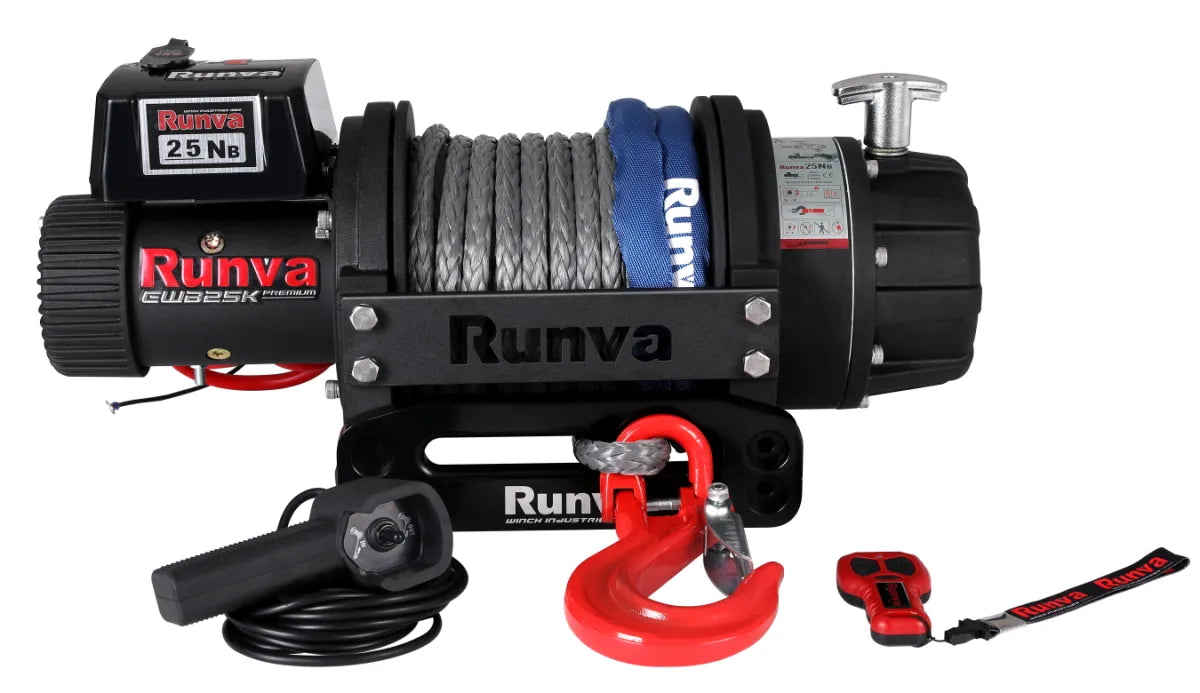

- Remote Control: 1x Heavy Duty Handheld Remote + 1x Wireless Remote
- Battery Leads: 2x 1.8m Heavy Duty Leads
- Finish: Matt Black Powder Coat
- Warranty: Limited 5 year electrical and lifetime mechanical warranty (18 month commercial use warranty)
Winch Performance
| LINE PULL LB (KG)
|
LINE SPEED FT/MIN (M/MIN)
|
MOTOR CURRENT (AMP)
|
LAYER OF CABLE |
RATED LINE PULL LB (KG)
|
TOTAL ROPE ON DRUM FT (M)
|
| |
12V DC |
24V DC |
12V DC |
24V DC |
|
|
|
| 0 |
|
30.5 (9.3) |
|
23 |
1 |
25,000 (11,340) |
17.8 (5.4) |
| 5,000 (2,268) |
|
11.1 (3.4) |
|
90 |
2 |
20,724 (9,400) |
39.4 (12.0) |
| 10,000 (4,538) |
|
8.2 (2.5) |
|
140 |
3 |
17,698 (8,027) |
64.3 (19.7) |
| 15,000 (6,804) |
|
6.6 (2.0) |
|
180 |
4 |
15,443 (7,005) |
86.9 (26.5) |
| 20,000 (9,072) |
|
5.2(1.6) |
|
230 |
|
|
|
| 25,000 (11,340) |
|
3.9 (1.2) |
|
280 |
|
|
|
(The maximum line pull capacity is based on the first layer of cable/rope)
