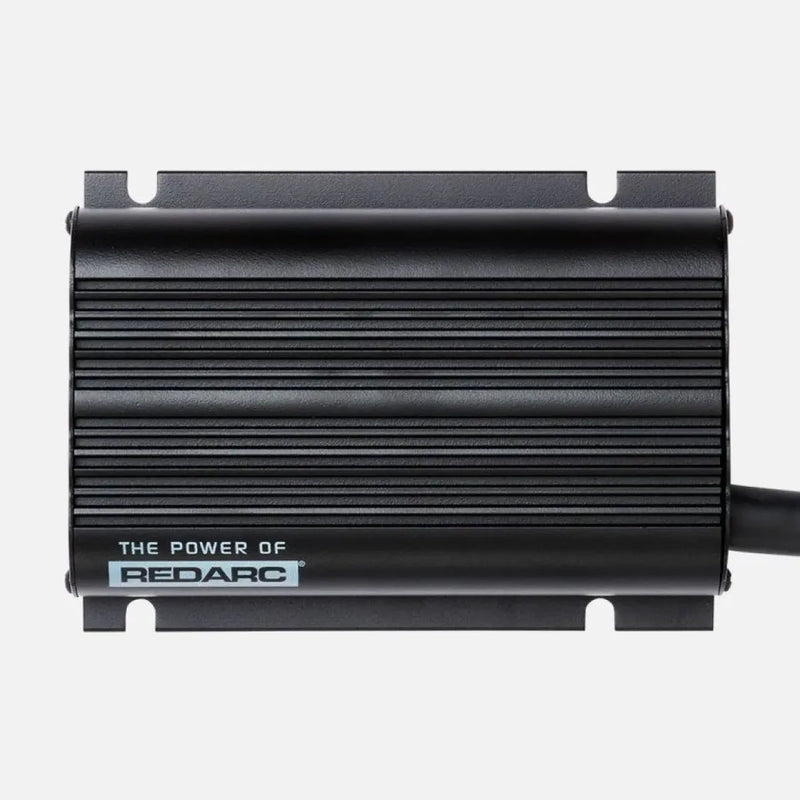

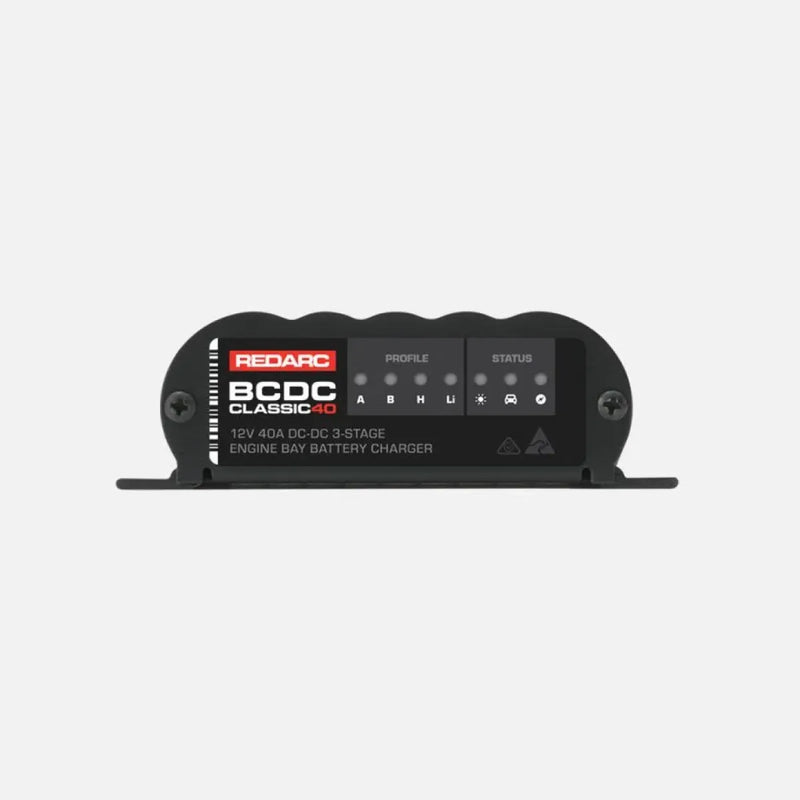

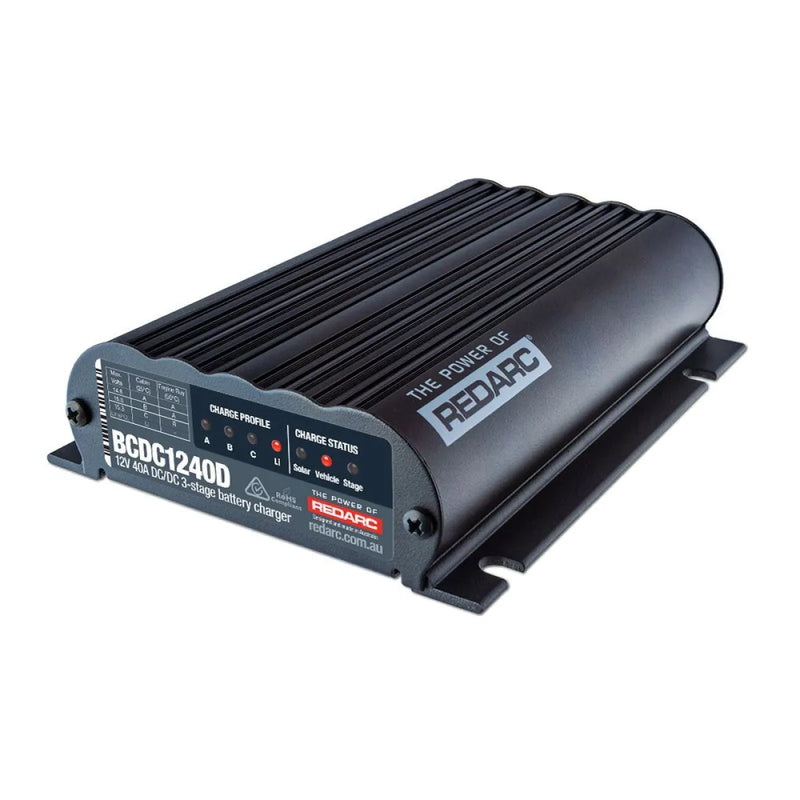

12V 40A Classic Under Bonnet Battery Charger by Redarc
The REDARC BCDC1240D under bonnet Battery Charger is a 12V 40A DC to DC battery charger, capable of high performance in engine bay installations, potted to survive and thrive against heat, water and dust.
Featuring a Maximum Power Point Tracking (MPPT) solar regulator, the BCDC1240D Classic will charge from both solar and the alternator simultaneously. With built-in 'Green Power Priority' it will select solar charging first, meaning less load on the alternator.
Suitable for 12 or 24-volt vehicle systems, the unit will also work with either standard or variable/smart alternators.
The BCDC1240D also comes with patented charging profiles, including a lithium charging profile perfect for pairing with a REDARC Lithium Battery. The 'Dual' input range will continue to charge all other types of batteries including AGM, GEL, standard lead acid and calcium.
As a guide the BCDC1240D is typically used for lead acid battery banks over 200Ah and lithium batteries over 100Ah. Check the manufacturer’s data for your battery and ensure that the ‘Continuous Current Rating’ of the charger does not exceed the manufacturer’s recommended maximum charging current. For smaller batteries, REDARC recommends the BCDC1225D.
Proven and Tested
The award-winning technology in the BCDC has been independently verified and tested to ensure battery life is maximised, charging your battery to a proven 100%.*

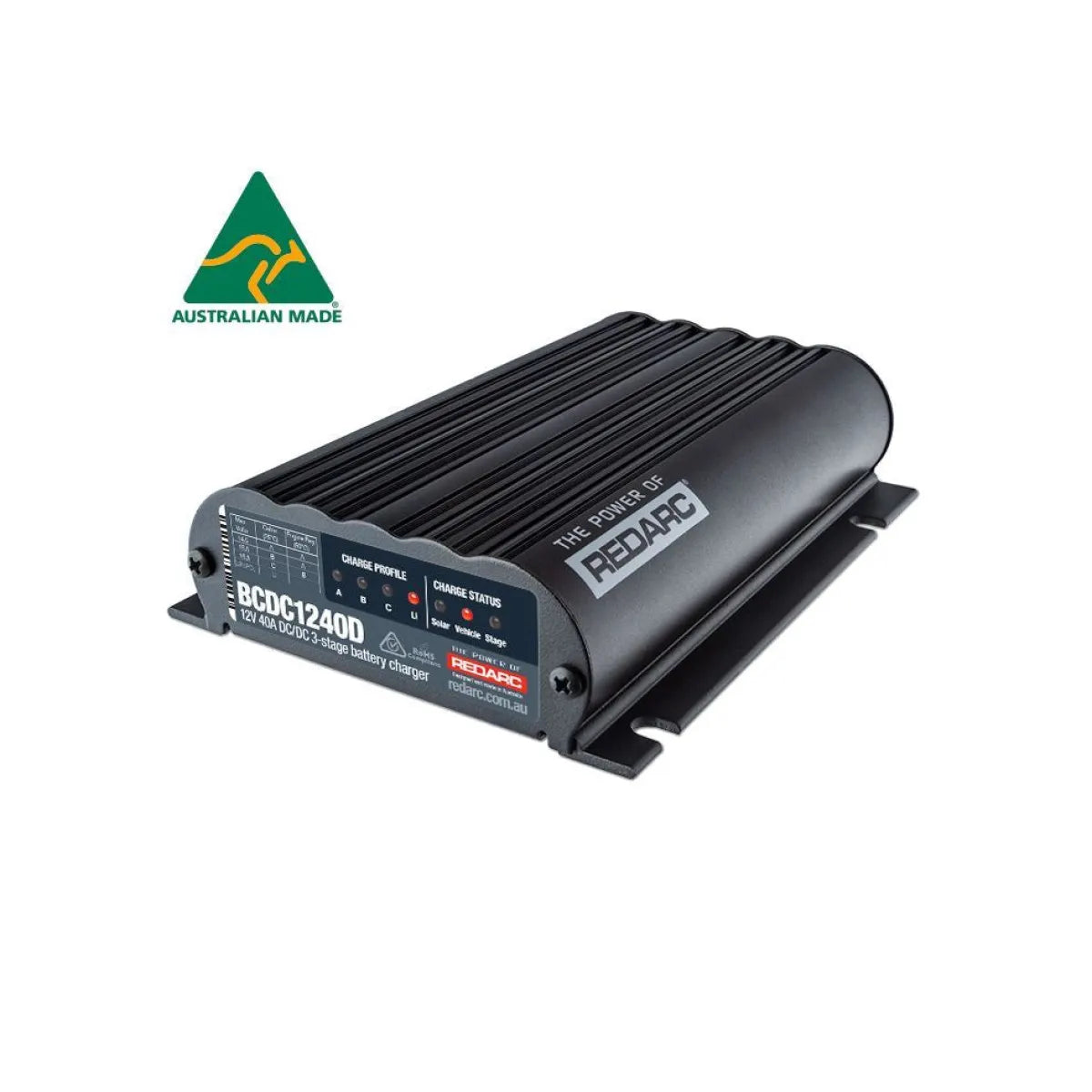

Built in Australia and tested for our unique conditions, the DC to DC battery charger will work in the extreme heat of the Simpson Desert, up to 80°C and can handle deep water crossings at Cape York – water, dust and vibration are no match for this charger.
If you’re heading out into the bush and want to get there and back again safely – you can trust REDARC.
*large capacity battery banks may require a few cycles to fully charge.
Features
- Separate DC and solar charging inputs
- Maximises the performance and life of your auxiliary battery
- Simultaneous DC and solar charging with Green Power Priority
- Suits 12V/24V standard and variable voltage/smart alternators
- Suitable for AGM, GEL, standard lead acid, calcium and Lithium (LiFePO4) batteries
- Suitable for use on vehicles with conventional alternator charging systems
Mounting Brackets
In addition to the use of quality fuse kits, REDARC offer a range of vehicle-specific mounting brackets for our BCDC DC-DC Charger range. The 304 stainless steel bracket allows installation into the front of the vehicle for cooler airflow, ensuring optimal performance. They have been designed to fit existing mounting points in the vehicle.
Specifications
| Input Charge |
Simultaneous vehicle and solar |
| Installation Type |
In-cabin or under bonnet |
| Input (Operating) Voltage |
9 - 32VDC |
| Output System Voltage |
12VDC |
| Maximum Charging Voltage |
15.3V |
| Output Current Rating (Cont.) |
40A |
| Input Fuse Rating |
60A |
| Type Approval |
E-Mark |
| Output Fuse Rating |
60A |
| Warranty |
2 Years |
| Standby Current Draw |
<100mA |
| Output Power |
600W |
| Width (mm) |
120 |
| Height (mm) |
37 |
| Length (mm) |
165 |
| Weight (kg) |
1 |
