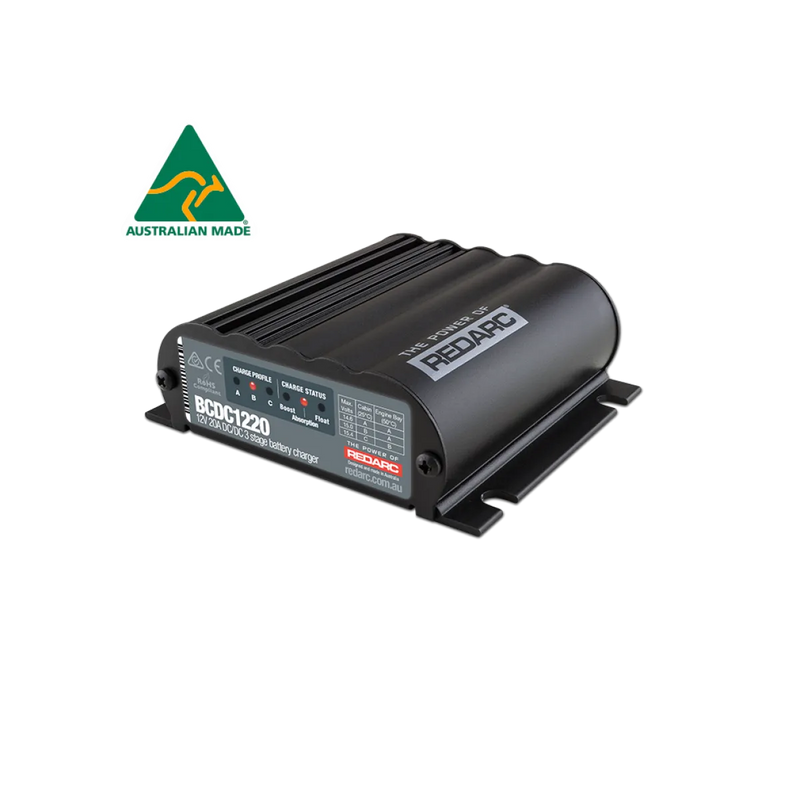

12V 20A Single Input Under Bonnet DC Battery Charger by Redarc
The REDARC BCDC1220 is a 12 Volt 20 Amp In-vehicle DC to DC battery charger designed to keep your battery charged whilst driving. Featuring multi stage battery charging, the system charges your auxiliary battery from your vehicle to a proven 100%.*
The BCDC charger will work from a wide operating range (9 – 32V) giving the option of charging from both 12V and 24V vehicle systems, and is potted and rugged making it perfect for under bonnet installations.
By providing a unique charging profile to each specific battery type, the smart charger is able to achieve and maintain 100% charge for your auxiliary battery. You can charge your auxiliary battery no matter what your battery is.
*Large capacity battery banks may require a few cycles to fully charge.
Proven and Tested
Compact in size, easy to install and fully sealed - water, dust and vibration are no match for the in-vehicle DC DC charger. It can handle the roughest tracks in outback Australia and even deep water crossings at Cape York. The BCDC DC to DC battery charger is suitable for installation in harsh environments or marine applications.
With an ever increasing number of electrical accessories and devices being used when travelling around Australia, along with more complex vehicle electrical systems than seen in years gone by, having the right DC battery charger has never been more important.
Designed, built and tested in Australia for our unique conditions, the BCDC in-vehicle DC to DC charger won’t let you down.
Features
- Multi Stage DC to DC Battery Charger
- Start Battery Isolator
- Fully sealed
- No fan for super quiet operation
- Charges AGM, Gel, Calcium content, VRLA and Standard Lead Acid batteries
Mounting Brackets
In addition to the use of quality fuse kits, REDARC offer a range of vehicle-specific mounting brackets for our BCDC DC-DC Charger range. The 304 stainless steel bracket allows installation into the front of the vehicle for cooler airflow, ensuring optimal performance. They have been designed to fit existing mounting points in the vehicle.
Specifications
| Input (Operating) Voltage |
9 - 32VDC |
| Input Charge |
Vehicle only |
| Installation Type |
In-cabin or under bonnet |
| Maximum Charging Voltage |
15.4V |
| Output System Voltage |
12VDC |
| Output Fuse Rating |
40A |
| Standby Current Draw |
<100mA |
| Output Current Rating (Cont.) |
20A |
| Input Fuse Rating |
40A |
| Output Power |
300W |
| Length (mm) |
120 |
| Warranty |
2 Years |
| Width (mm) |
100 |
| Height (mm) |
37 |
| Weight (kg) |
0.485 |
| Type Approval |
CE |
