Lightfox 23" LED Light Bar with Wiring Harness Kit

SKU 93S-DDT23BT-W-SUN-R1
Original price $97.00 - Original price $97.00
Original price
$97.00
$97.00 - $97.00
Current price $97.00
4x4 Down Under Buy Now Pay Later Options
    WHY SHOP WITH US?
  • Fast Shipping with Free Insurance
  • Australian Owned and Operated
  • Expert Before & After Sales Service
  • Easy Returns & Full Warranty Support

Illuminate the Night with Lightfox's 23" LED Light Bar and 12v Wiring Harness Kit: Ultimate Clarity and Efficiency

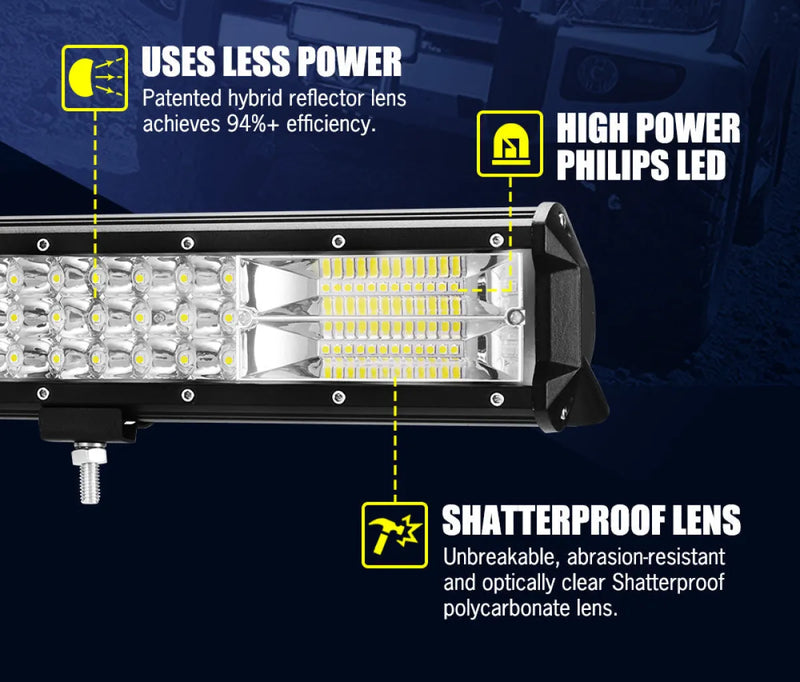

Experience unparalleled night-time visibility with Lightfox's innovative 23-inch LED light bar. Crafted for adventurers and the safety-conscious, this cutting-edge DDT series light bar ensures you navigate through the darkest roads, adverse weather, or challenging terrains with confidence. Boasting high-performance Philips Lumiled LUXEON LEDs, it offers an exceptional 9,980 lumens output, illuminating your path while optimising fuel efficiency.

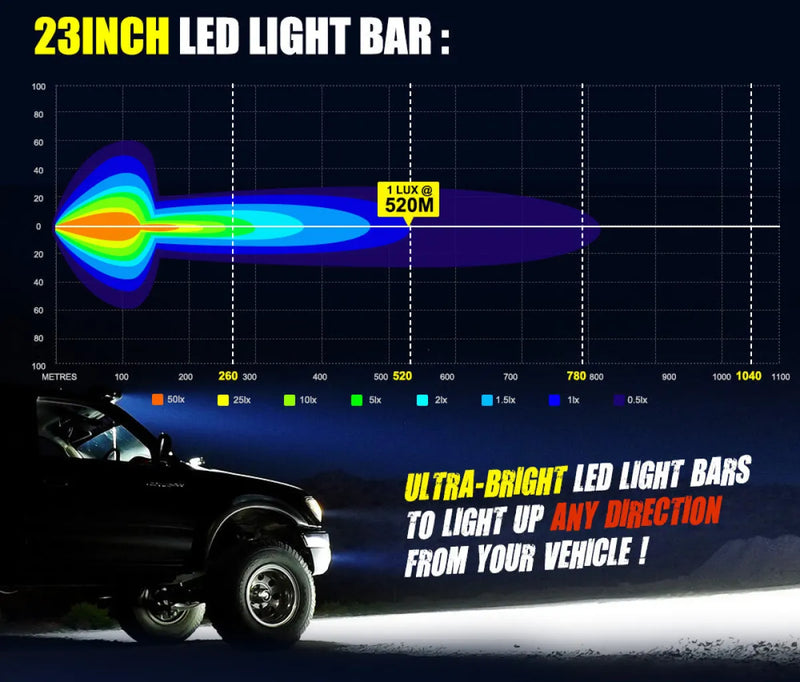

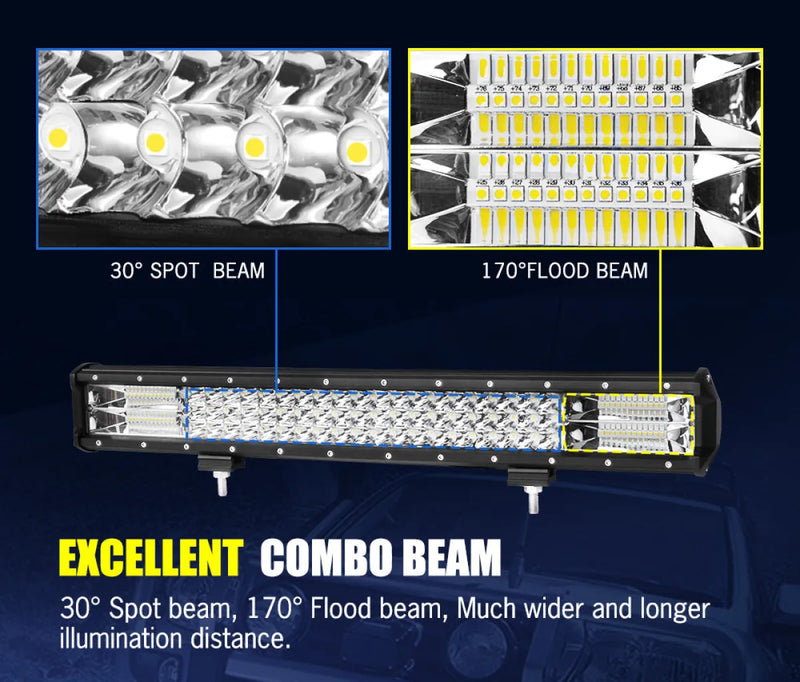

Engineered for excellence, it features a triple-row spot beam for an impressive 1 LUX at 520 metres reach, alongside a double-row spread beam that projects a 170° wide angle. This combination ensures every corner of your surroundings is brightly lit, far surpassing the capabilities of standard beams or traditional light bars.

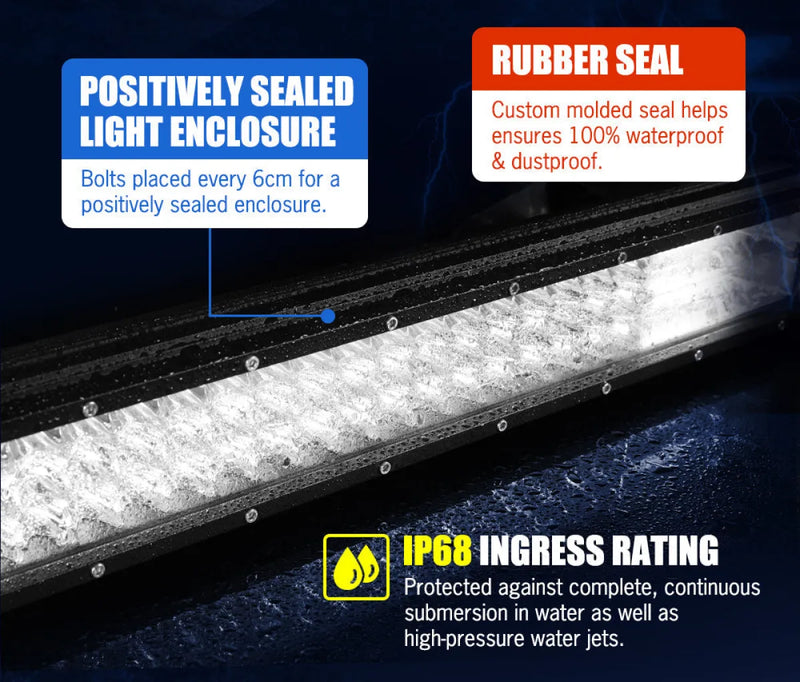

Rated IP68 for ultimate durability, it's shielded against dust, particles, and water immersion up to 3 metres deep. The robust diecast aluminium body and 3mm PMMA lens are built to withstand the rugged Australian outback. Coupled with an ultra-low amp draw stabiliser, this light bar is not just a lighting solution but a long-term investment in your vehicle's performance and your safety on the road.

Features

  • Triple-Row and Nest Reflector Cup Design Pushes Lighting Efficiency To The Max.
  • The Unbreakable toughened PMMA surface with high light transmission.
  • IP68 High-grade anti-corruption diecast aluminium housing.
  • 100% waterproof, dustproof & quakeproof for extreme environment.

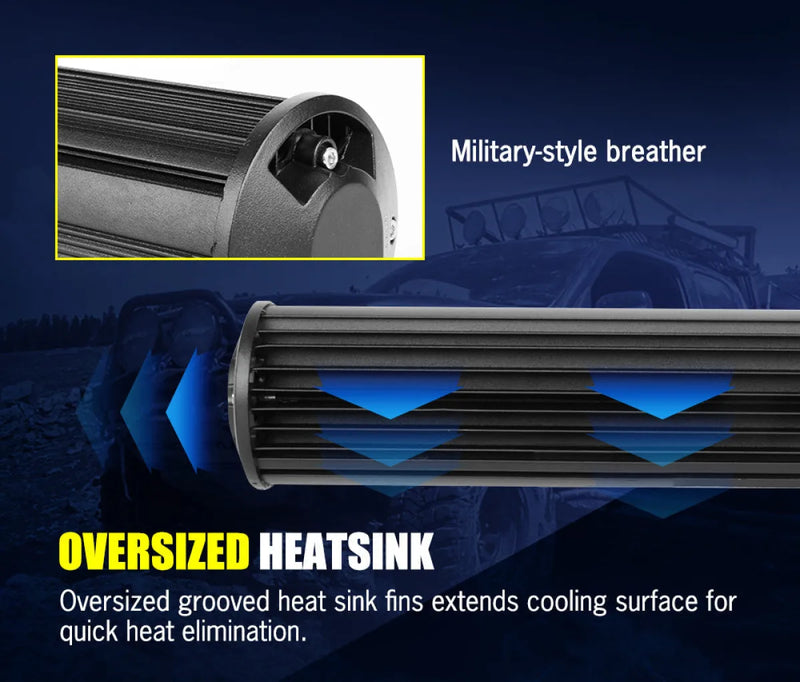

  • Oversized grooved heat sink fins extends cooling surface for quick heat elimination.
  • Broad reflective plate allows multi wide angle refraction,ideal for ambient lighting.
  • Applying to difference light resource(HIGH LED Lamp).
  • Advanced new design, More Intense Leds Than Other Light bar In same Length.

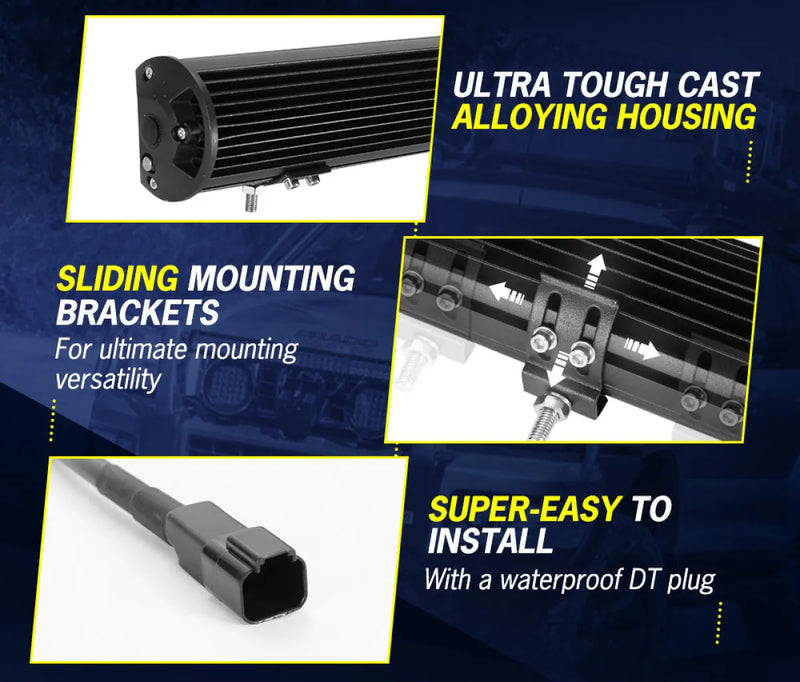

  • Adjustable and Durable Alu Firm Mounting Brackets.

Specifications

Operating Voltage: 9-32V DC
Waterproof Rate: IP 68
Amp Draw: 7.35 @13.6v
LEDs: 96x Philips Lumileds LED
Base Colour: Black
Color Temperature: 6000K
Material : Diecast aluminum housing
Lens material: PMMA
Mounting Bracket: Alu firm bracket
Beam Type: spot and flood (24F/60S/24F)
Life Span: 30000+hours
Dimensions: 23 inch
Theoretical Lumens Output: 9980LM
Distance: 1 Lux @ 520 Meters

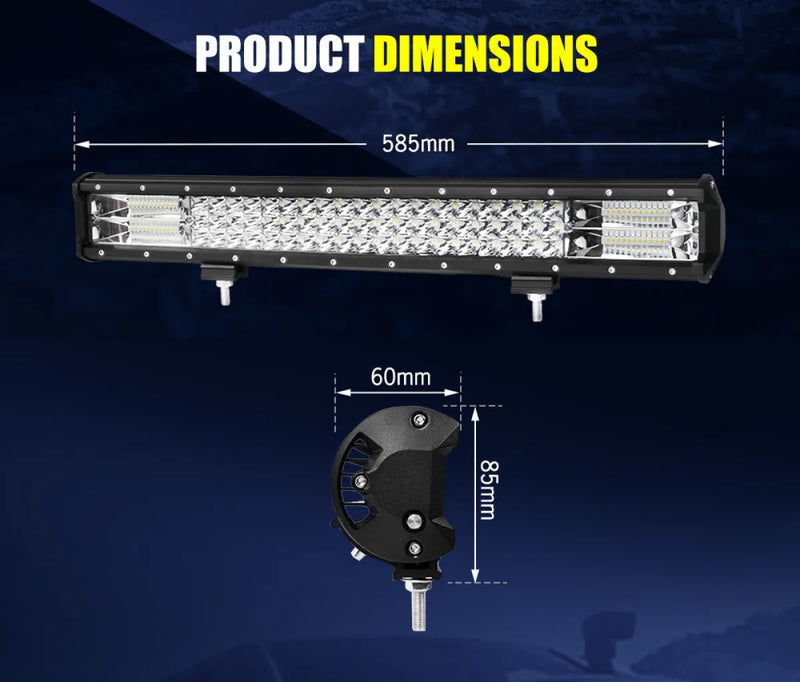

Size(W+D+H): 585mm x 120mm x 60mm
Weight: 4kg (Aprox including box)

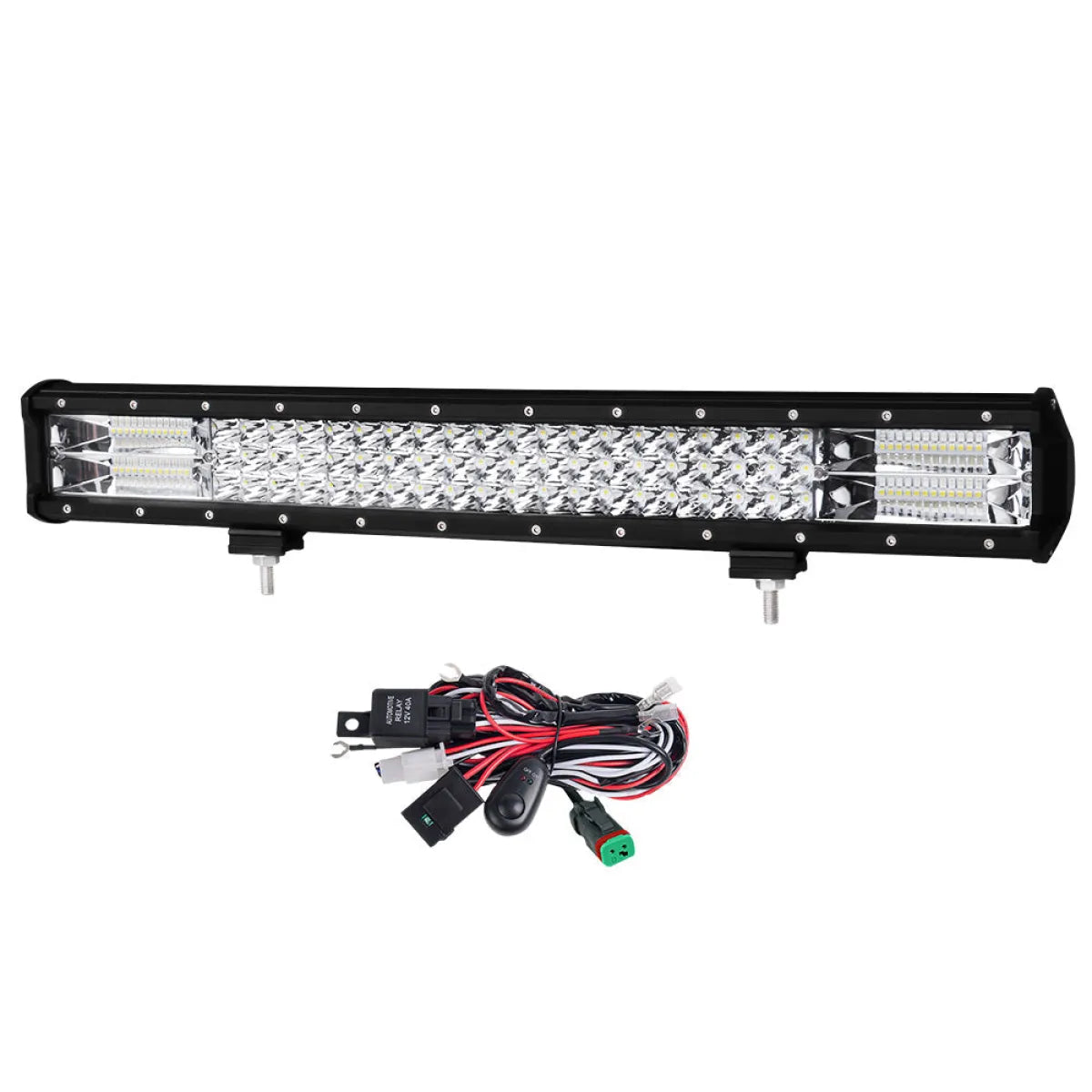

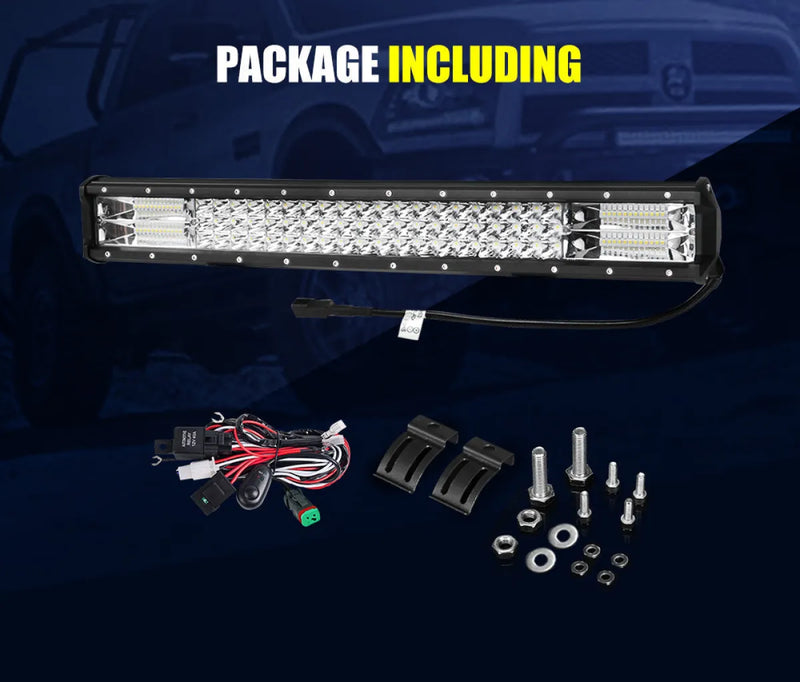

What's in the Box

  • 1 x Led Light Bar
  • 1x 12V Wiring Harness

Warranty

  • 3 Year Manufacturer Warranty
