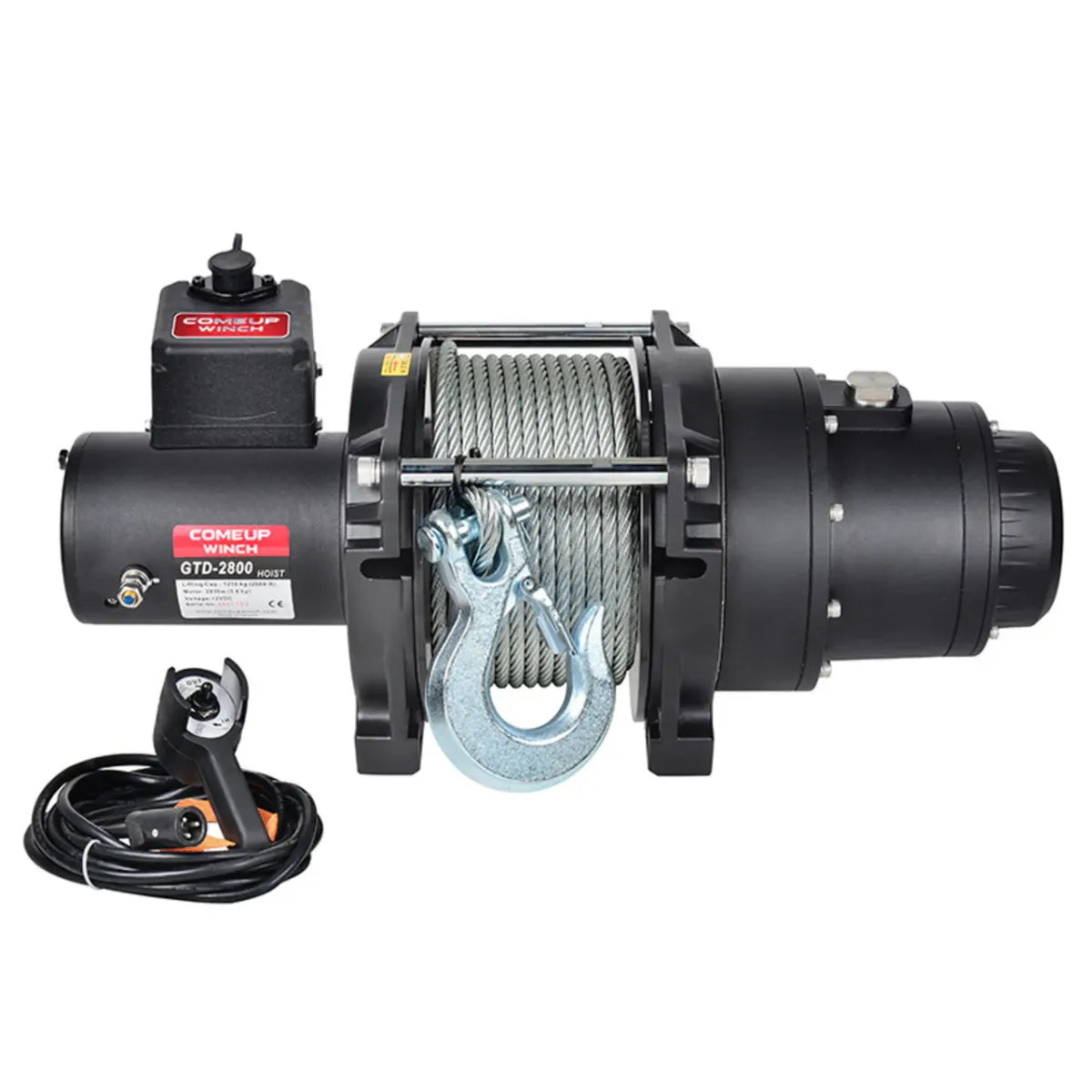

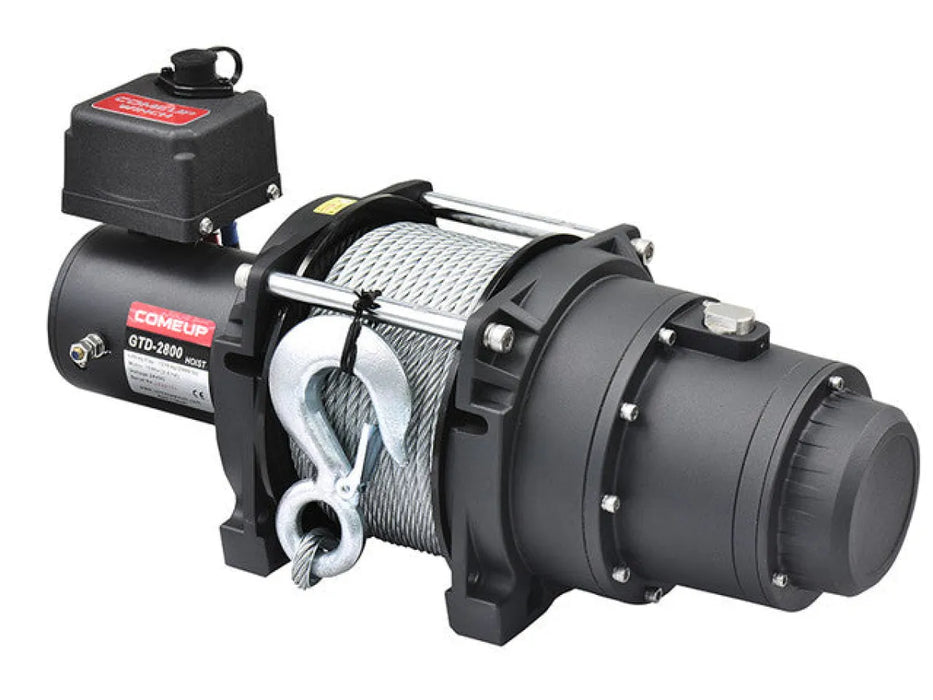

1,270kg / 2,800lb Heavy Duty 24V Hoist (GTD-2800) from COMEUP

The COMEUP GTD-2800 is a powerful and robust 24V hoist, engineered to meet the demands of heavy-duty lifting applications.

Designed for industrial and off-road use, this hoist offers dependable performance with a high load capacity of 1,270 kg (2,800 lbs), making it ideal for a wide range of tasks, including construction, vehicle recovery, and machinery handling.

Features

  • Powerful Performance: Engineered with a high-efficiency motor, the GTD-2800 delivers exceptional power with a low amp draw, ensuring reliable performance without excessive energy consumption.

  • Compact & Lightweight Design: Its innovative design allows for easy installation and maneuverability, making it suitable for tight spaces and diverse applications.

  • Safety Mechanisms: Featuring a mechanical cone brake and permanent motor dynamic brakes, this hoist provides precise control over lifting and lowering, enhancing safety during operation.

  • Durable Remote Control: The waterproof industrial remote control, equipped with a generous 5-meter lead, allows for convenient operation from a safe distance.

  • Heavy-Duty Gear Train: The full metal 3-stage planetary gear train is designed for maximum pulling power, ensuring the GTD-2800 can handle your toughest jobs with ease.

  • Robust Construction: With a submersible sealed contactor that supports high amperage, this hoist is built for durability and longevity, suitable for demanding work environments.

  • Compliance Standards: Designed in accordance with ASME B30.5 standards, featuring a D/d ratio of ≥18 and a rope safety factor of ≥3.5, ensuring a reliable and safe lifting solution.

Specifications

  • Part number: PN 753033 (24V)
  • Rated load: 1,270 kg  (2,800 lb)
  • Line speed (at 1st layer of rope):
    24V: 6.0 mpm / 19.7 fpm 22A at no load
              4.4 mpm / 14.4 fpm 100A at full load
  • Motor: 1,940 w / 2.6 hp 24V permanent magnet
  • Gear ratio: 3-stage planetary gear 261:1
  • Brake (outside the drum): Mechanical cone brake and permanent motor dynamic brakes together
  • Hoist construction: Aluminum die cast housings with cast iron drum

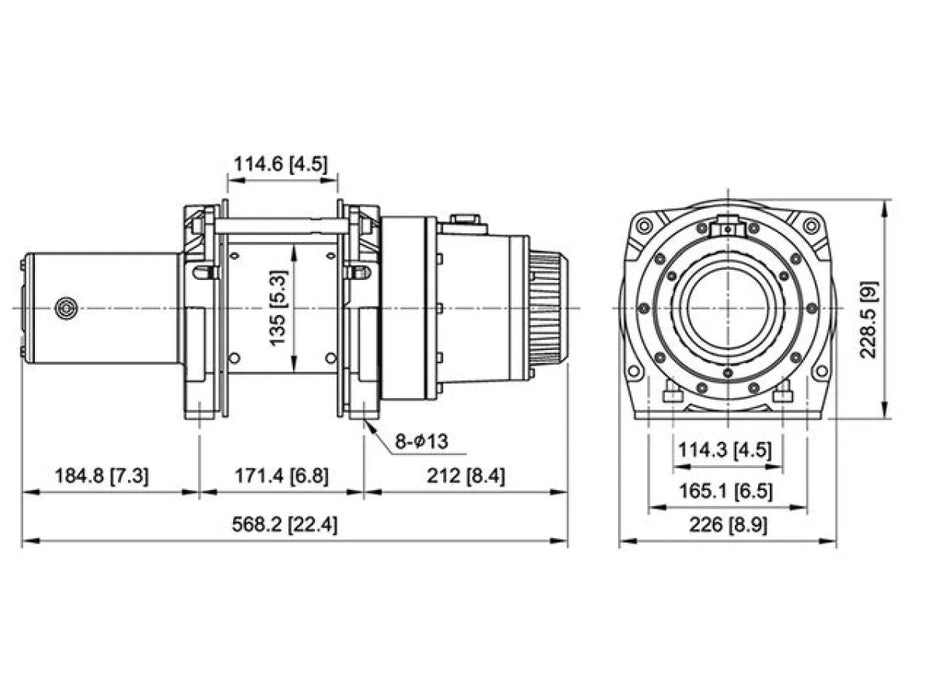

  • Drum size: 135 x 114.6 mm (5.3” x 4.5")
  • Control: Remote control with 5 m (17') lead
  • Rope type: Galvanized aircraft A7 x 19
  • Rope size: 7.9 mm x 28 m (5/16" x 92')
  • Mounting bolt pattern: 114.3 x 171 mm (4.5” x 6.8”) ; 165.1 x 171 mm (6.5" x 6.8")
  • Standard Compliance
    • CE Machinery Directive 2006/42/EC
    • CE EMC Directive 2014/30/EU
    • ASME B30.5

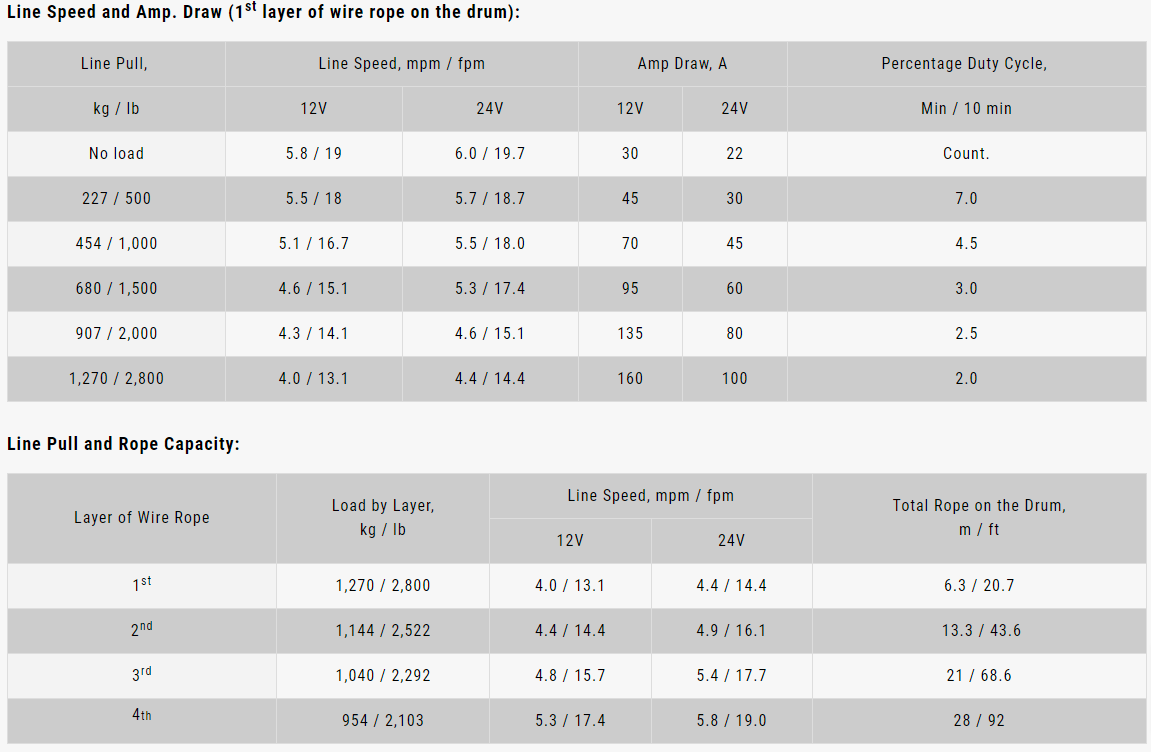

Performance

COMEUP GTD-2800 Heavy Duty 24V Hoist | 1,270kg / 2,800lb

Warning

  • The hoist is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated load shown is based on the first layer of rope on the drum.
  • The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

  • Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Wire rope are not included under warranty.

Accessories

  • Wire rope 7.9 mm x 28m w/clevis hook
  • Remote control with 5m lead
  • Control Pack

Package

  • Hoist weight: 48.1kg (including rope & hook)
  • Gross weight: 54.8kg
  • Box dimension (L x D x H): 62 x 36 x 26cm
