COMEUP GTD-2200 Heavy Duty 12V/24V Hoist | 998kg / 2,200lb

by Comeup
SKU 752103
Sold out
Original price $2,299.00 - Original price $2,299.00
Original price
$2,299.00
$2,299.00 - $2,299.00
Current price $2,299.00
4x4 Down Under Buy Now Pay Later Options
    WHY SHOP WITH US?
  • Fast Shipping with Free Insurance
  • Australian Owned and Operated
  • Expert Before & After Sales Service
  • Easy Returns & Full Warranty Support

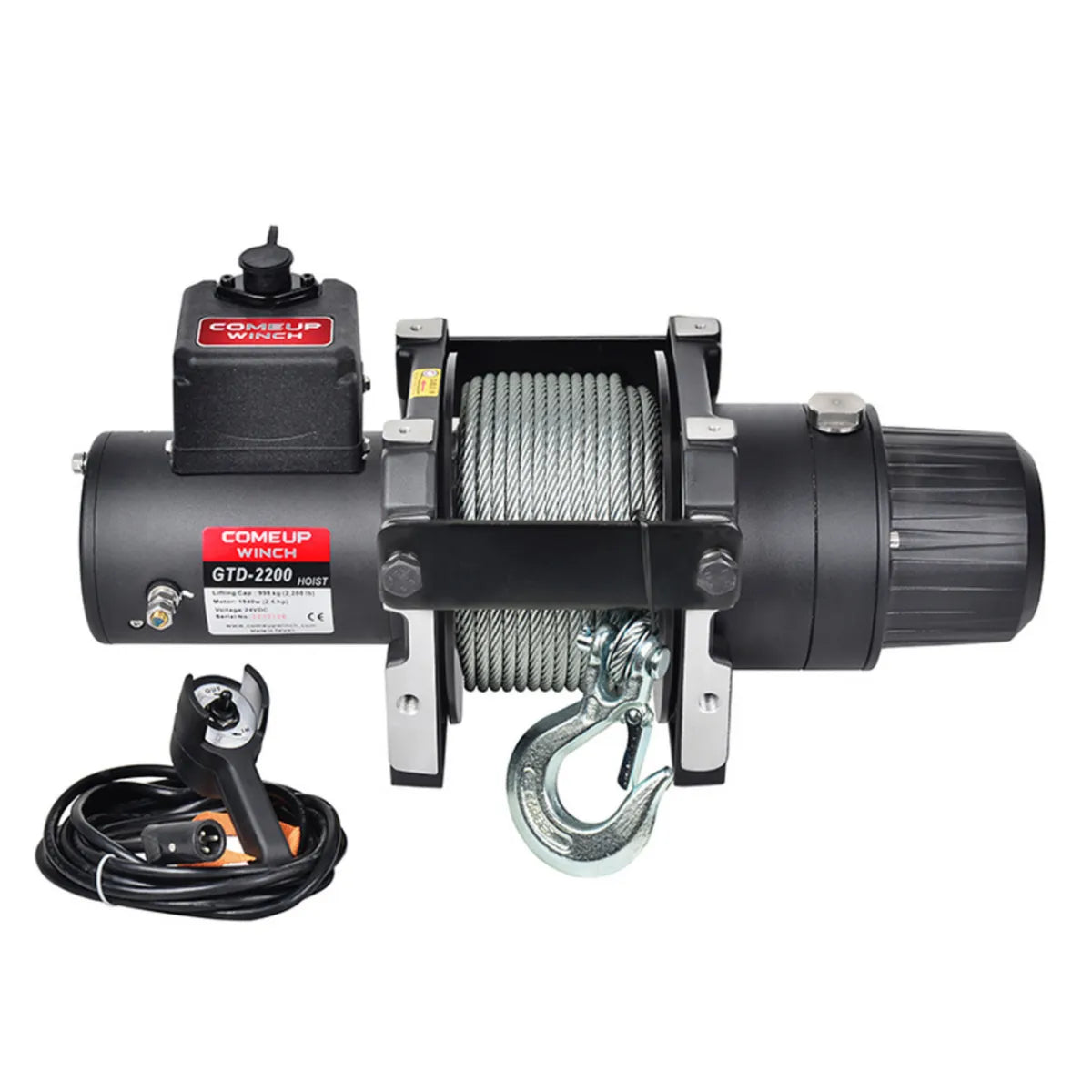

998kg / 2,200lb Heavy Duty Hoist (GTD-2200) by COMEUP (available in 12v or 24v)

The GTD-2200 is a reliable heavy-duty hoist built for demanding lifting applications in industrial, off-road, and construction environments. With a lifting capacity of 998 kg, this hoist offers powerful performance, making it ideal for tasks requiring consistent and durable lifting capability.

Features

  • High Efficiency: Designed with a low amp draw and a sealed permanent magnet motor, the GTD-2200 ensures powerful performance without compromising on energy efficiency.

  • User-Friendly Design: Its lightweight and compact construction facilitates easy installation, making it perfect for various applications.

  • Safety First: Equipped with a mechanical cone brake and permanent motor dynamic brakes, this hoist provides safe and controlled lifting, ensuring peace of mind during operation.

  • Durable Remote Control: The waterproof industrial remote control features a 5-meter lead, allowing for convenient operation even in challenging conditions.

  • Superior Pulling Power: The full metal 3-stage planetary gear train enhances the hoist's pulling force, making it ideal for heavy loads.

  • Rugged Construction: With a submersible sealed contactor that handles high amps, the GTD-2200 is built to withstand demanding environments and offers a higher duty cycle for extensive use.

  • Industry Compliance: Meets ASME B30.5 standards, with a D/d ratio of ≥18 and a rope safety factor of ≥3.5, ensuring a safe and reliable lifting experience.

Specifications

  • Part number: PN 752103 (12V)
  • Part number: PN 752104 (24V)
  • Rated line lift: 998 kg  (2,200 lb)
                               907 kg (2,000 lb) ANSI B30.5 rating
  • Line speed (at 1st layer of rope):
    • 12V : 4.5 mpm / 14.8 fpm 25A at no load
                3.5 mpm / 11.5 fpm 120A at full load
    • 24V : 5.8 mpm / 19 fpm 18A at no load
                 5.0 mpm / 16.4 fpm 50A at full load
  • Motor: 2,830 w / 3.8 hp 12V permanent magnet
  • Motor: 1,940 w / 2.6 hp 24V permanent magnet
  • Gear ratio: 3-stage planetary gear 211:1
  • Brake (outside the drum): Mechanical cone brake and permanent motor dynamic brakes together
  • Hoist construction: Aluminum die cast housings with cast iron drum
  • Drum size: 108 x 105 mm (4.3” x 4.1")
  • Control: Remote control with 5 m (17') lead
  • Rope type: Galvanized aircraft A7 x 19
  • Rope size: 6.4 mm x 30 m (1/4" x 100')

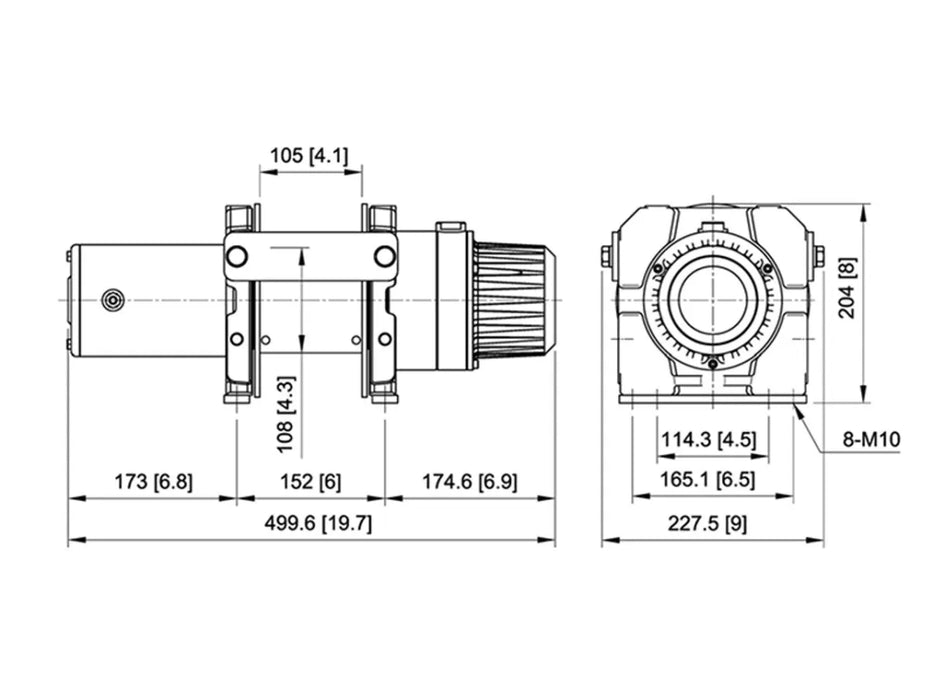

  • Mounting bolt pattern: 114.3 x 152 mm (4.5” x 6”) ; 165.1 x 152 mm (6.5" x 6")
  • Standard Compliance
    • CE Machinery Directive 2006/42/EC
    • CE EMC Directive 2014/30/EU
    • ASME B30.5

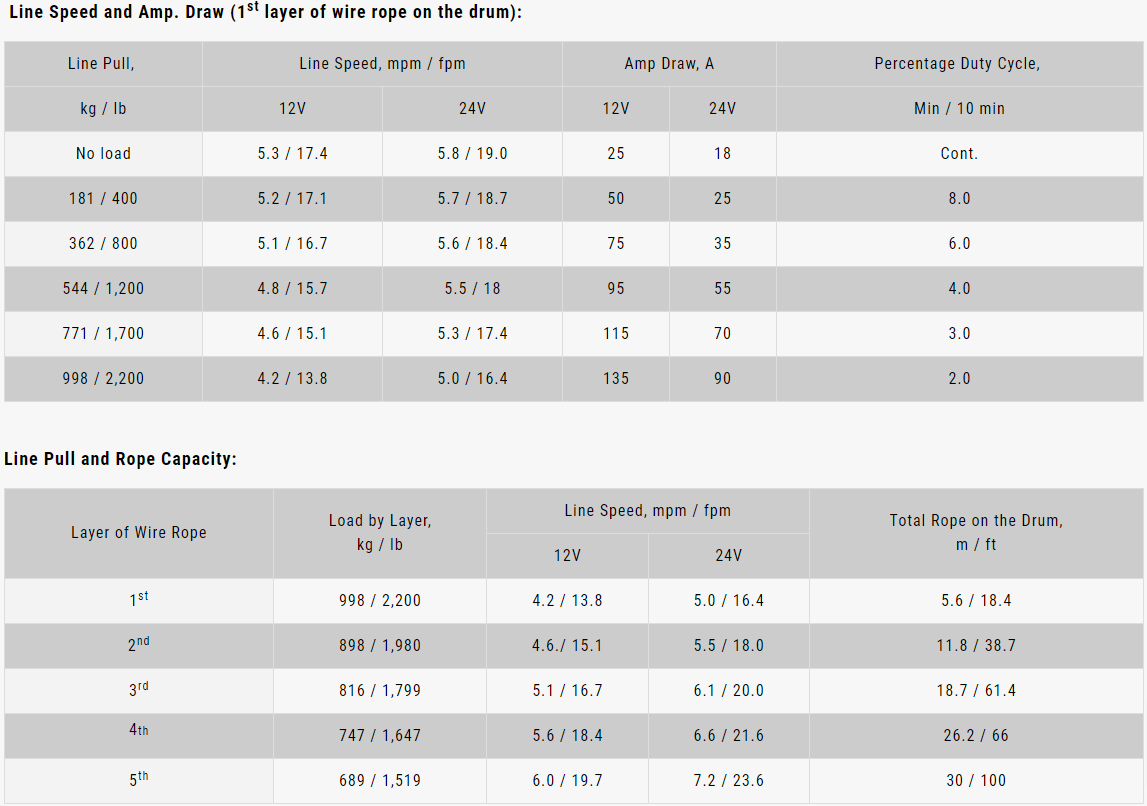

Performance

COMEUP GTD-2200 Heavy Duty 12V/24V Hoist | 998kg / 2,200lb

Warning

  • The hoist is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated load shown is based on the first layer of rope on the drum.
  • The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

  • Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Wire rope are not included under warranty.

Accessories

  • Wire rope 6.4 mm x 30 m w/clevis hook
  • Remote control with 5 m lead
  • Control Pack

Package

  • Hoist weight: 33.9 kg (including rope & hook)
  • Gross weight: 39.5 kg
  • Box dimension (L x D x H): 51.8 x 34.1 x 24cm
