COMEUP GTD-1200 Heavy Duty 24V Hoist | 544kg / 1,200lb | Bare Unit

544kg /1,200lb 24v Heavy Duty Hoist (GTD-1200)(w/o controls and rope assembly) by COMEUP

The GTD-1200 Heavy Duty Hoist is engineered for maximum strength and reliability, capable of lifting up to 544 kg.

This robust bare unit is ideal for heavy-duty applications, making it perfect for automotive workshops, construction sites, and industrial settings. With its durable construction, the hoist ensures longevity and dependable performance, even in the most demanding environments.

Features

• High-Efficiency Motor: Equipped with a low amp draw and a sealed permanent magnet motor, this product delivers powerful performance while conserving energy.

• Lightweight & Compact Design: Engineered for easy installation, this lifting solution is lightweight and compact, making it ideal for various applications.

• Enhanced Safety Mechanisms: Features a mechanical cone brake paired with permanent motor dynamic brakes for safe, controlled lifting and lowering of loads.

• Waterproof Remote Control: Comes with a waterproof industrial remote control with a 5-meter lead, ensuring reliable operation in challenging environments.

• Robust Gear Train: The full metal 3-stage planetary gear train provides greater pulling force, enhancing efficiency during operation.

• Durable Sealed Contactor: Submersible sealed contactor handles high amperage and allows for a higher duty cycle, ensuring longevity and reliability.

• Compliance and Safety Standards: Designed in compliance with ASME B30.5 standards, with a rope safety factor of ≥3.5 and a D/d ratio of ≥18, ensuring a secure and reliable lifting experience.


Specifications

• Part number: PN 751265 (24V)  w / o controls and rope assembly
• Rated load: 544 kg / 1,200 lb
• Line speed (at 1^st layer of rope):
  24V : 5.9 mpm / 19.4 fpm 15A at no load
           5.0 mpm / 16.4 fpm 50A at full load
• Motor: 900 w / 1.2 hp 12/24V permanent magnet
• Gear ratio: 3-stage planetary gear 216:1
• Brake (outside the drum): Mechanical cone brake and permanent motor dynamic brakes together
• Hoist construction: Aluminum die cast housings with cast iron drum

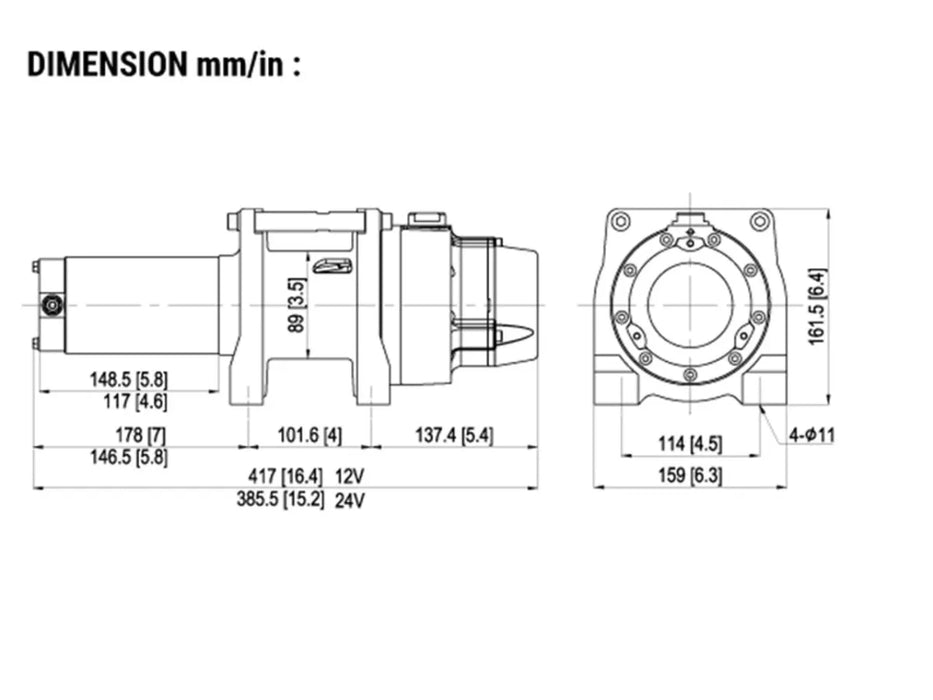

• Drum size: 89 x 73 mm (3.5” x 2.9")
• Control: Remote control with 5 m (17') lead
• Rope type: Galvanized aircraft A7 x 19
• Rope size: 4.8 mm x 18.3 m (3/16" x 60')
• Mounting bolt pattern: 114 x 101.6 mm (4.5” x 4”)

• Standard Compliance

  • CE Machinery Directive 2006/42/EC

  • CE EMC Directive 2014/30/EU

  • ASME B30.5

Performance

Warning

• The hoist is not intended to be used in any manner for the movement or lifting of personnel.
• The rated load shown is based on the first layer of rope on the drum.
• The rope winding on the drum shall remain 5 wraps from the drum.


Warranty

• Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.

Accessories

• Wire rope 4.8 mm x 18.3 m w/clevis hook (Sold separately)
• Remote control with 5 m lead (Sold separately)
• Control box (Sold separately)

Package

• Hoist weight (including rope): 15.3kg
• Gross weight : 20.2kg
• Box dimension, (L x D x H) : 50.4 x 21.4 x 36.3cm
