Carbon 4500lb ATV Trailer Winch with Synthetic Rope and Wireless Controller | CW-45

SKU CW-45
Original price $475.00 - Original price $475.00
Original price $475.00
$475.00
$475.00 - $475.00
Current price $475.00
Free Metro Shipping! 🚚
4x4 Down Under Buy Now Pay Later Options
    WHY SHOP WITH US?
  • Fast Shipping with Free Insurance
  • Australian Owned and Operated
  • Expert Before & After Sales Service
  • Easy Returns & Full Warranty Support

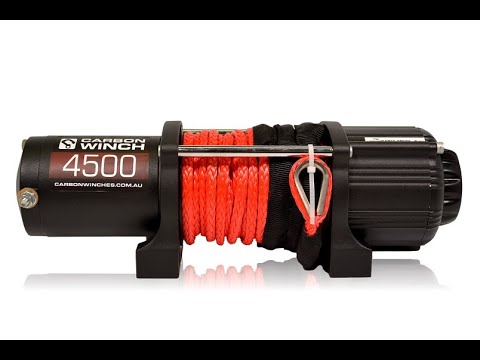

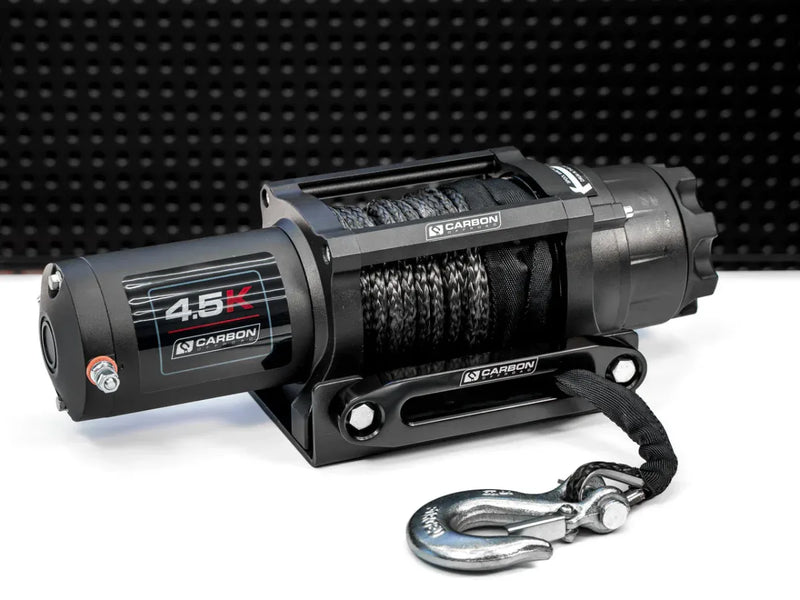

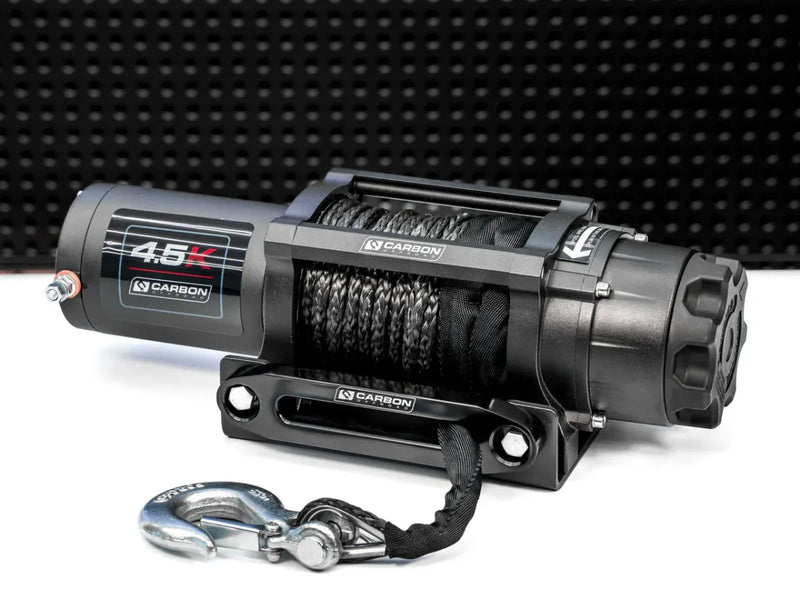

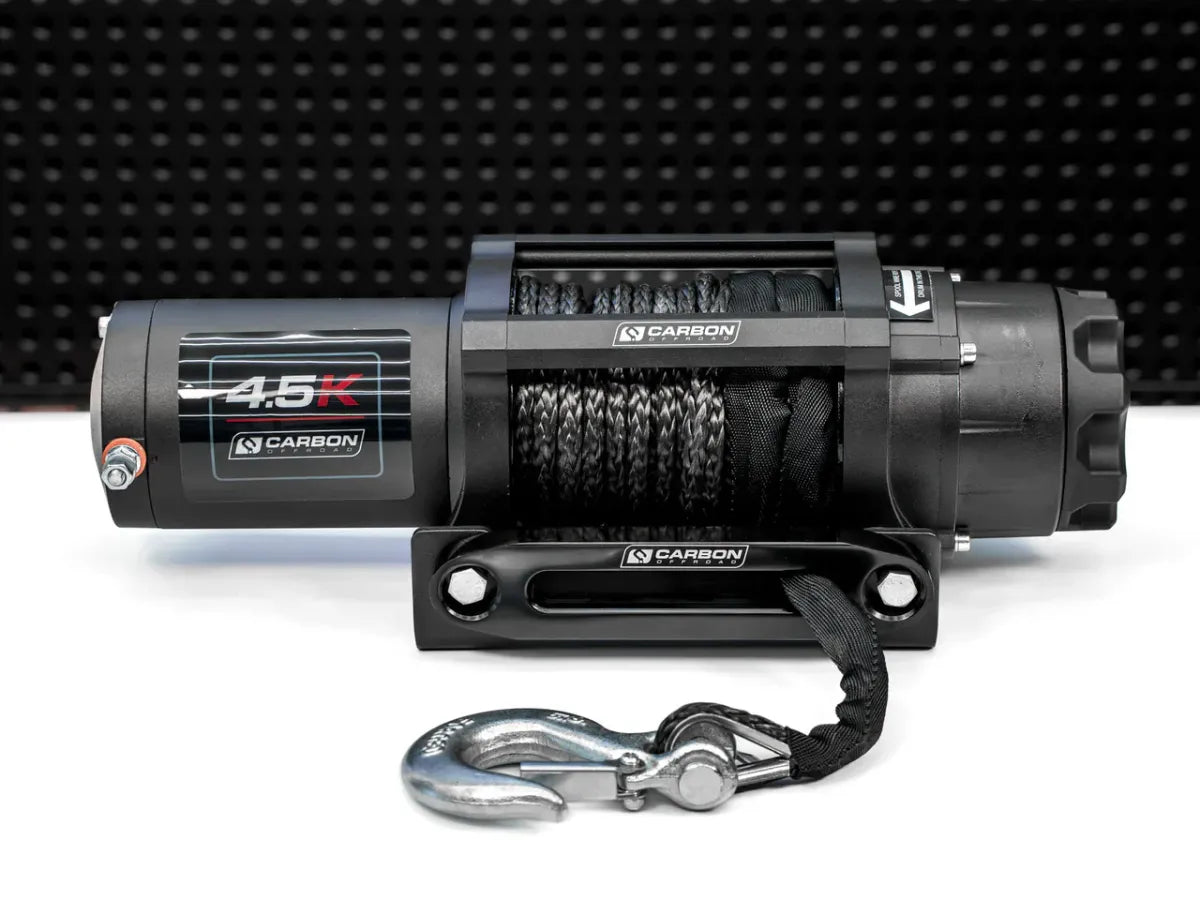

4500lb ATV Trailer Winch with Synthetic Rope and Wireless Control by Carbon Offroad

The Carbon Offroad 4,500 lb Capacity ATV/UTV winch for big ATV, UTV and sides x sides, and car/boat trailers. This winch has been upgraded and all stock from September 2021 onward have been re-designed to include better clutch handle operation, seals allowing use in wet conditions, better quality finish and components all for the same price.

A small compact winch with integrated mounting plate makes mounting this winch as simple as it can get to an existing pedestal on a trailer, or into a winch location on an ATV or Buggy.

With wireless remote control included free and a handlebar rocker switch control option, it's a very versatile winch setup.

Perfect for small car and equipment or boat trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load crates and open cattle gates on Livestock Truck Trailers.

A great small all rounder winch to make work easier or to get your buggy out of the bog.

FEATURES

  • 4,500 lb (2,040 kg ) line pull
  • Power in and power out
  • Winch drum centred avoids the interference of rope and provides streamlined appearance.
  • Mechanical load holding and dynamic brake for 100% braking.
  • High efficiency, low amp draw and sealed permanent magnet motor
  • Full metal 3 stage planetary gear train for greater pulling force
  • Sliding pin and ring gear clutch for rapid wire rope payout
  • Synthetic rope

SPECIFICATIONS

  • Part number: CW-4.5
  • Rated line pull: 4,500 lbs, (2040kg) single-line
  • Motor: 12V DC 1.9HP motor
  • Remote Control: Handlebar Mini-Rocker
  • Wireless Remote Control: included
  • Geartrain: 3-Stage Planetary.
  • Gear Ratio: 176:1
  • Clutch (freespooling): Split Ring Gear
  • Brake: Dynamic and mechanical braking
  • Drum Diameter/Length: 2.5’’/4.4’’ (60.5mm/112mm)
  • Synthetic Rope: 43’, 1/4’’ diameter ( 13m, 6.35 diameter)
  • Fairlead: Aluminium Hawse
  • Mounting Bolt Pattern: 3.0’’ x 6.59’’ ( 76mm x 167mm )
  • Winch Dimensions ( L x W x H ): 14.9'' x 4.7'' x 4.5'' (379x 120 x 115mm )
  • Packing Dimensions( L x W x H ): 19.7x 10.6'' x 6.3'' ( 500 x 270 x 160mm )
  • Shipping Weight: 12.2kg

12V DC PERFORMANCE SPECIFICATIONS (first layer of drum)

Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 20.4(6.2) 31 Amps 1/4500(2040)
1000(453) 14.2(4.3) 65Amps 3/3750(1700)
2000(907) 10.9(3.3) 96Amps 3/3510(1595)
3000(1360) 7.7(2.4) 125Amps 4/3300(1500)
4500(1815) 4.9(1.5) 175.Amps


PACKAGING SPECIFICATIONS

SKU CW-45
Brand Carbon Offroad
Shipping Weight 13.0000kg
Shipping Width 13.000m
Shipping Height 25.000m
Shipping Length 35.000m
Assembled Width 54.000m

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
P.C. (Brisbane, AU)
Product Quality:
Very bad
Very good
Product Review: Winch works a treat loading the 14 foot tinny with a 50HP Johnson Etec.
Service Experience:
Very bad
Very good
Shopping with 4x4 Down Under: Sales service and delivery was first Class.
First class!

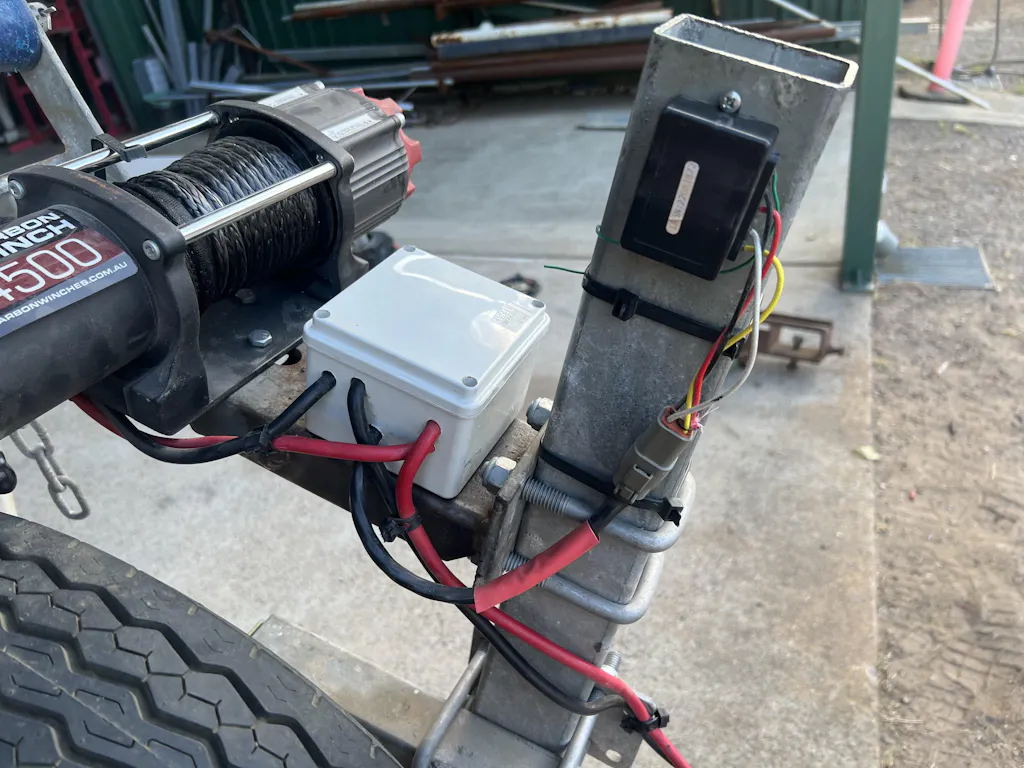

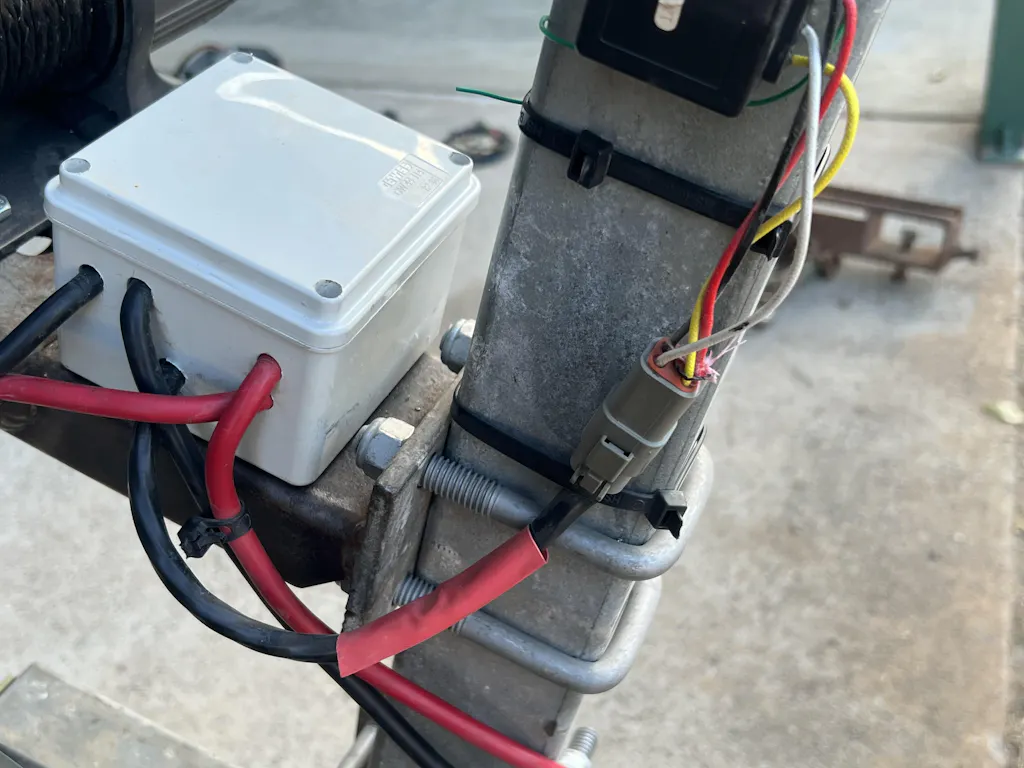

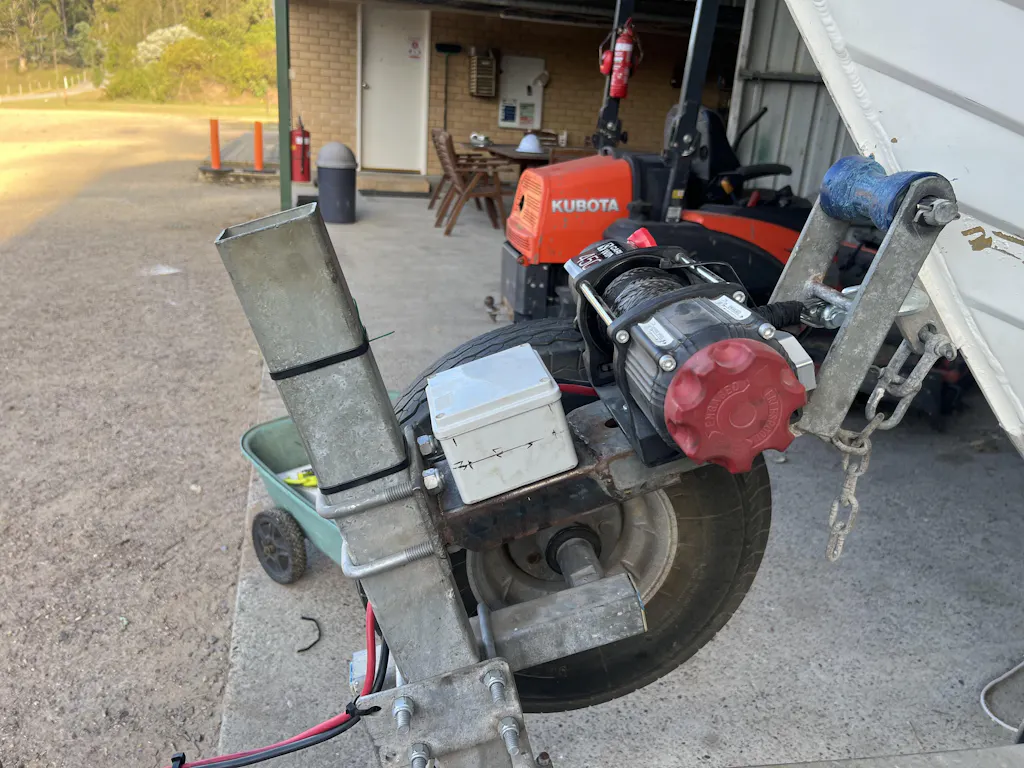

I mounted the relay in the junction box and then ran power cables to the winch and an Anderson plug for the Anderson plug on my car, with a 40 amp contact breaker set up so power is no problem.

I also ran a cable with a Deutsch plug so I could connect either the radio remote or the cable control to the unit.

The only improvement I could make would be to have a remote control which is more waterproof than the one that came as standard.

Thank you for the feedback Paul. Your setup looks great! Please don't hesitate to reach out if we can assist you with anything else.
