110W or 200W 12v Flexible Shingled Mono Solar Panel Kit from Atem Power
Introducing the ATEM POWER 110W or 200W 12v Flexible Shingled Mono Solar Panel Kit, a revolutionary solar solution that refuses to compromise on flexibility, efficiency, and style. With ATEM POWER's shingled flexible solar panels, users can experience unmatched performance and sleek aesthetics thanks to the tailored shingled cell technology.
By eliminating ribbons, busbars, and soldering processes, the shingled flexible solar panel provides pure cell exposure to sunlight, resulting in a remarkable 15~20% higher output compared to traditional panels. This advancement significantly reduces energy losses and eliminates hot spots, ensuring optimal efficiency.

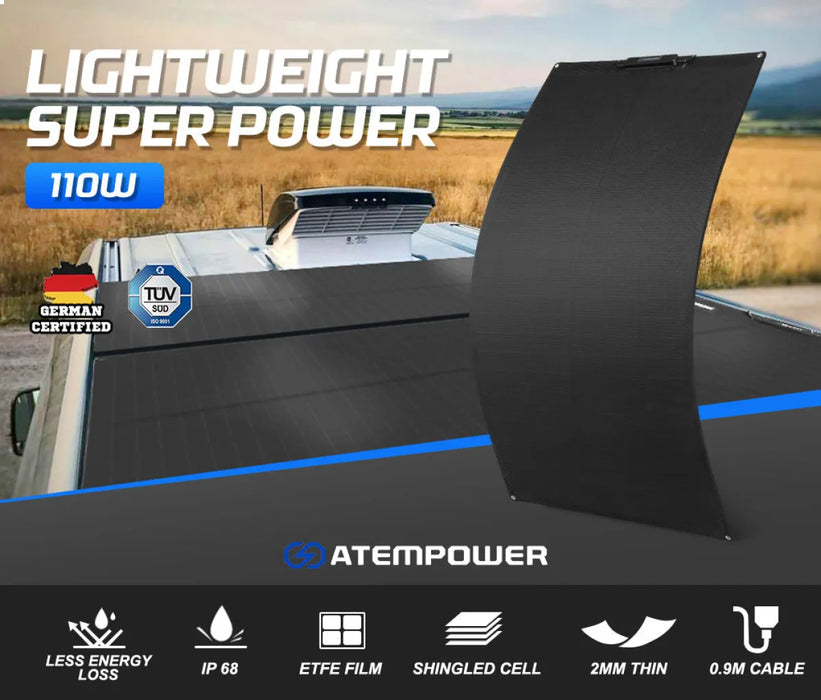

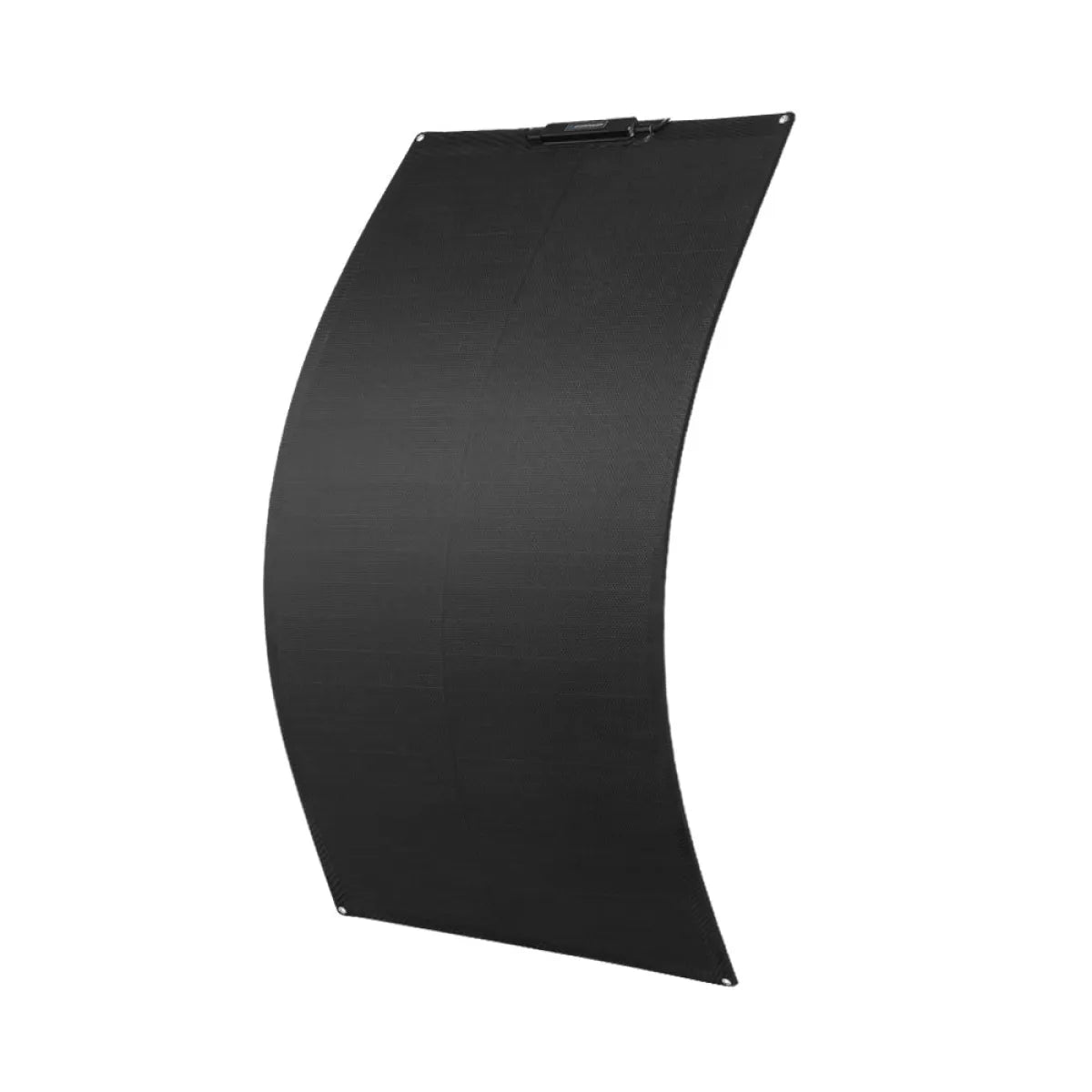

ATEM POWER has further integrated ETFE tech into this panel to maximize light penetration rates, further enhancing its overall efficiency. With an IP-68 rating and a slim 2mm lamination, this solar panel is designed to withstand challenging conditions, while its lightweight and sleek design allows for easy installation on curved surfaces, providing an aesthetically pleasing appearance.
When it comes to solar power, ATEM POWER's 110W or 200W 12v Flexible Shingled Mono Solar Panel Kit sets a new standard. Embrace the future of efficient and stylish solar energy with this innovative solution.
Why limit yourself to a solar panel that just doesn't cut it? With ATEM POWER's shingled flexible solar panels, you don't have to compromise on flexibility, efficiency, or style. Our shingled cell technology is tailored to meet the needs of solar power users, delivering unbeatable performance and sleek aesthetics. With the shingled cell technology, this 110W/200W solar panel offers pure cell exposure to sunlight with no interruptions. By eliminating the need for ribbons, busbars, and soldering processes, the shingled flexible solar panel offers 15~20% more output than traditional panels, significantly reducing energy losses and hot spots.
ATEM POWER also integrates ETFE tech into this panel for higher light penetration rates. The result? A solar panel that's not only powerful but also incredibly efficient. Its IP-68 rating and 2mm thin lamination allow it to endure tough conditions, while its lightweight and sleek design enable easy installation on curved surfaces for an aesthetic appeal.
Features
-

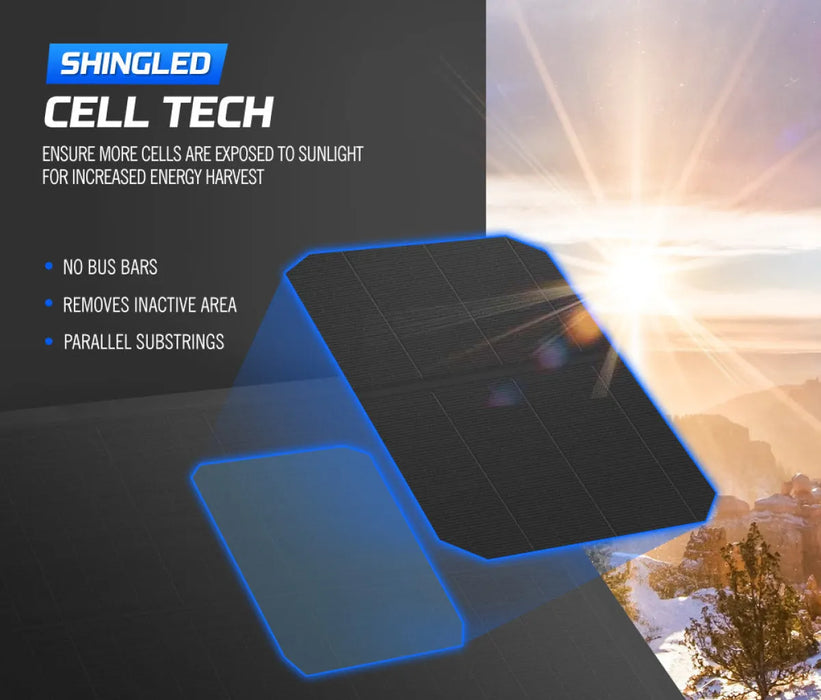

Shingled Cell Tech: Get more energy from the sun with shingled cell tech that uses a string of strips instead of ribbons and busbars for maximum energy output.
-
Built to Last: Our shingled flexible solar panel offer improved reliability and durability, able to withstand external forces that cause failure in conventional panels.
-

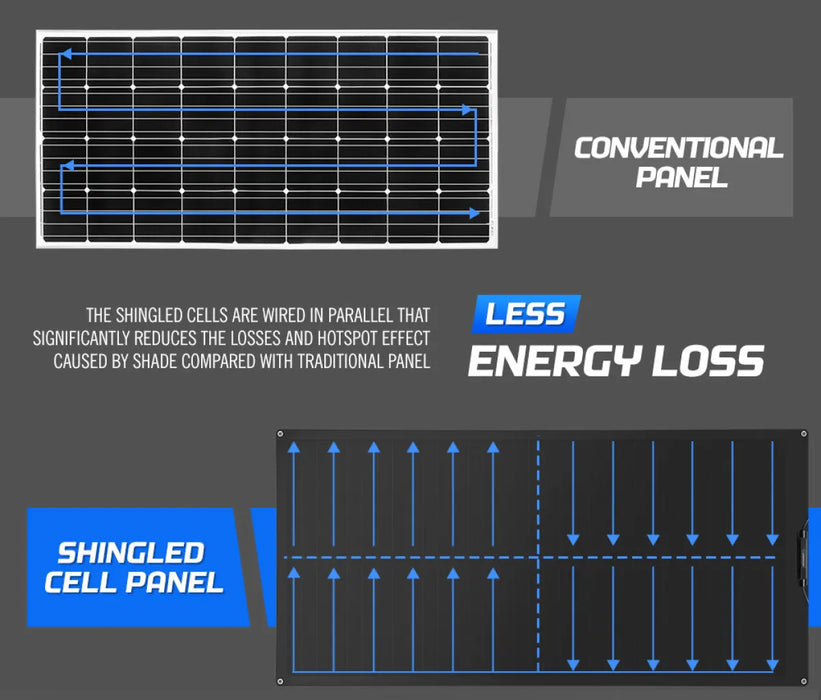

Maximum Efficiency: Our shingled cells wired in parallel minimize energy losses and the hotspots caused by shade, ensuring optimal energy output.
-

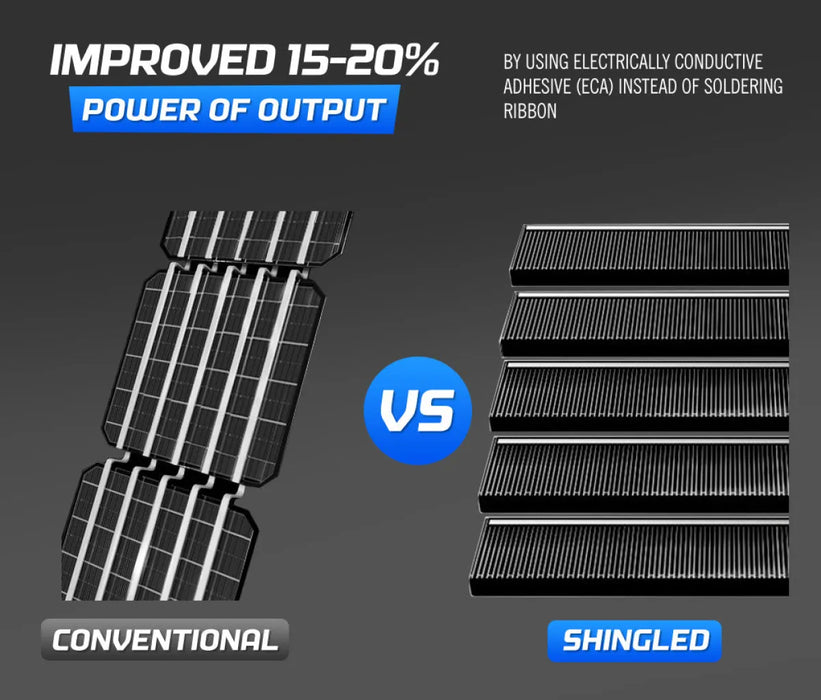

Higher Output: Get 15-20% more output than traditional panels with our electrically conductive adhesive (ECA) technology that joins our panels together.
-
Subversive ETFE Tech: Our solar panel use ETFE technology, allowing for higher light penetration, excellent flexibility, and more heat resistance than PET films.
-

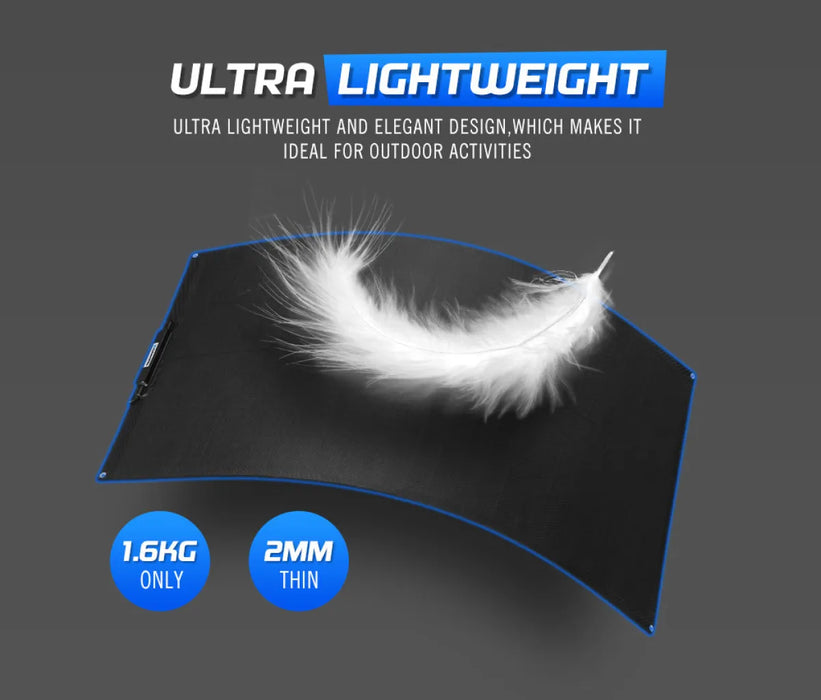

Thin is In: Our shingled solar panels are laid flat at just 2mm thick for a stealthy solar setup. Lightweight at only 1.6kg, transportation and installation are a breeze.
-
Weather Any Storm: Our shingled panels/shingled flexible solar panel have an IP68 waterproof rating, ensuring they can withstand any weather conditions.
-

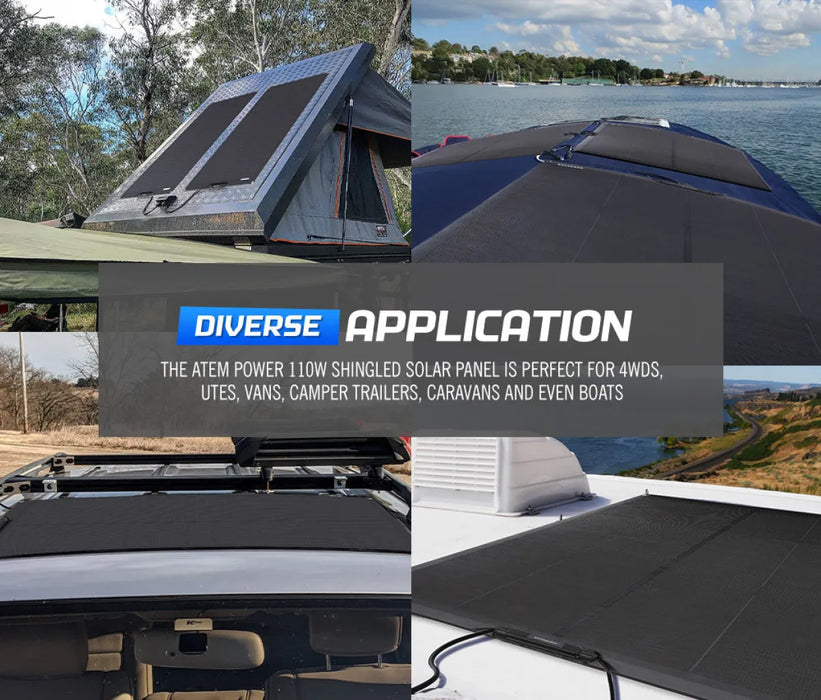

Versatile Compatibility: Our flexible solar panel work seamlessly with a wide range of batteries and perfect for 4WDs, utes, caravans, camper trailers, and boats.
-
Aesthetically Superior: Our 110W shingled flexible solar panel boast a clean, simple, and sleek design that is as visually appealing as it is functional.
-
Easy to Secure: Our shingled flexible solar panel can be installed with adhesives or with the four reinforced metal mounting holes, ensuring a secure fit every time.
-
Warranty: 3 Year Manufacturer Warranty
Specifications
|
Material: |
Shingled Cells
|
Shingled Cells |
| Maximum Power: |
110W |
200W |
| Open-Circuit Voltage (VOC): |
22.36V |
24.7V
|
| Short-Circuit Current (ISC): |
6.25A |
10.14A |
| Maximum Power Voltage (VMP): |
18.64V |
20.9V |
| Maximum Power Current (IMP): |
5.9A |
9.57A |
| Maximum System Voltage: |
100V |
100V |
| Temperature Range: |
-20°C~ 65°C |
-20°C~ 60°C |
| Power Tolerance: |
± 3%
|
± 3% |

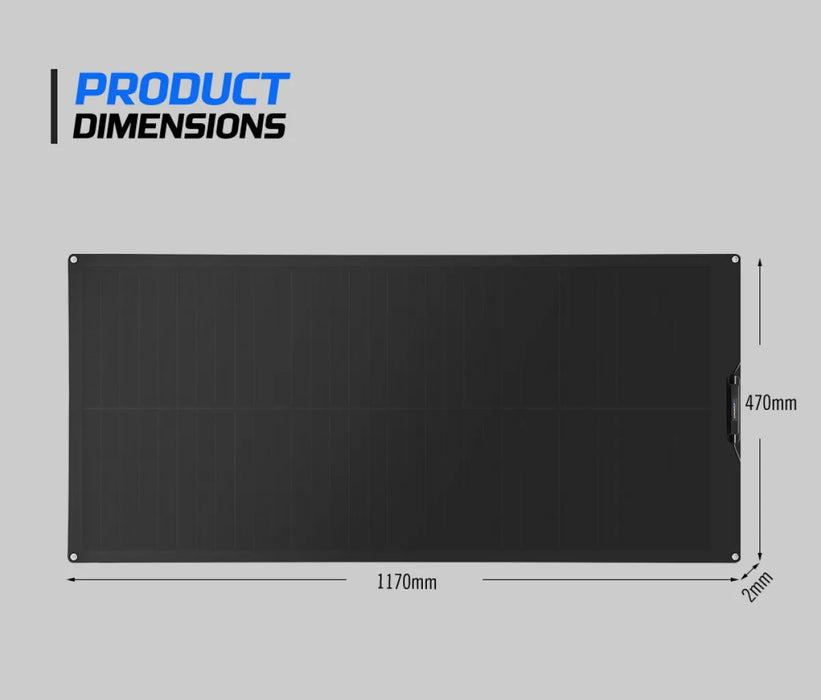

| Product Size: |

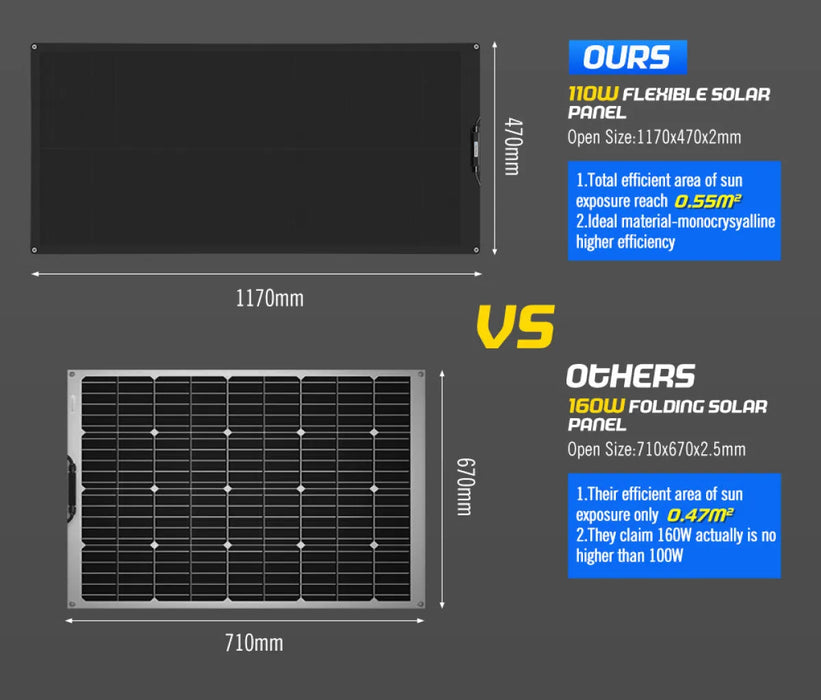

117x47x0.2cm
|
|
| Product Weight: |
1.6kg
|
|
| Package Size: |
120x50x4cm |
128x73x4.5cm |
| Gross Weight: |
3.7kg
|
4.5kg |
