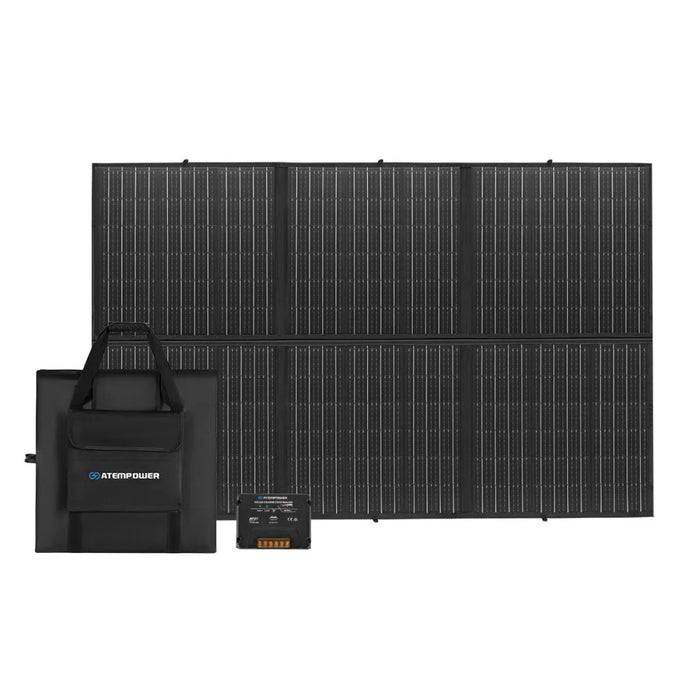

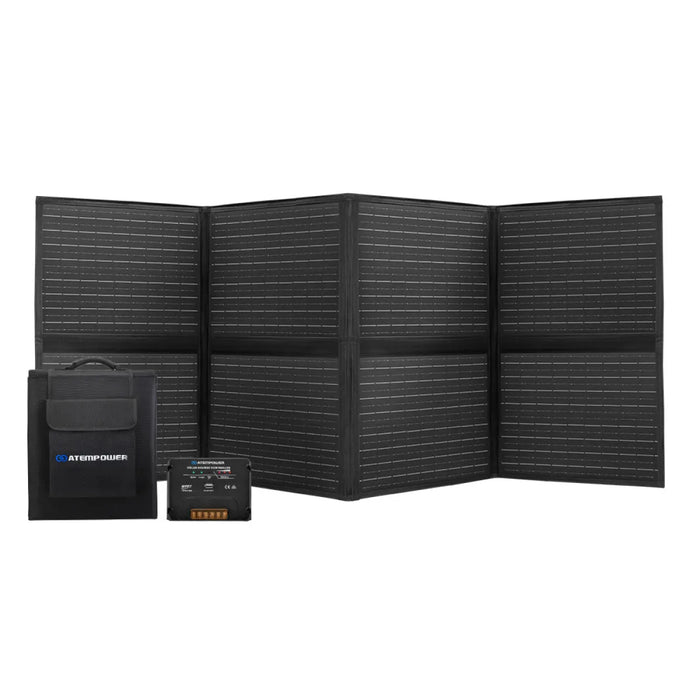

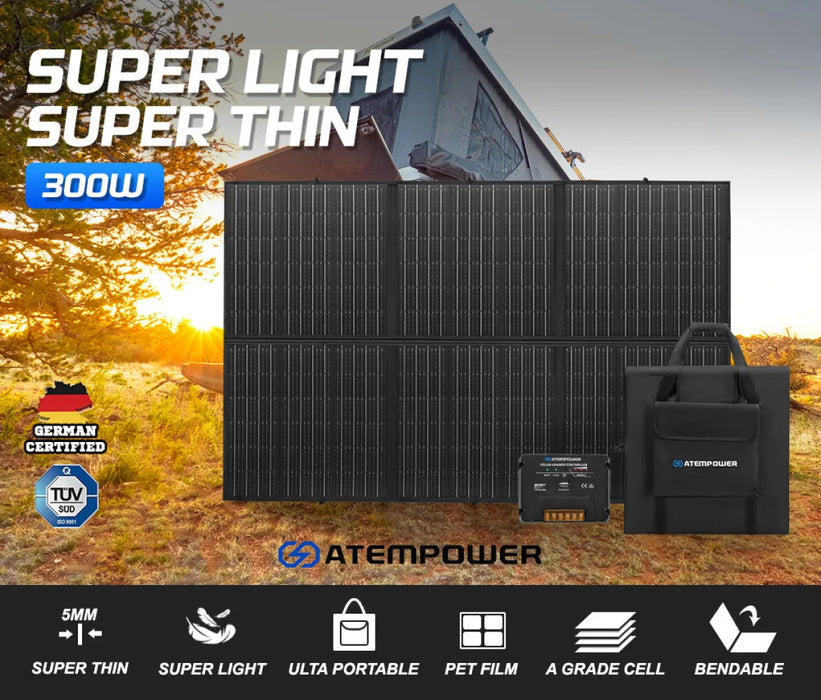

The ATEM POWER 200W or 300W 12V Portable Solar Folding Blanket Mat is a must-have companion for adventurers seeking connectivity in remote and rugged environments. This portable solar blanket combines portability and power, ensuring you stay connected on your journeys, whether it's on sun-kissed shores, majestic mountains or deep in the outback bush.

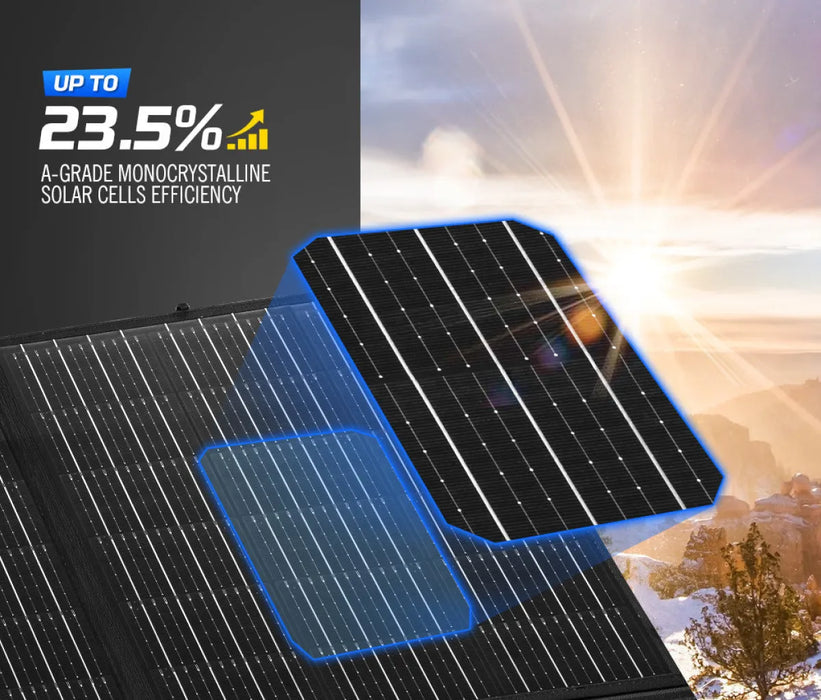

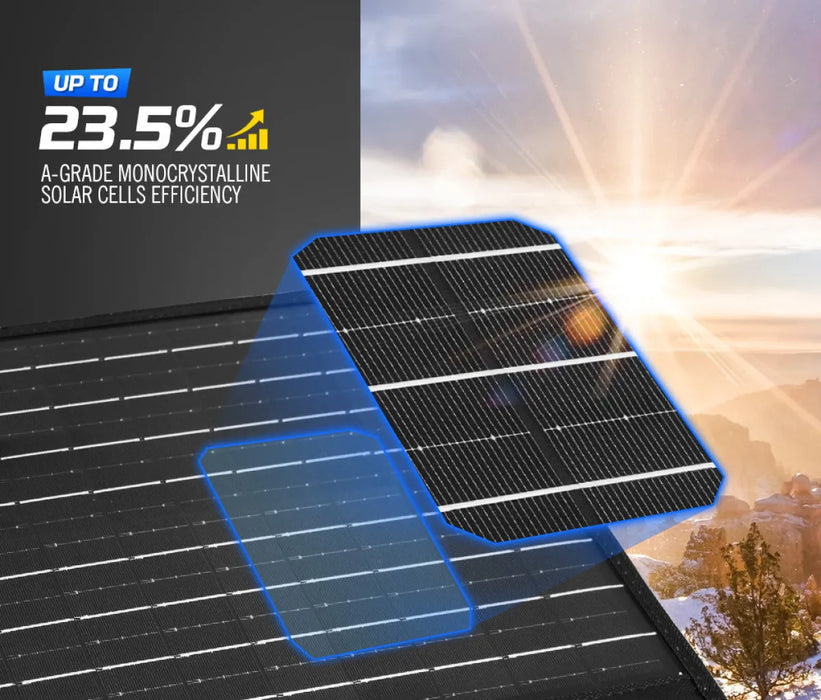

Equipped with A-grade mono-crystalline solar cells boasting an impressive energy conversion efficiency of 23.5%, this solar blanket delivers maximum power output. The auto-optimisation function guarantees uninterrupted charging, allowing you to rely on a steady and efficient energy supply.

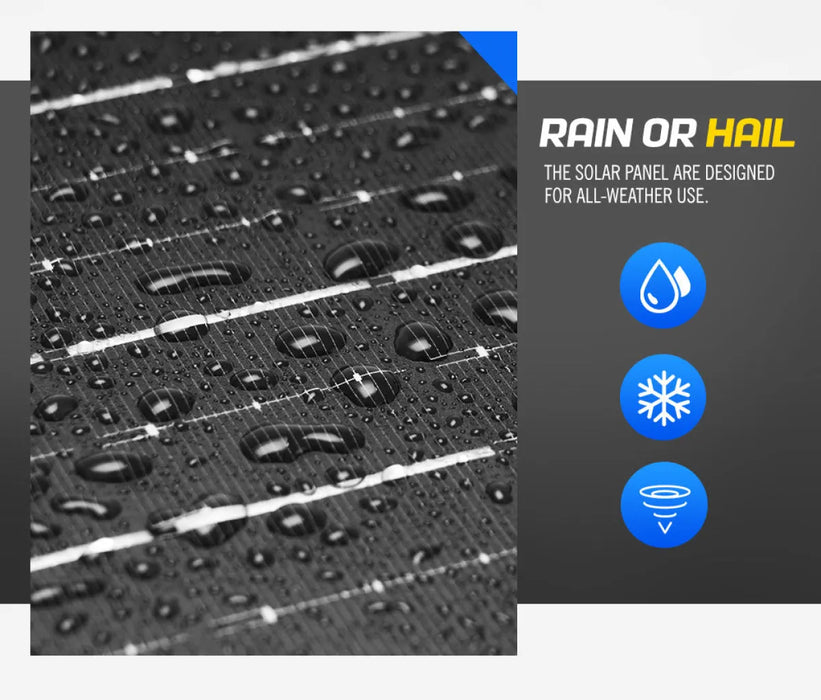

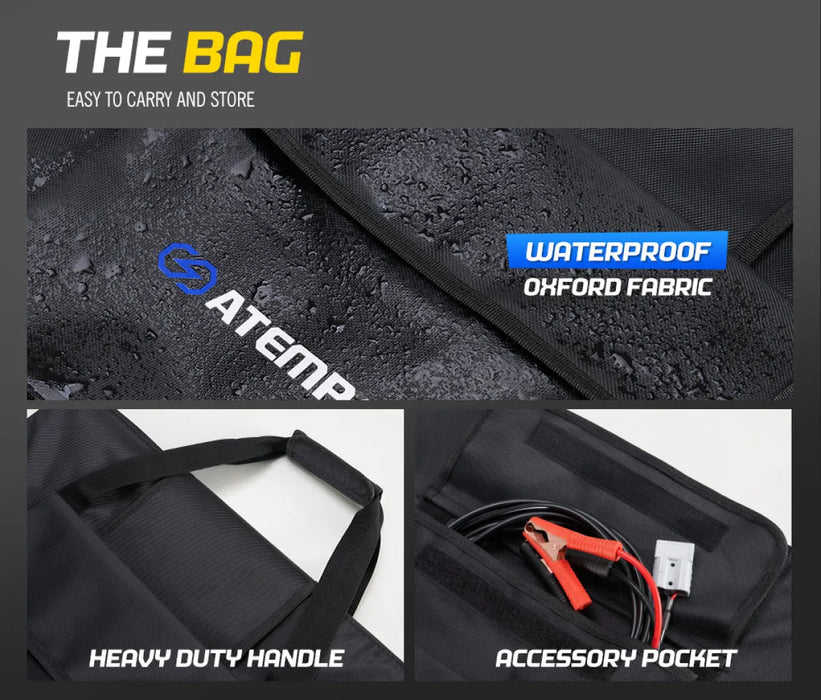

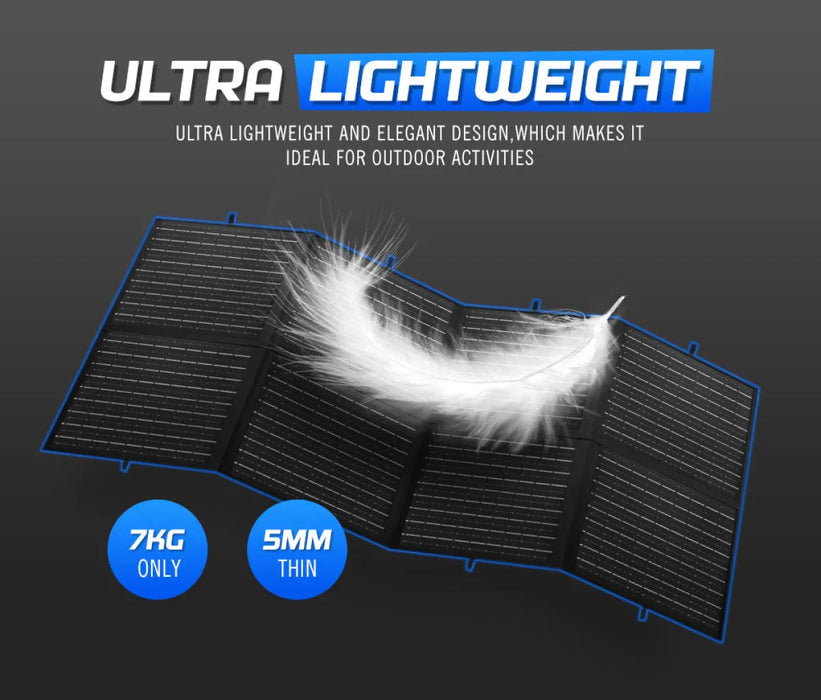

Built to withstand demanding conditions, the 200W/300W solar blanket is crafted from durable poly/cotton canvas. Despite its robust construction, it remains lightweight and easily compressible to just 1/8th of its size. Weighing in at a mere 7.4kg/10.36kg, it won't add unnecessary burden during your adventures. Additionally, the lithium-compatible MPPT controller enhances energy conversion, providing 20% more energy compared to a traditional PWM controller.
Stay connected, stay safe, and keep the adventure alive with the ATEM POWER 200W or 300W 12V Portable Solar Folding Blanket Mat. This reliable and portable solar solution ensures you never miss a moment of your exciting journey while maintaining a sustainable and eco-friendly power source.
Solar Panel Blanket Mat |
200W | 300W |
Material: | A-Grade Monocrystalline | A-Grade Monocrystalline |
Color: |
Black | Black |

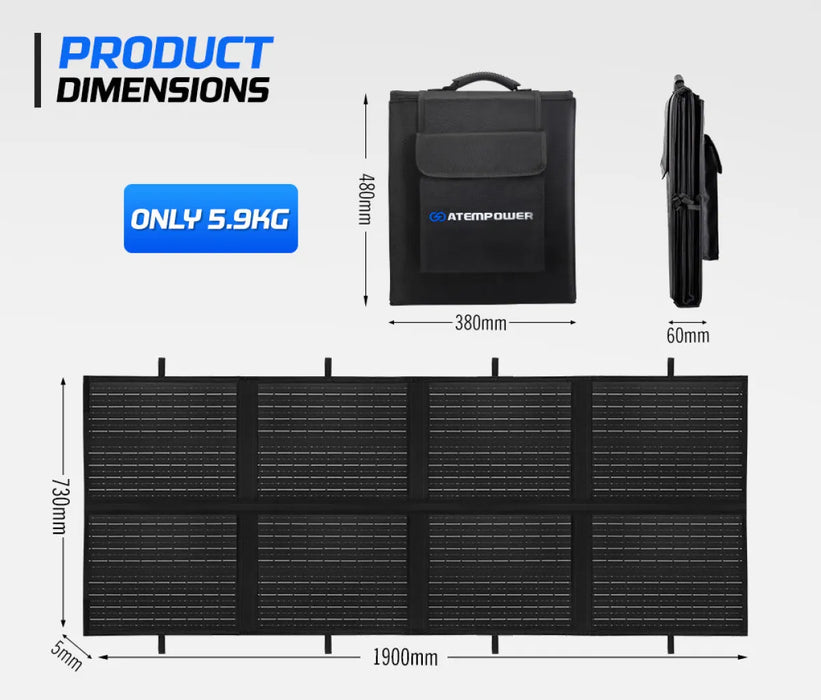

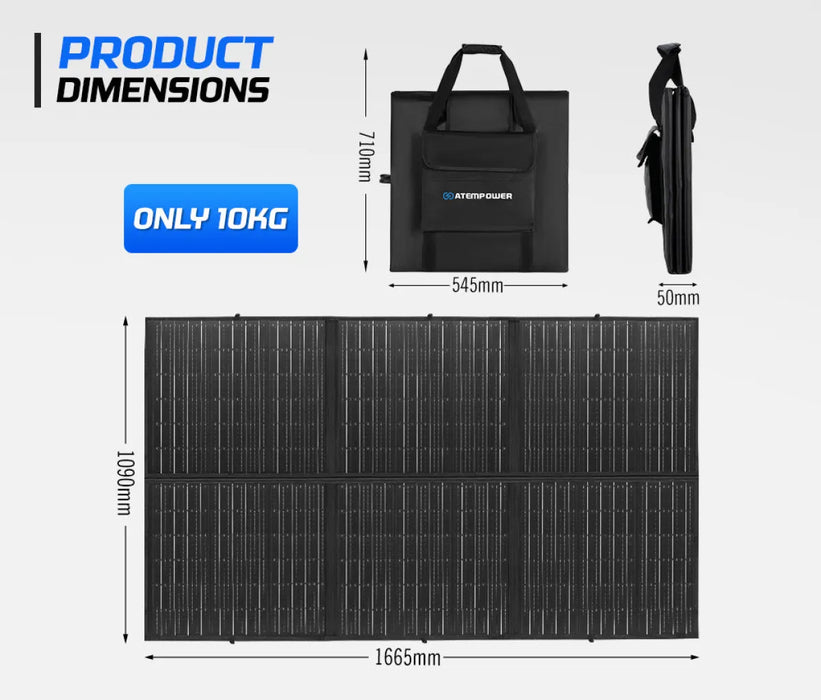

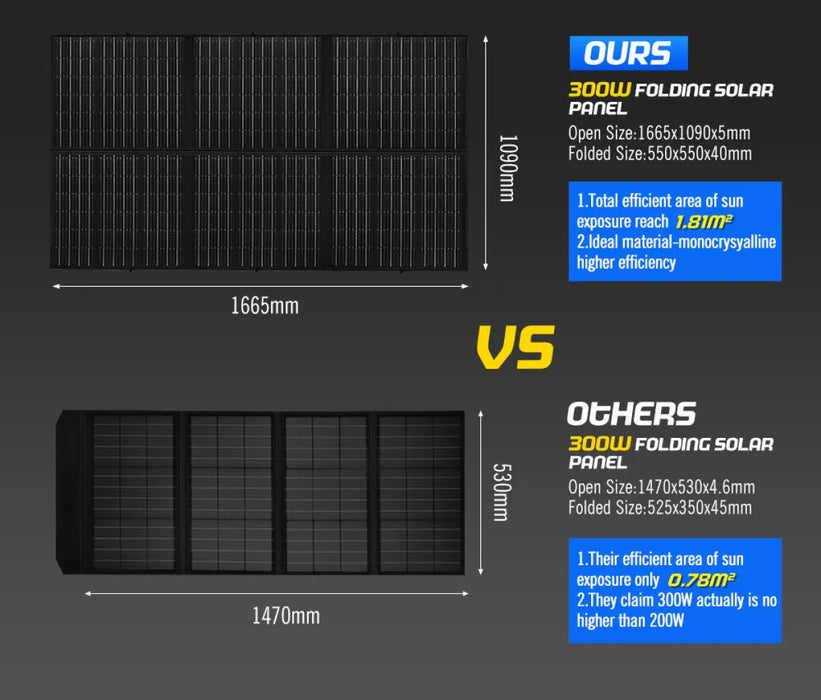

Product Dimension(Opened): |
1900x730x5mm | 1665*1090*5 mm |
Product Dimension (Closed): |
480x380x60mm | 550*550*40 mm |
Gross Weight: |
7.7kg | 10.36kg |
Maximum Power: |
200w | 300w |
Working Temperature: |
22.4V | 22.4V |
Short Circuit Current (ISC): |
11.75A | 17.7A |
Voltage at Pmax (VMP): |
18.2V | 18.2V |
Current at Pmax (IMP): |
10.99A | 16.5A |
Temperature Range: |
-40°C (-40℉) ~ +85°C (185℉) | -40°C (-40℉) ~ +85°C (185℉) |

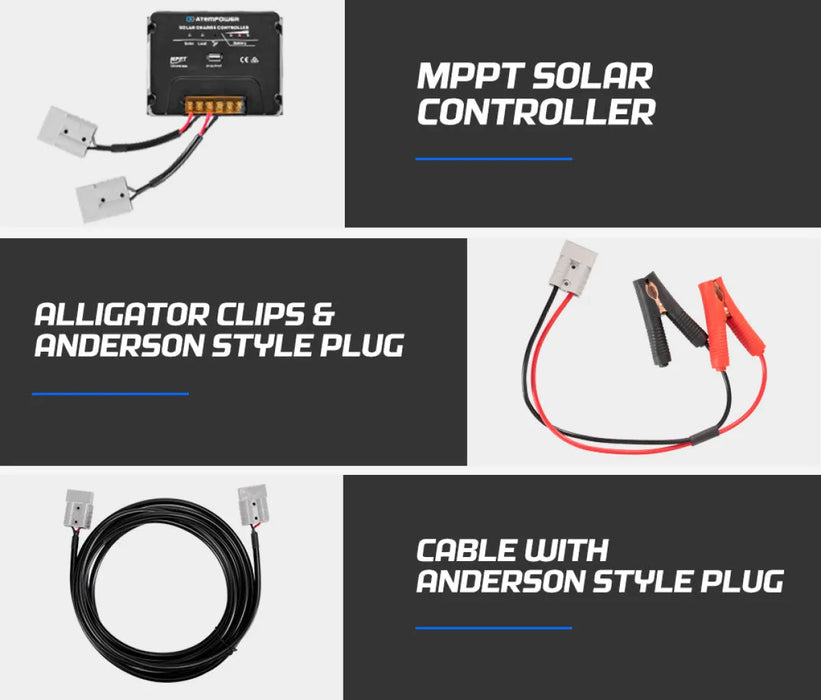

Controller | ||
Rated Charge Current: |
20A | 20A |
Rated Discharge Current: |
20A | 20A |
Rated Voltage: |
12V/24V Auto Work | 12V/24V Auto Work |

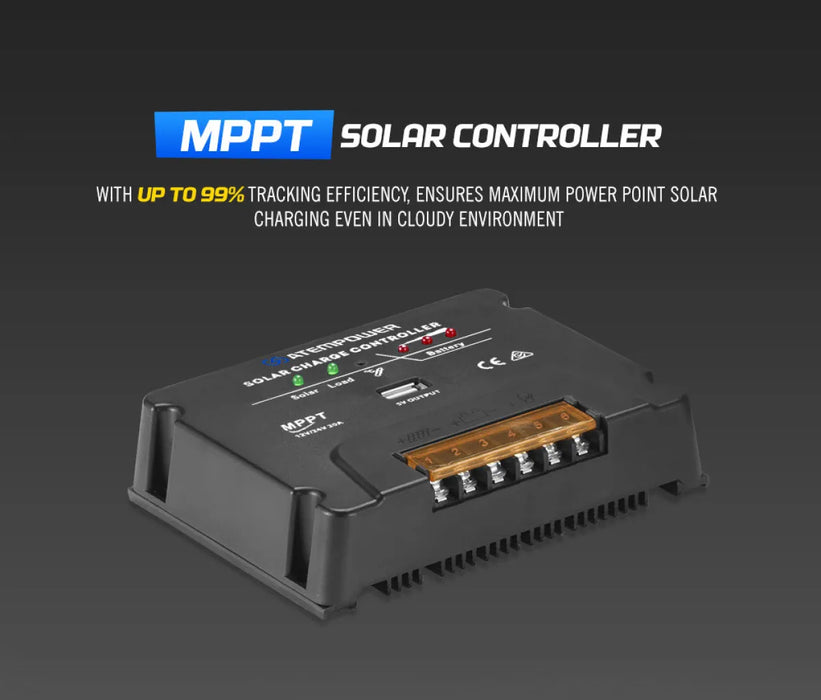

MPPT Efficiency(Max): |
99% | 99% |
Over Load, Short Circuit Protection: |
≥1.5 Rated Current | ≥1.5 Rated Current |
No Load Current: |
<10mA | <10mA |
Over Voltage Protection: |
16V; x2/24V | 16V; x2/24V |
Voltage of Stop Charging: |
14.7V; x2/24V | 14.7V; x2/24V |
Discharge Recovery Voltage: |
12V; x2/24V | 12V; x2/24V |
Over Discharge Voltage: |
10.8V; x2/24V | 10.8V; x2/24V |
USB Output: |
5V 1A | 5V 1A |
Working Temperature: |
-31℉ (-35℃) ~ +131℉ (+55℃) | -31℉ (-35℃) ~ +131℉ (+55℃) |
