VRS 9500lb 4wd Winch With Synthetic Rope | V9500S | IP68 Rating - Electric Winch

VRS 9500lb 4x4 Winch With Synthetic Rope | V9500S | IP68 Rating

by VRS
SKU V9500S
Save $91.00 Save $91.00
$1,090.00
$1,090.00 - $1,090.00
$1,090.00
$999.00
$999.00 - $999.00
$999.00
4x4 Down Under Buy Now Pay Later Options
    WHY SHOP WITH US?
  • ✔ Fast Shipping with Free Insurance
  • ✔ Australian Owned and Operated
  • ✔ Expert Before & After Sales Service
  • ✔ Easy Returns & Full Warranty Support

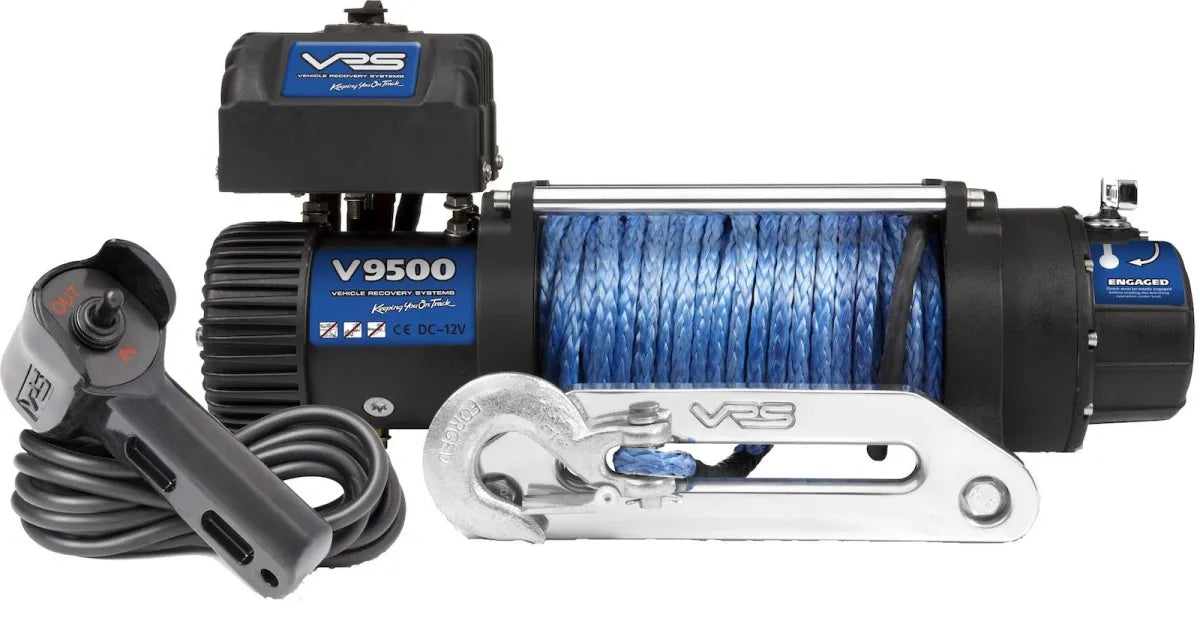

9500lb 4WD Winch with Synthetic Cable V9500S by VRS

When you’re out there in the thick of it, you need some serious machinery on your side. With an impressive 4300kgs of pulling power and fast line speed under load, the VRS 9500lb winch is the one vehicle recovery winch no driver, from the novice to the serious off-roader, should be without. Even in the most extreme conditions, this tough nut has the muscle to haul your vehicle back on track; fast. Get serious with your safety and get yourself a VRS winch.

Designed in Australia to suit our tough conditions and environment, the VRS Winch comes with a fully sealed contactor pack, 5.3hp motor, sealed and insulated drum and a 3 stage planetary gear system.

This winch comes with a Synthetic Rope and is rated up to 9500lbs of load.

The drum of the winch experiences small horizontal movements while under load. This side to side movement has presented a challenge to keeping water out of the gearbox and motor housing up until now. The VRS IP68 waterproof winch has a new double lipped seal design that keeps the water and silt out of the gearbox during this sideway movement.

This winch is IP68 Rated for dust, dirt and waterproofing.

FEATURES

  • Heavy duty sealed high amperage contactor (winch relay) controller
  • Textured UV and corrosion resistant finish
  • Sealed to resist water penetration
  • Stainless steel hardware and fittings
  • Multi-segmented cam activated brake
  • Designed in Australia for the World
  • Limited Lifetime mechanical components warranty
  • 2 Year electrical warranty
  • Full parts inventory and back up
  • Sealed IP68 Rating to STOP water penetration

STANDARD ACCESSORIES

  • Detachable Contactor Pack
  • Remote control
  • Synthetic Rope with Hook
  • Roller fairlead
  • 1.83m (6′) 25mm battery lead
  • Handsaver strap

Specifications

  • 9500lb/4310kg rated line pull
  • Series wound 5.3hp/3.9kw 12 volt motor
  • 3 stage planetary gear train 216:1 ratio
  • Sliding ring gear clutch
  • Automatic in the drum brake
  • Stainless steel hardware and fittings
  • Heavy duty high amp contactor
  • 5/16" x 92" - 8.3mm x 30M steel cable with roller fairlead
  • Weight 39kg with wire cable

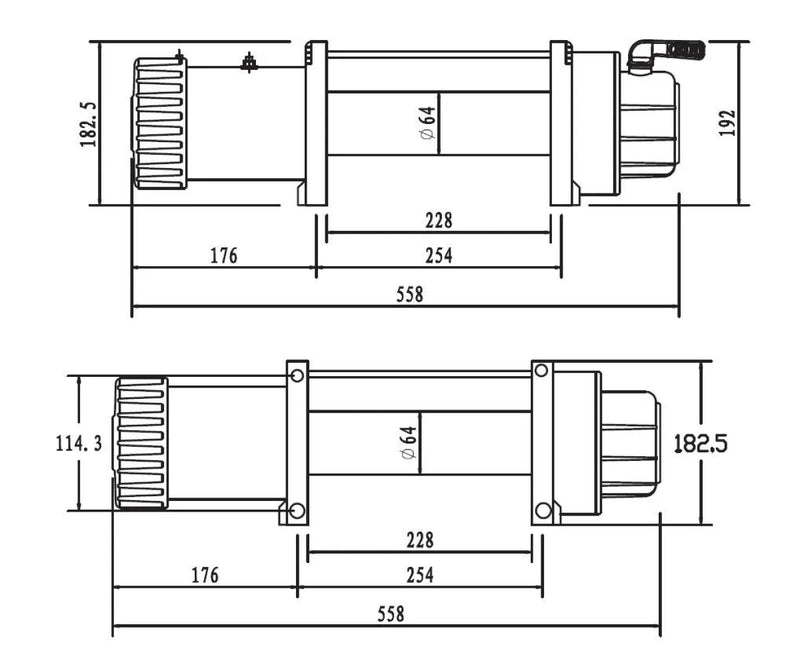

  • Dimensions 23” x 6.6” x 8.4” – 552 x 68 x 214mm
  • Mounting bolt pattern 10”x 4.5” - 254 x 114.3mm

LINE PULL AND ROPE CAPACITY

Layer of wire rope Line Pull kg / lb Total Rope on the Drum m/ft
1st Layer 4,310 / 9,500 6 / 19.6
2nd Layer 3,629 / 8,000 13.2 / 43
3rd Layer 3,266 / 7,200 22 / 72
4th Layer 2,994 / 6,000 30 / 100



LINE SPEED AND AMP. DRAW (1ST LAYER OF ROPE ON THE DRUM)

Line Pull kg/lb Line Speed mpm/fpm Amp. Draw 12V
No Load 10.8 / 35.4 80
907 / 2,000 4.5 / 14.76 160
1,814 / 4,000 3.7 / 12.14 220
2,722 / 6,000 2.98 / 9.79 280
3,629 / 8,000 2.6 / 8.53 320
4,310 / 9,500 2.2 / 7.2 360

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Does this VRS Winch include everything I need for installation?

Unless you're purchasing a specific part, or accessory, VRS winches come in packs ready for installation. This will typically include everything you require for a standard installation to get up and running (leads, bolts, control box, remotes, cable etc). This also includes installation instructions.

How do I know if the winch will fit my vehicle?

While VRS winches are built to global standards and should fit 99% of winch compatible bull bars on the market, there is always the chance yours may be one of the few that it won’t fit. Please check the specifications of the winch, and compare with your vehicle and bar to confirm it will fit. Most of the winches include a blueprint diagram with the winches measurements.
Note: ARB bull bars usually require an Offset Fairlead (click here to view).

What does the IP68 rating of the winch mean?

VRS Winches feature an IP68 water and dust rating (IP Rating).

6 = Totally dust tight. No dust entry all.

8 = Protected from prolonged immersion under water.

The IP rating of a winch is a technical term that indicates how dust and water resistant the winch is. Without going into great detail an IP68 rating means the equipment is suitable for continuous immersion in water under conditions which shall be specified by the manufacturer. Normally, this will mean that the equipment is hermetically sealed. However, with certain types of equipment, it can mean that water can enter but only in such a manner that it produces no harmful effects.

What battery do I need to run my winch?

The minimum battery size to run a 4x4 electric winch from is a 650CCA. A poor power supply could prevent your winch from working and could also cause damage to the winch motor.

How often do I need to service my VRS winch?

We strongly recommend that you service your winch at least once a year especially if the winch is submerged quite often during use. Servicing your winch will help make it last for many years of trouble free use. If you are not able to service it yourself, any auto electrician or 4WD service agent will be able to do this.

If I need to how do I make a warranty claim?

The first step is to go through the Trouble Shoot Guide as the problem may be non-warranty related and easily resolved.
If you are still having problems you can make a warranty claim by emailing a copy of your receipt along with the full fault description to info@vrswinch.com.au. If you need any assistance with your warranty claim please reach out to us at 4x4 Down Under.

VRS - Vehicle Recovery Systems

Keeping You on Track

In a tight spot the VRS winch can be relied upon to deliver fast line speed and powerful pulling power. In the most extreme conditions this high speed, powerful winch has the muscle to haul your vehicle back on track – FAST.  VRS winches and accessories were designed in Australia for the world. This brand will suite the novice four wheel driver right through to the extreme off-roader.

All VRS 4X4 winches are IP68 rated and have double lip seals. Providing you with ultimate water and dust proofing for your winch.

Whether you’re stuck in the mud or trying to climb up a steep hill, the VRS Recovery Gear range has everything you need to get you back on track.

Designed and tested in Australia to the highest standards, all VRS products are suitable for recreational and competition use.
