Boab Poly Diesel Tank Taper | 50 Litre - Fuel Tank
Boab Poly Diesel Tank Taper | 50 Litre - Fuel Tank
Boab Poly Diesel Tank Taper | 50 Litre
Boab Poly Diesel Tank Taper | 50 Litre
Boab Poly Diesel Tank Taper | 50 Litre - Fuel Tank
Boab Poly Diesel Tank Taper | 50 Litre - Fuel Tank
Boab Poly Diesel Tank Taper | 50 Litre

Boab Poly Diesel Tank Taper | 50 Litre

by Boab
SKU FTP50T
Sold out
$355.00
$355.00 - $355.00
$355.00
$309.00
$309.00 - $309.00
$309.00
4x4 Down Under Buy Now Pay Later Options
    WHY SHOP WITH US?
  • ✔ Fast Shipping with Free Insurance
  • ✔ Australian Owned and Operated
  • ✔ Expert Before & After Sales Service
  • ✔ Easy Returns & Full Warranty Support

Poly 50 Litre Diesel Tank with Taper

Poly Diesel Tank 50L Taper Rectangular Universal Fitment - for Ute Tray or Wagon Floor mounting.

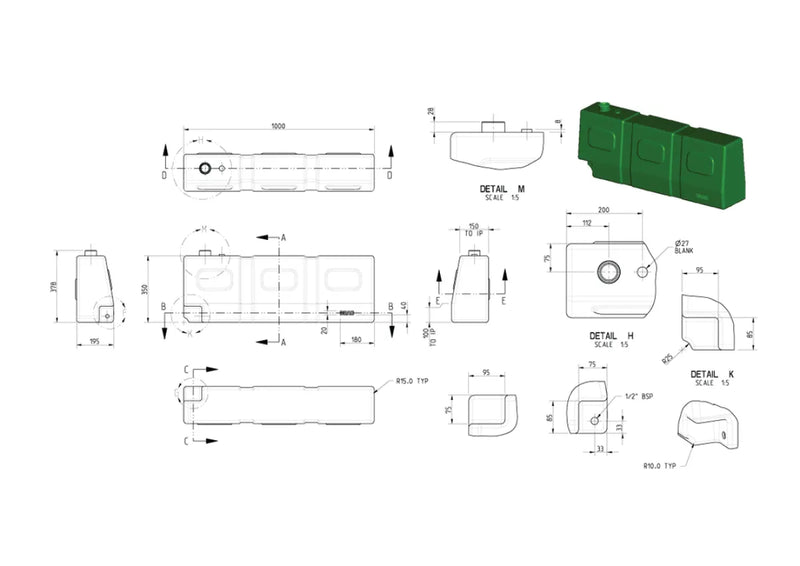

Dimensions: 1000mm wide x 350mm high ( 30mm for cap). Depth tapers from 200mm at the base to 150mm at the top.

The brass outlet fitting is 1/2" BSPT female thread and a hose adaptor to suit 3/8" (10mm) hose is included.

SPECIFICATIONS

  • Item Weight: 5kg
  • Height: 350mm
  • Width: 200mm
  • Depth: 1000mm

Model Number: FTP50T

Frequently Asked Questions

What does 'taper' mean in this tank's design, and why does it matter for installation?

The taper refers to the depth profile, the tank is 200mm deep at the base and narrows to 150mm at the top. This angled shape is practical for ute trays or wagon floors where overhead clearance tightens above a wheel arch or tray rail. It allows the tank to sit flush against a wall or tray floor without needing perfectly squared clearances.

Is this tank designed for ute tray mounting, wagon floor mounting, or both?

Both are intended applications. The FTP50T's tapered profile helps it sit neatly against a tray wall or under a floor section. Straps or brackets are recommended to support the full loaded weight in either installation.

What fittings are included in the box?

The tank comes with a half-inch BSPT brass outlet fitting and a hose adaptor to suit three-eighths inch (10mm) hose. You will need to supply your own fuel hose, mounting hardware, and filler cap setup.

Does this tank come with a filler cap?

Yes, a filler cap in included.

What are the exact dimensions and empty weight?

The FTP50T measures 1000mm long by 350mm high. The depth tapers from 200mm at the base to 150mm at the top. Empty weight is 5kg.

What fuel type is this tank rated for?

This is a diesel auxiliary tank. Like all Boab poly diesel tanks, it is designed and recommended for diesel fuel only.

How does the gravity feed work given the tapered shape, which end should the outlet face?

The brass outlet is positioned at the base end of the tank, the 200mm-deep side. For gravity feed to work correctly, the outlet end should sit at the lowest point of your installation so fuel naturally draws toward it. Orienting the taper correctly during fitment is important for reliable fuel flow.
