Narva 20" EX2 LED Light Bar | Single Row

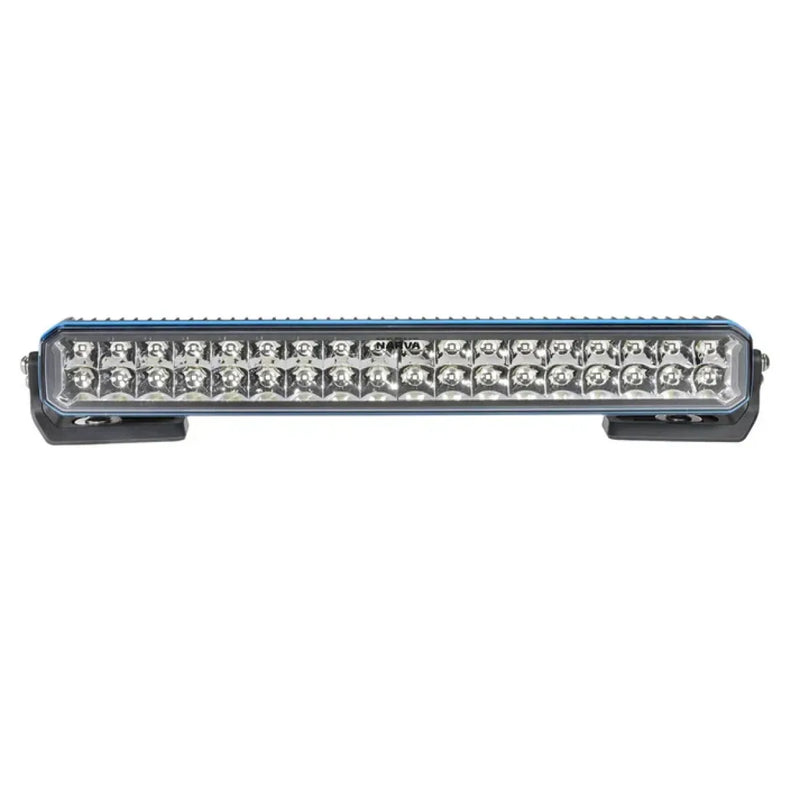

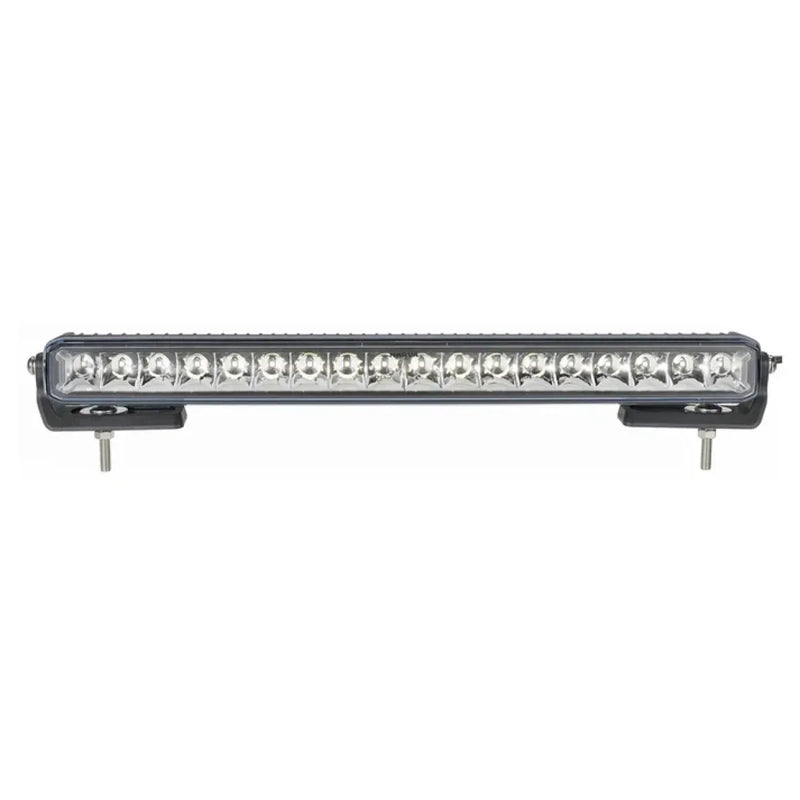

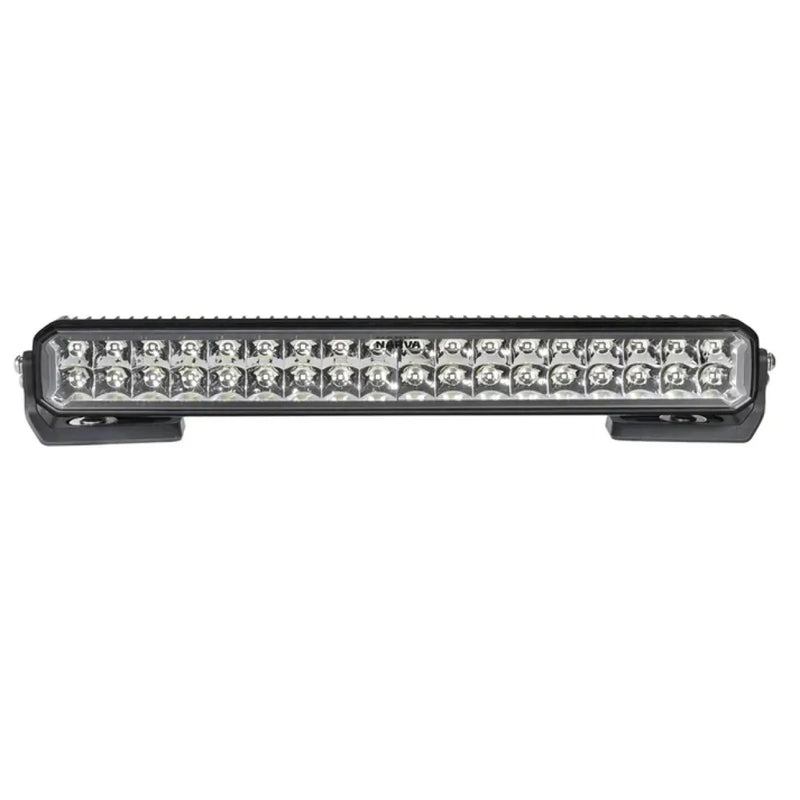

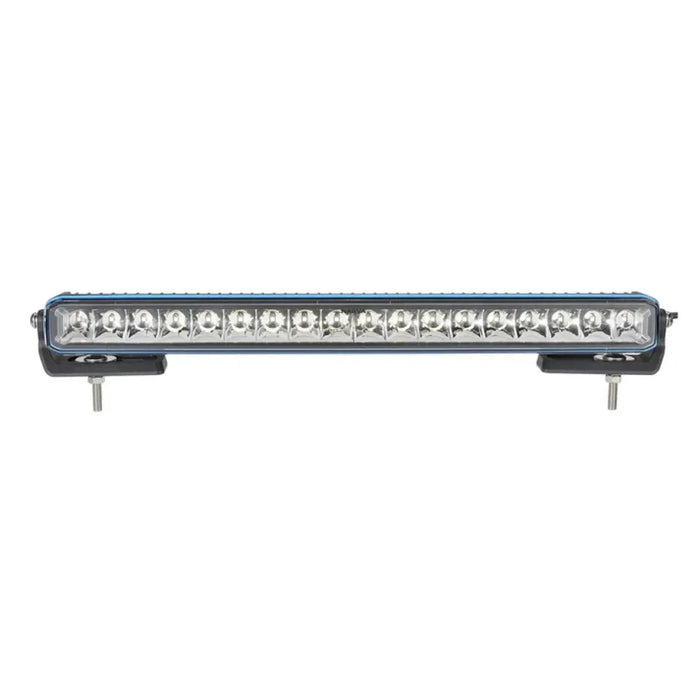

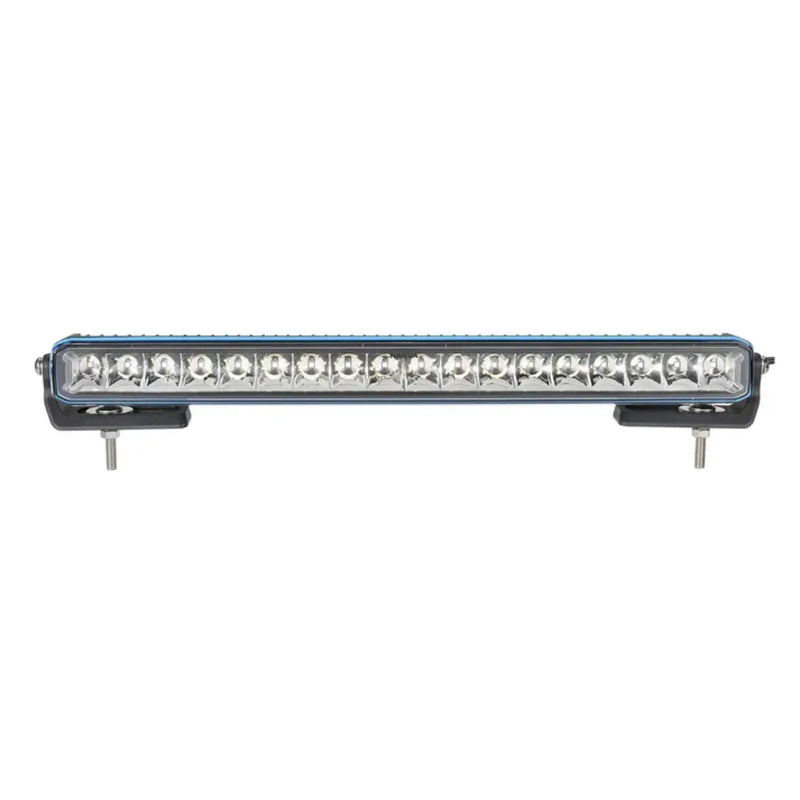

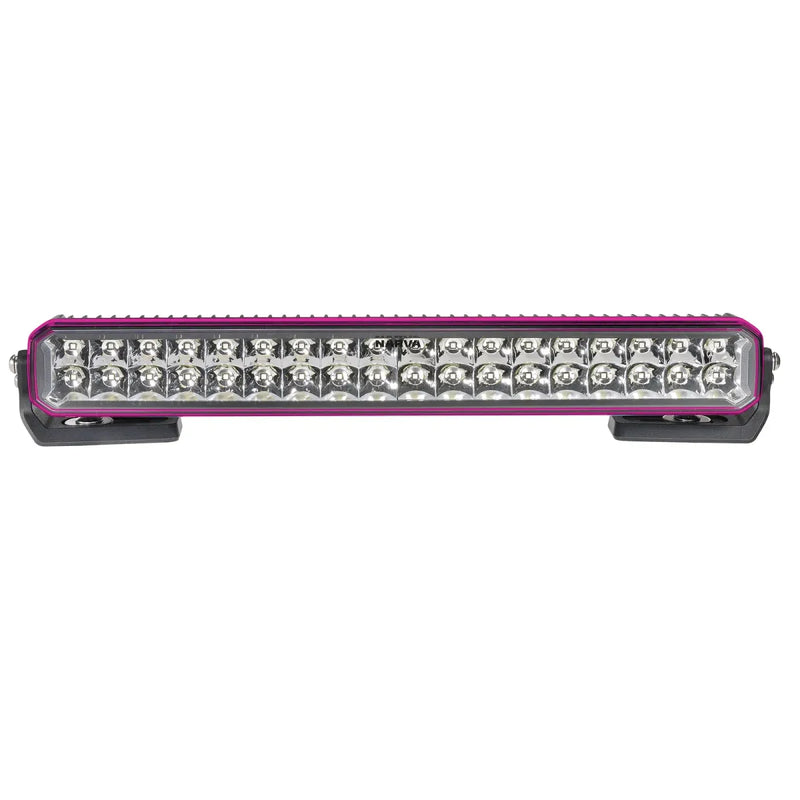

The single row packs 18 x 5W CREE LEDs versus 36 in the double row, delivering 413m beam distance and 50m width at 1 lux, compared to 638m and 86m for the double row. The single row sits slimmer at 71mm tall versus 94mm, making it better suited to installations where height clearance is tight. It also draws less current, 4.4A versus 7.2A at 13.5V. If outright beam reach is the priority, the double row is worth the step up. If low profile and power draw matter more, the single row is the stronger choice.

On most positively-switched 4WDs, yes. Narva's patent-pending internal switching system connects directly to your high beam wire, no loom through the firewall required. You connect three wires: positive to the battery, yellow trigger to the high beam wire, and negative. Negatively-switched vehicles need an external relay. The included pigtail wiring lead handles most installs, so check your vehicle's wiring type before starting.

The 20" Single Row kit includes a black lens protector and pigtail wiring lead. It does not include a full wiring harness, the internal switching system eliminates that requirement for most vehicles. If you have a negatively-switched system or want a dedicated relay-controlled circuit, source a compatible harness separately.

NSW and QLD require an in-cabin switch for aftermarket driving lights and light bars. Other states and territories may also have specific requirements, check your local road rules before fitting. The bar activates automatically with your high beam via the internal switching system, but if your state mandates a separate in-cabin switch, that needs to be added to the circuit.

The 20" single row is 522mm wide and 71mm tall, making it a natural fit for most standard bull bar top rails and roof rack crossbar mounts. Its slimmer profile compared to the double row gives more clearance flexibility in tight mounting positions. Composite brackets and stainless steel hardware with Allen-key beam adjustment are included. Bonnet-mount configurations are not supported.

IP68 covers continuous submersion and IP69K covers high-pressure, high-temperature wash-downs. In practice, the sealing is designed to handle harsh off-road exposure, including creek crossings, mud, red dust and wash-down conditions when correctly installed. The hard-coated polycarbonate lens also resists UV degradation and gravel impact, relevant when you are pushing through scrub or driving on corrugated outback tracks.

The 20" single row draws 4.4A at 13.5V on a 12V system, or 2.2A at 28V on a 24V system, a modest load that sits well within what standard aftermarket wiring can handle. If you are running multiple accessories, calculate your total draw to confirm your circuit is not overloaded.

Narva's 7-year manufacturer warranty covers defects in materials and workmanship. As an Australian brand with a wide dealer network, warranty claims are handled locally through Narva's Australian support channels. IP68 and IP69K ratings are designed to protect against water and dust ingress under normal use when the unit is correctly installed, but warranty claims are still assessed by Narva based on installation, condition and use.
