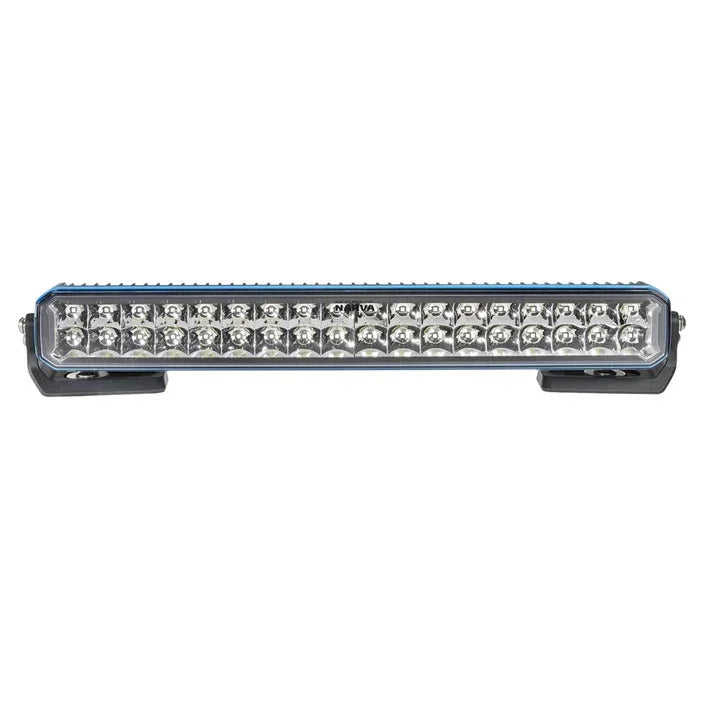

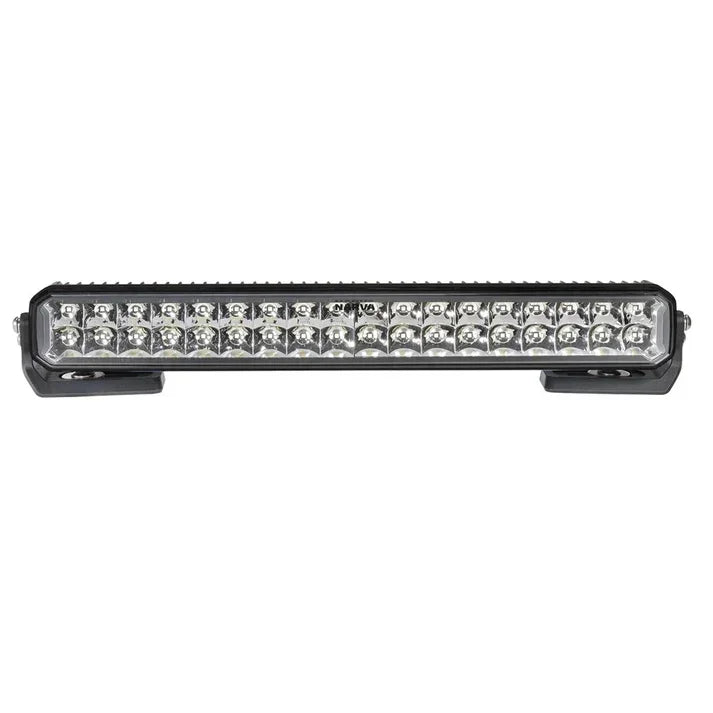

Narva 20" EX2 LED Light Bar | Double Row

The double row packs 36 x 5W CREE LEDs versus 18 in the single row, giving a beam reach of 638m versus 413m at 1 lux. If you are doing serious outback highway driving or fast open-track work, the double row's extra distance is a genuine advantage. The single row throws a wider beam relative to its size and sits just 71mm tall, which can be useful where clearance is tight. The double row is 94mm tall and 531mm wide, so check your mounting position before ordering.

On most positively-switched 4WDs, yes. Narva's patent-pending internal switching system connects directly to your high beam wire, so you only need three connections: positive to the battery, yellow trigger to the high beam wire, and negative. No loom through the firewall is required. Negatively-switched vehicles need an external relay. The included pigtail wiring lead handles most installs, check your vehicle's wiring type before you start.

The 20" Double Row kit includes a black lens protector and pigtail wiring lead. It does not include a full wiring harness, as the internal switching system eliminates that requirement for most vehicles. If you have a negatively-switched system or want a dedicated relay circuit, you will need to source a harness separately.

NSW and QLD currently require an in-cabin switch for aftermarket driving lights and light bars. Other states may also have specific regulations, so check your local road rules before fitting. The bar activates automatically with your high beam via the internal switching system, but if your state requires a separate in-cabin switch, that will need to be added to the circuit.

The 20" double row is 531mm wide and 94mm tall, making it compatible with most standard bull bar top rails and roof rack crossbar mounts. It includes composite brackets and stainless steel hardware with Allen-key beam adjustment. Confirm your bull bar's top rail width and internal clearance before ordering. Bonnet-mount configurations are not supported.

IP68 covers continuous submersion, and IP69K covers high-pressure, high-temperature wash-downs. In practice, the sealing is designed to handle harsh off-road exposure, including creek crossings, mud, red dust and wash-down conditions when correctly installed. The hard-coated polycarbonate lens also resists UV degradation and gravel strikes, which matters when pushing through scrub or running on corrugated outback roads.

The 20" double row draws 7.2A at 13.5V on a 12V system, or 3.5A at 28V on a 24V system. That is a moderate load, well within what standard aftermarket wiring can handle. If you are running multiple accessories, calculate your total draw to make sure you are not overloading the circuit.

Narva backs the EX2 range with a 7-year manufacturer warranty covering defects in materials and workmanship. The IP68 and IP69K ratings are designed to protect against water and dust ingress under normal use when the unit is correctly installed, but warranty claims are still assessed by Narva based on installation, condition and use.
