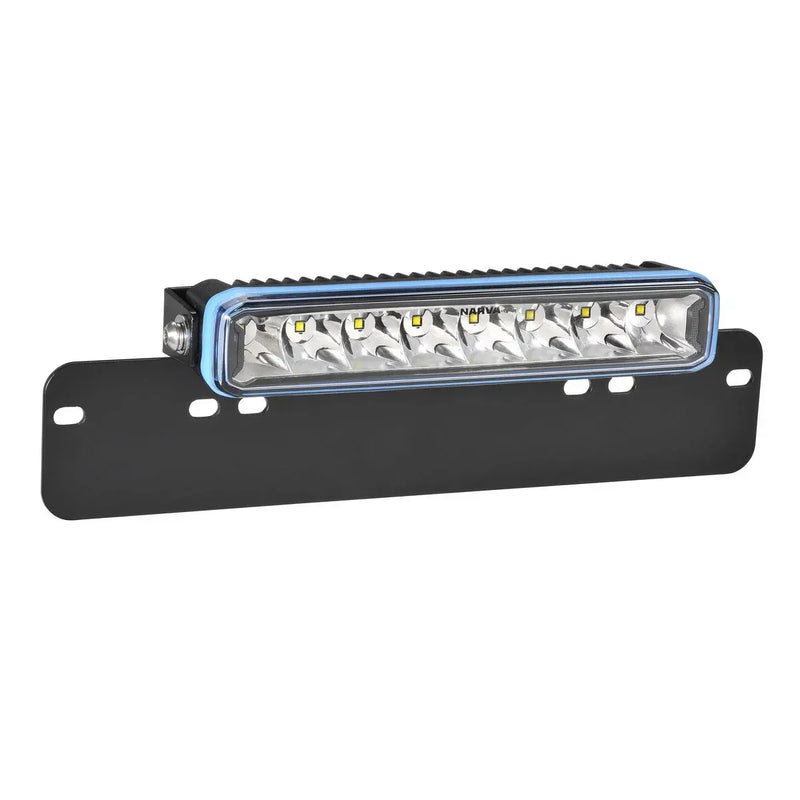

Narva 10" EX2 Light Bar Single Row with Licence Plate

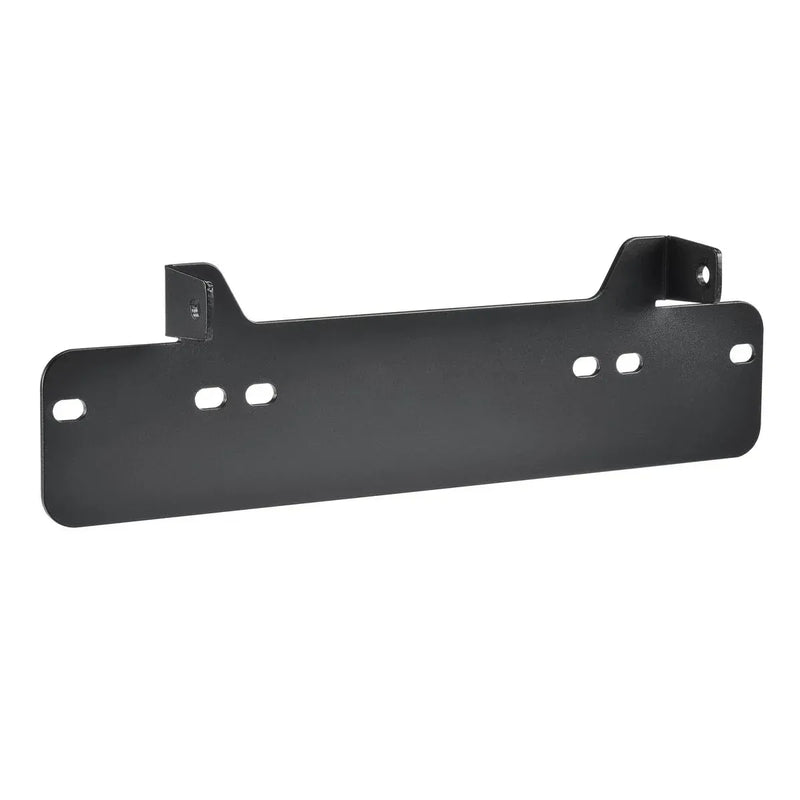

Yes, this bar is specifically designed to sit behind your front number plate. At 268mm wide and 71mm tall, it fits most standard 4WD front plates. Stainless steel hardware, mounting brackets, and a full fused wiring harness are all included, so you have everything needed for the install out of the box without additional purchases.

Yes. Unlike the larger 20" bars that include only a pigtail, the 10" licence plate kit includes a full fused wiring harness. It uses three connections: Red (positive), Yellow (high beam trigger), and Black (negative). Most 4WDs can be wired up without sourcing any additional components.

Yes. The EX2's internal switching system connects to your high beam circuit via the yellow trigger wire, activating the bar automatically when you switch to high beam. On most positively-switched vehicles no relay is needed. Negatively-switched systems will require a relay.

NSW and QLD require an in-cabin switch for aftermarket driving lights. Check your local road rules to confirm requirements in your area. If required, the included wiring harness supports integration of a separate in-cabin switch.

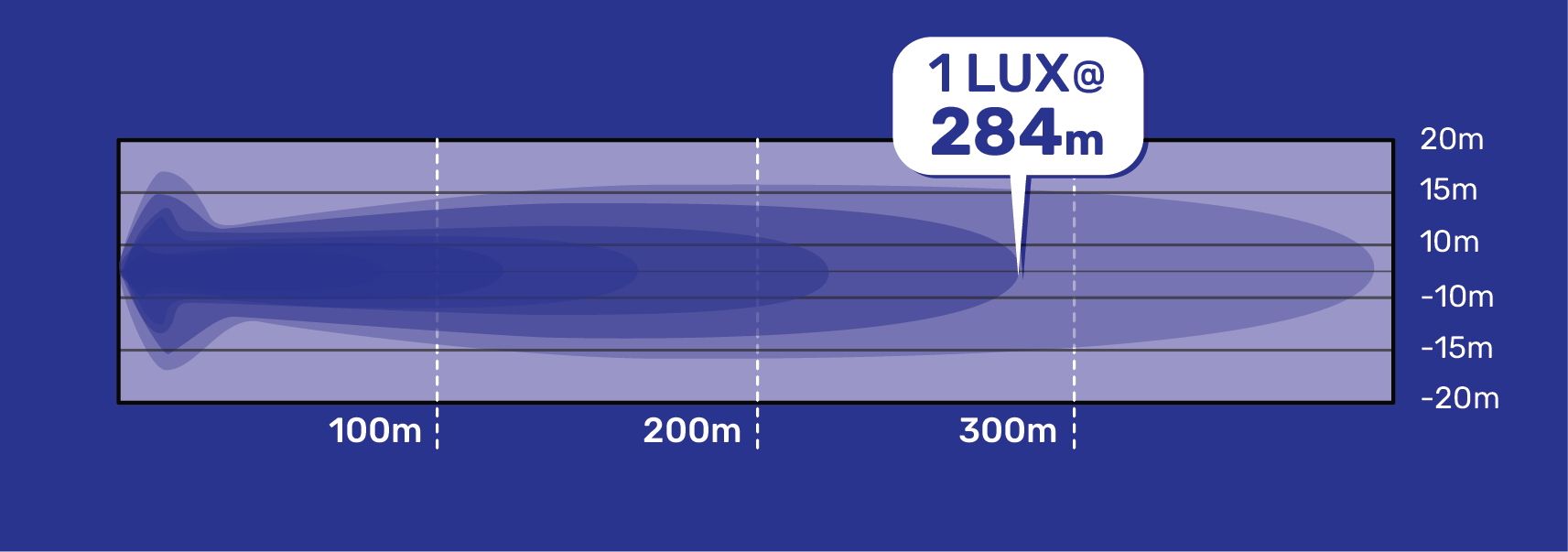

At 1 lux, 284m is the distance where the beam is just detectable, usable light extends well beyond 150m in real-world conditions. For bush tracks, property use, and supplementary forward lighting on touring rigs, the 10" punches well above its size. If you need serious outback highway performance at speed, the 20" bars are more appropriate. But as a low-profile addition behind a number plate, this bar gives meaningful extra reach over stock headlights.

As a supplement to your existing high beams, yes, the 10" adds meaningful reach and fills the lower beam area. It is not a replacement for full-size driving lights on a high-speed outback run, but paired with decent headlights it significantly extends your visual range at moderate speed. Think of it as a smart low-profile addition rather than a standalone outback floodlight.

The kit includes a black lens protector, one Electric Blue trim (fitted to the bar), and one Slate Grey trim. Six additional colours, Sunburst, Volcano, Juiced, Hyper, Bubblegum, and Stealth, can be ordered through narva.com.au at no extra cost, so you can match the bar to your rig's colour scheme.

Narva backs the 10" EX2 with a 7-year manufacturer warranty covering defects in materials and workmanship. IP68 and IP69K sealing is designed to protect against water ingress under normal use when the unit is correctly installed, but warranty claims are still assessed by Narva based on installation, condition and use.
